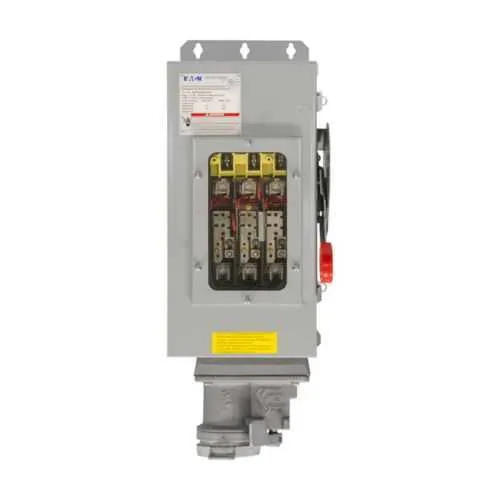

Eaton Crouse-Hinds WSRDW33541CH Interlocked Receptacle - 3R
Part Number: WSRDW33541CH
Manufacturer
Eaton Crouse-Hinds
Part number
WSRDW33541CH
Quick Summary
WSRDW33541CH interlocked receptacle with enclosed safety disconnect from Eaton Crouse-Hinds is a rugged power interlock solution for industrial control panels in demanding environments. That combination addresses a common maintenance challenge: accidental energization during servicing. The unit complies with NEC/CEC standards, uses a NEMA 3R enclosure, and is UL-listed for ordinary/non-hazardous locations, delivering reliable, compliant operation. Built for 30 A services at 480/600 VAC with brass contacts, it integrates smoothly in Arktite WSRD line installations and supports safer, faster panel wiring.
Product Information
Extended Description
WSRDW33541CH Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite WSRD interlocked receptacle with enclosed safety disconnect switch, 30A, Three-wire, three-pole, Brass contacts, Windowed door, Non-fused, Style 1, Cutler-Hammer, Sheet steel, Spring door, 480/600 Vac
Product Name
Eaton Crouse-Hinds series Arktite WSRD interlocked receptacle with enclosed safety disconnect switch
Catalog Number
WSRDW33541CH
UPC
662276535817
Product Length/Depth
8.94 in
Product Height
23.43 in
Product Width
10.21 in
Product Weight
27 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R 12
Enclosure type
With switch
Door style
Windowed
Amperage Rating
30A
Fusing
Non-fused
Grounding style
Style 1
Configuration
Three-wire, three-pole
Material
Sheet steel
Contact material
Brass
Voltage rating
480 Vac/600 Vac
Manufacturer
Cutler-Hammer
Receptacle style
Spring door
Arktite WSRD Interlock with Eaton Switch
Arktite WSR/WSRD Interlock Receptacles catalog page
Arktite WSR/WSRD Interlock Receptacles with Enclosed Disconnect Switches UL certification
Arktite WSR/WSRD Interlock Receptacles with Enclosed Disconnect Switches UL certification
Eaton Specification Sheet - WSRDW33541CH
Feature → Interlocked receptacle with enclosed safety disconnect switch; Business Impact → Enforces safe shutdown and lockout/tagout, reducing the risk of electrical incidents; Application → Ideal for industrial control panels and process automation where safety interlock is mandatory. Feature → 30A, 480/600 VAC rating; Business Impact → Supports high-load applications with robust protection, improving system reliability and reducing overload events; Application → Suitable for power control in heavy equipment and automation drives. Feature → Brass contact material in a sheet steel enclosure; Business Impact → Delivers durable conductivity and corrosion resistance, extending life in harsh environments; Application → Receptacle interfaces in rugged factory floors and outdoor installations. Feature → Windowed door, spring door, and non-fused configuration; Business Impact → Quick visual verification of interlock status and flexible integration with existing safety schemes; Application → Control panels requiring fast fault diagnosis and compliant disconnects. Feature → Compliance and ratings (NEC/CEC, NEMA 3R, ordinary locations) with UL recognition; Business Impact → Streamlines audit trails, reduces certification friction, and supports safe, compliant operation; Application → Facility-wide safety programs and maintenance schedules. Feature → Arktite WSRD family compatibility; Business Impact → Simplifies spare parts planning and installation in established WSRD ecosystems; Application → Retrofit or new-build panel projects requiring consistent interlocked receptacle solutions.
Get a Quick Quote for a Eaton Crouse-Hinds WSRDW33541CH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds WSRDW33541CH?
Enquire Now
FAQs
For mounting, verify panel cutouts and overall dimensions: length 8.94 in, height 23.43 in, width 10.21 in, with a 30A, three-wire, three-pole configuration. Use the sheet steel enclosure with brass contacts and the windowed, spring-loaded door. Ensure a non-fused disconnect and proper grounding (Style 1) to match system requirements and NEC/CEC compliance.
The WSRDW33541CH is rated at 30A with a 480 Vac/600 Vac voltage rating. It uses a three-wire, three-pole configuration and features brass contact material in a sheet steel enclosure. It is non-fused and designed for ordinary locations, aligning with NEC/CEC standards and UL expectations for reliable control panel interlocks.
Yes, it supports outdoor/harsh environments through its NEMA 3R-rated enclosure, part of the Arktite WSRD family. While rated for ordinary/non-hazardous locations, the 3R enclosure provides weather-resistant protection suitable for non-explosive, non-hazardous industrial settings when installed per manufacturer guidance.
The WSRDW33541CH complies with NEC/CEC standards and uses a NEMA 3R enclosure. It is UL-listed and designed for ordinary/non-hazardous locations, ensuring regulatory alignment for industrial control panels and process equipment in safety-conscious facilities.
The enclosed disconnect interlock minimizes accidental energization, reducing maintenance risk and downtime. Brass contacts and a durable sheet steel enclosure extend service life in demanding environments, lowering replacement frequency. Visual confirmation via the windowed door speeds fault diagnosis and supports safer, faster servicing of automated lines.
