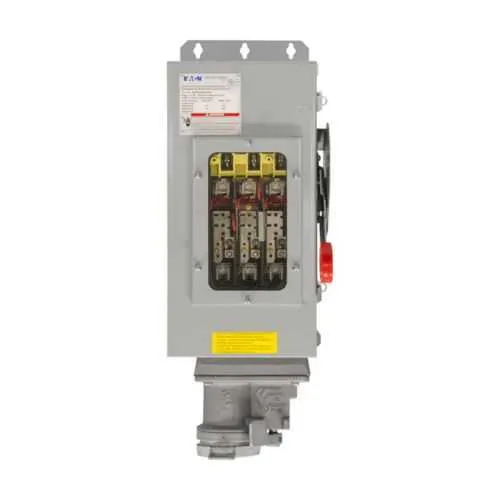

Eaton Crouse-Hinds WSRDW6351CH-S483 Interlock Receptacle 60A
Part Number: WSRDW6351CH-S483
Manufacturer
Eaton Crouse-Hinds
Part number
WSRDW6351CH-S483
Quick Summary
The Eaton Crouse-Hinds WSRDW6351CH-S483 interlock receptacle with enclosed safety disconnect switch delivers reliable control for heavy‑duty industrial equipment. Maintenance teams often battle accidental energization and unpredictable lockout procedures; this design prevents improper energization during servicing, reducing injury risk and unplanned downtime. Built for ordinary/non-hazardous locations, it carries NEC/CEC standards and a NEMA 12 3R enclosure rating, with a 480/600 VAC, 60 A capability. By combining robust protection with easy field wiring and status visibility, it supports faster installation, safer operations, and long-term cost savings in control panels and process lines. This makes it a preferred choice for electrical protection and circuit control in harsh industrial environments.
Product Information
Extended Description
WSRDW6351CH-S483 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite WSRD interlocked receptacle with safety disconnect switch, 60A, Three-wire, three-pole, Brass contacts, Windowed door, Fused, Style 1, Cutler-Hammer, Sheet steel, Spring door, Aux contacts, 480/600 Vac
Product Name
Eaton Crouse-Hinds series Arktite WSRD interlocked receptacle with enclosed safety disconnect switch
Catalog Number
WSRDW6351CH-S483
UPC
662276535886
Product Length/Depth
8.4 in
Product Height
24.6 in
Product Width
10.21 in
Product Weight
27 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12 3R
Enclosure type
With switch
Door style
Windowed
Amperage Rating
60A
Fusing
Fused
Grounding style
Style 1
Configuration
Three-wire, three-pole
Material
Sheet steel
Contact material
Brass
Voltage rating
480 Vac/600 Vac
Manufacturer
Cutler-Hammer
Receptacle style
Spring door
Special features
Factory installed auxiliary contacts
Arktite WSRD Interlock with Eaton Switch
Arktite WSR/WSRD Interlock Receptacles catalog page
Arktite WSR/WSRD Interlock Receptacles with Enclosed Disconnect Switches UL certification
Arktite WSR/WSRD Interlock Receptacles with Enclosed Disconnect Switches UL certification
Eaton Specification Sheet - WSRDW6351CH-S483
Feature: Interlocked receptacle with enclosed safety disconnect switch → Business Impact: Prevents energization during maintenance, improving operator safety and reducing unplanned outages → Application: Control cabinets and process lines requiring lockdown during servicing. The design aligns with Arktite WSRD interlock family for reliable protection in rugged environments. Long-tail keywords: interlocked receptacle with enclosed disconnect, Arktite WSRD, safety disconnect switch. Feature: 60A, 480/600 VAC rating → Business Impact: Supports high‑power motors and equipment with safer fault isolation, reducing wiring stress and arcing risk → Application: Heavy industry motors and line-start applications. Feature: Fused, brass contacts, sheet steel enclosure, windowed door → Business Impact: Enhanced durability and visibility for quick status checks, simplifying maintenance and inspection → Application: Industrial panels exposed to demanding conditions. Feature: Grounding Style 1, Receptacle Style Spring door, Configuration Three-wire three-pole → Business Impact: Streamlined installation and repeatable wiring layouts, minimizing commissioning time and errors → Application: Standardized control circuits in compliant installations. Feature: Factory installed auxiliary contacts → Business Impact: Reduces field wiring and integration time for control logic and signaling → Application: Control circuits requiring feedback and lockout signaling in process lines.
Get a Quick Quote for a Eaton Crouse-Hinds WSRDW6351CH-S483
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds WSRDW6351CH-S483?
Enquire Now
FAQs
Wire the unit as a three‑wire, three‑pole interlocked receptacle with a fused disconnect per NEC/CEC guidelines. Ensure the enclosure is mounted for ordinary location use, connect the brass contacts to the designated supply and load legs, and route the auxiliary contacts to the control circuit for proper interlock signaling. The windowed door aids in visual verification during setup, while factory-installed features reduce field wiring complexity.
Key specs include a 60A amperage rating and a voltage rating of 480/600 VAC, three-wire three-pole configuration, brass contact material, and sheet steel enclosure. The unit is NEMA 12 3R rated for ordinary locations, with a fused design and a spring door receptacle style. These parameters enable safe operation with high‑power equipment and straightforward integration into standard control architectures.
No. The product is specified for Ordinary/Non-Hazardous Locations per its area classification. For environments requiring explosion protection or specialized ratings, a different enclosure and certification would be needed. This model excels in standard process areas, industrial panels, and non-hazardous machine rooms where reliable isolation and visibility are essential.
The WSRDW6351CH-S483 is designed around NEC/CEC standards and carries a NEMA Rating of 12 3R, indicating suitability for ordinary locations. It features a windowed door and factory installed auxiliary contacts, with a fused, safety‑oriented design. For additional certification documentation, refer to UL certification reports and Eaton’s specification sheets linked in the product downloads.
Factory installed auxiliary contacts simplify wiring and reduce maintenance overhead by providing ready-to-use signaling paths. The enclosed safety disconnect and interlock reduce lockout/tagout time, lowering downtime during servicing. The robust sheet steel enclosure and brass contacts deliver durable performance in harsh environments, contributing to lower replacement and repair costs over the product’s lifespan.
