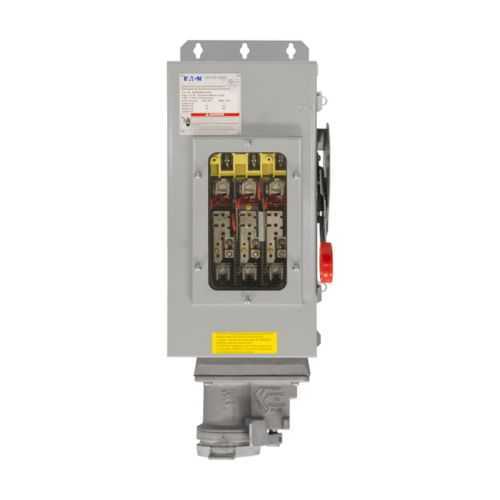

Eaton Crouse-Hinds WSRDW6352CH Interlock Receptacle - 12 3R
Part Number: WSRDW6352CH
Manufacturer
Eaton Crouse-Hinds
Part number
WSRDW6352CH
Quick Summary
WSRDW6352CH interlocked receptacle provides a safe enclosed disconnect for industrial control panels. Maintenance teams struggle with accidental energization during servicing; this design ensures locked-out access and reliable fault isolation. With a NEMA 12 3R enclosure and NEC/CEC compliance, it meets non-hazardous location requirements while delivering rugged performance. The unit’s sheet-steel enclosure and fused switching provide long-term durability, while its windowed door supports quick visual verification and safe operation. For panel builders, the 60A rating and three-wire, four-pole configuration simplify wiring schemes and maintenance planning. Its fused design reduces nuisance trips, while brass contacts and the windowed spring door support reliable current paths and quick, safe servicing.
Product Information
Extended Description
WSRDW6352CH Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite WSRD interlocked receptacle with enclosed safety disconnect switch, 60A, Three-wire, four-pole, Brass contacts, Windowed door, Fused, Style 2, Cutler-Hammer, Sheet steel, Spring door, 480/600 Vac
Product Name
Eaton Crouse-Hinds series Arktite WSRD interlocked receptacle with enclosed safety disconnect switch
Catalog Number
WSRDW6352CH
UPC
662276535794
Product Length/Depth
8.4 in
Product Height
24.6 in
Product Width
10.21 in
Product Weight
27 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12 3R
Enclosure type
With switch
Door style
Windowed
Amperage Rating
60A
Fusing
Fused
Grounding style
Style 2
Configuration
Three-wire, four-pole
Material
Sheet steel
Contact material
Brass
Voltage rating
480 Vac/600 Vac
Manufacturer
Cutler-Hammer
Receptacle style
Spring door
Arktite WSRD Interlock with Eaton Switch
Arktite WSR/WSRD Interlock Receptacles catalog page
Arktite WSR/WSRD Interlock Receptacles with Enclosed Disconnect Switches Canadian certification
Arktite WSR/WSRD Interlock Receptacles with Enclosed Disconnect Switches Canadian certification
Eaton Specification Sheet - WSRDW6352CH
Feature → Business Impact → Application: 60A fused interlocked switching arrangement → Reduces accidental energization during maintenance and supports compliant lockout/tagout practices → Ideal for manufacturing automation control panels where safe access to energized circuits must be prevented. Feature → Business Impact → Application: Enclosure construction with sheet steel and windowed door → Provides rugged durability and visual status indication while resisting field wear in industrial environments → Suitable for control panels in automotive, packaging, and process industries requiring reliable enclosure integrity. Feature → Business Impact → Application: Three-wire, four-pole configuration with Style 2 grounding → Ensures proper fault isolation and robust grounding for safety-critical circuits → Widely used in machine safety circuits and power distribution within heavy equipment. Feature → Business Impact → Application: 480/600 VAC rating with fused protection and spring door receptacle style → Delivers enhanced overcurrent protection and easy access verification for high-voltage panels → Applies to CNCs, conveyors, and process automation enclosures. Feature → Business Impact → Application: NEC/CEC compliance and NEMA 12 3R enclosure rating → Simplifies regulatory approvals and offers dependable performance in ordinary locations → Beneficial for install sites prioritizing compliance and long service life, including food & beverage and general manufacturing.
Get a Quick Quote for a Eaton Crouse-Hinds WSRDW6352CH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds WSRDW6352CH?
Enquire Now
FAQs
WSRDW6352CH is designed for straightforward integration in standard control cabinets. With a sheet-steel enclosure, windowed door for visual confirmation, and a 60A fused disconnect, it supports common panel layouts. Ensure enough clearance for the door and space for service access, particularly in 480/600 VAC environments, and verify enclosure rating aligns with the location’s NEC/CEC requirements.
The interlocked design prevents access to the receptacle contacts while the switch is energized, enforcing lockout during maintenance. The windowed door allows quick status checks without opening the enclosure, and the fused disconnect minimizes arc flash risk by interrupting current prior to servicing. This combination supports compliant, safer servicing of equipment in production lines.
Best for industrial control panels in manufacturing, packaging, and process automation where safe, enclosed disconnect is required. Its 60A rating and three-wire, four-pole configuration make it ideal for high-current control circuits, while the NEMA 12 3R enclosure provides reliable operation in ordinary location environments.
The WSRDW6352CH aligns with NEC/CEC standards and carries a NEMA 12 3R enclosure rating for ordinary/non-hazardous locations. It is designed for compliant operation in industrial panels and supports typical UL/Canadian certifications referenced in the Eaton WSRD interlock family.
Maintenance benefits include reduced nuisance tripping due to fused switching, easier visual verification via the windowed door, and long service life from a sheet-steel enclosure and brass contacts. The robust protection can lower downtime and support a faster return on investment in facilities with frequent servicing and safety compliance requirements.
