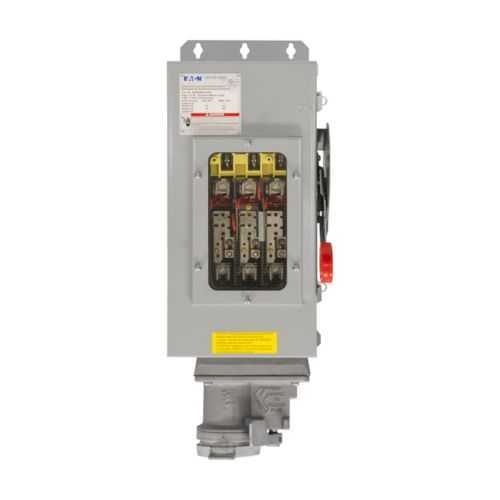

Eaton WSRDW63541CH-S483 Interlocked Receptacle - 60A
Part Number: WSRDW63541CH-S483
Manufacturer
Eaton Crouse-Hinds
Part number
WSRDW63541CH-S483
Quick Summary
WSRDW63541CH-S483 interlocked receptacle with enclosed safety disconnect powers reliable control in industrial enclosures. Operators struggle with accidental re-energization and unsafe disconnections; this unit addresses that by mechanically interlocking the switch. It meets NEC/CEC standards, carries a NEMA 3R-rated enclosure for ordinary locations, and supports 480/600 Vac systems. With a 60 A rating and factory-installed auxiliary contacts, it delivers plug-and-play protection with reduced maintenance costs. The rugged sheet-steel enclosure with brass contacts ensures long-term durability in demanding environments. This solution aligns with procurement goals by reducing downtime, enhancing safety, and simplifying regulatory compliance for power distribution in industrial plants. Its modular design also supports future upgrades without rewiring, improving total cost of ownership.
Product Information
Extended Description
WSRDW63541CH-S483 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite WSRD interlocked receptacle with safety disconnect switch, 60A, 3-wire, 3-pole, Brass contact, Windowed door, Non-fused, Style 1, Cutler-Hammer, Sheet steel, Spring door, Aux contacts, 480/600 Vac
Product Name
Eaton Crouse-Hinds series Arktite WSRD interlocked receptacle with enclosed safety disconnect switch
Catalog Number
WSRDW63541CH-S483
UPC
662276535947
Product Length/Depth
8.4 in
Product Height
24.6 in
Product Width
10.21 in
Product Weight
27 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R 12
Enclosure type
With switch
Door style
Windowed
Amperage Rating
60A
Fusing
Non-fused
Grounding style
Style 1
Configuration
Three-wire, three-pole
Material
Sheet steel
Contact material
Brass
Voltage rating
480 Vac/600 Vac
Manufacturer
Cutler-Hammer
Receptacle style
Spring door
Special features
Factory installed auxiliary contacts
Arktite WSRD Interlock with Eaton Switch
Arktite WSR/WSRD Interlock Receptacles catalog page
Arktite WSR/WSRD Interlock Receptacles with Enclosed Disconnect Switches Canadian certification
Arktite WSR/WSRD Interlock Receptacles with Enclosed Disconnect Switches Canadian certification
Eaton Specification Sheet - WSRDW63541CH-S483
Enclosed safety disconnect switch is a core feature that prevents accidental energization, dramatically improving operator safety and reducing restart incidents in busy lines. This feature translates into measurable downtime reduction and safer changeovers in conveyors and presses, where a single misstep can halt production. Typical applications include control panels and machine enclosures in ordinary locations. 60A amperage rating with three-wire, three-pole configuration delivers robust power control for motors and equipment. Brass contact material and sheet steel enclosure ensure durable, low-resistance connections and long service life; installation remains straightforward with standard Cutler-Hammer compatibility. Windowed door and spring door receptacle style improve visibility and serviceability, while factory installed auxiliary contacts simplify PLC signaling and remote interlocking. For compatibility and installation, the unit supports 480/600 Vac, NEC/CEC compliance, and a NEMA 3R rating, delivering reliable performance in harsh environments. A non-fused configuration provides flexible protection schemes without introducing unnecessary interruptions.
Get a Quick Quote for a Eaton Crouse-Hinds WSRDW63541CH-S483
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds WSRDW63541CH-S483?
Enquire Now
FAQs
The WSRDW63541CH-S483 is a three-wire, three-pole 60A interlocked receptacle rated for 480/600 Vac, featuring a sheet steel enclosure with a windowed door and brass contacts. It is designed for straightforward installation in control panels and machine enclosures, with compatibility to Cutler-Hammer configurations and standard mounting provisions for durable, code-compliant wiring.
The interlocked safety switch physically prevents re-energization while the door is open or during maintenance, eliminating the risk of accidental startup. This reduces injury potential during service, aligns with standard safety practices, and supports safer changeovers in conveyors, presses, and other high-throughput equipment.
Yes. The unit adheres to NEC/CEC standards and is classified for Ordinary/Non-Hazardous locations. It features a NEMA 3R enclosure suitable for indoor and some outdoor environments, providing reliable protection in non-explosive industrial settings.
Factory-installed auxiliary contacts are available, enabling signaling and interlocking with PLCs or safety systems. This enhances control integration and monitoring without aftermarket modification, improving overall safety communication and automation performance.
By preventing unexpected energization, reducing startup errors, and delivering durable sheet steel construction with brass contacts, the unit lowers maintenance costs and downtime. Its plug-and-play assembly and auxiliary contact options streamline integration, translating to faster commissioning and long-term savings in power distribution infrastructure.
