Eaton WSRDW63542CH Receptacle - 60A NEC/CEC

Part Number: WSRDW63542CH
WSRDW63542CH
Manufacturer
Eaton Crouse-Hinds
Part number
WSRDW63542CH
Category

Quick Summary

WSRDW63542CH Receptacle is an interlocked, enclosed disconnect solution for 60A industrial panel applications. Engineers rely on it to prevent energization during maintenance, reducing arc-flash risk and unplanned downtime. This unit carries NEC/CEC compliance with NEMA Rating 12 3R in ordinary/non-hazardous locations, ensuring safe operation in standard environments. The enclosure uses sheet steel construction with brass contacts and a windowed spring door for visual status checks, delivering reliable performance in tight electrical rooms. By pairing compatibility with Cutler-Hammer style installations and a 480/600 Vac rating, it supports scalable protection in automation, power distribution, and panel wiring projects.

Product Information

Extended Description

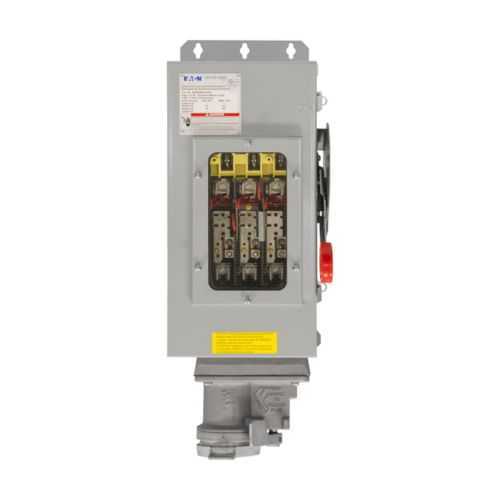

WSRDW63542CH Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite WSRD interlocked receptacle with enclosed safety disconnect switch, 60A, Three-wire, four-pole, Brass contacts, Windowed door, Non-fused, Style 2, Cutler-Hammer, Sheet steel, Spring door, 480/600 Vac
Product Name
Eaton Crouse-Hinds series Arktite WSRD interlocked receptacle with enclosed safety disconnect switch
Catalog Number
WSRDW63542CH
UPC
662276535855
Product Length/Depth
8.4 in
Product Height
24.6 in
Product Width
10.21 in
Product Weight
27 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12 3R
Enclosure type
With switch
Door style
Windowed
Amperage Rating
60A
Fusing
Non-fused
Grounding style
Style 2
Configuration
Three-wire, four-pole
Material
Sheet steel
Contact material
Brass
Voltage rating
480 Vac/600 Vac
Manufacturer
Cutler-Hammer
Receptacle style
Spring door
Arktite WSRD Interlock with Eaton Switch Arktite WSR/WSRD Interlock Receptacles catalog page Arktite WSR/WSRD Interlock Receptacles with Enclosed Disconnect Switches Canadian certification Arktite WSR/WSRD Interlock Receptacles with Enclosed Disconnect Switches Canadian certification Eaton Specification Sheet - WSRDW63542CH
Feature: Enclosed safety disconnect switch integrated with interlock → Business Impact: Prevents accidental energization during maintenance, improving operator safety and reducing downtime → Application: 60A control panels in Arktite enclosures. Feature: Three-wire, four-pole configuration → Business Impact: Ensures proper grounding and fault protection, simplifying wiring and test procedures → Application: Industrial automation and machine safety circuits. Feature: Brass contact material → Business Impact: Provides reliable, low-resistance connections with good wear resistance in rugged environments → Application: High-current connections in 480/600 Vac systems. Feature: Windowed door and spring door design → Business Impact: Facilitates quick visual verification of status without opening the enclosure → Application: Maintenance-heavy environments with frequent inspections. Feature: Sheet steel enclosure and non-fused design → Business Impact: Robust housing plus simplified replacement logistics lowers maintenance costs and stocking requirements → Application: Non-hazardous locations in manufacturing and processing plants. Feature: Grounding style Style 2 and NEMA 12 3R rating → Business Impact: Strong protection against dust, water ingress, and reliable grounding, supporting compliance and safety → Application: Standard electrical protection in industrial panels. Feature: Compatibility with Cutler-Hammer style installations → Business Impact: Reduces install time and error, enabling faster project delivery and easier upgrades → Application: Retrofit projects and new builds in automation and power distribution.

Get a Quick Quote for a Eaton Crouse-Hinds WSRDW63542CH

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds WSRDW63542CH? Enquire Now

FAQs

Yes. The WSRDW63542CH is designed as part of the Arktite WSRD interlock family and uses standard sheet-steel enclosure construction. It accommodates typical mounting within Arktite enclosures and follows the three-wire, four-pole configuration for straightforward integration in standard control panels. Verify enclosure dimensions (8.4 in depth, 24.6 in height, 10.21 in width) for a precise fit.
The unit is a 60A receptacle with a three-wire, four-pole configuration, designed for 480 Vac to 600 Vac. It uses brass contact material and a non-fused design with a Style 2 grounding scheme and a windowed spring door for status visibility, making it suitable for non-hazardous locations.
This product is ideal for industrial automation panels, machine safeguarding enclosures, and power distribution in manufacturing facilities. The enclosed disconnect switch prevents energization during maintenance, reducing risk and downtime, while the interlock ensures only authorized operation, supporting safer, compliant panel wiring.
The WSRDW63542CH aligns with NEC/CEC standards and carries a NEMA 12 3R rating suitable for ordinary/non-hazardous locations. It does not fuse, simplifying servicing, while maintaining compliance for standard industrial environments. This helps with regulatory acceptance and reduces the risk of non-compliance in panel installations.
Key factors include an enclosed safety disconnect that minimizes energization errors, a windowed door for quick visual checks, and a robust sheet-steel enclosure that withstands rugged conditions. The non-fused design lowers spare-parts requirements, while the 60A rating supports scalable protection with easy replacement of worn components, delivering measurable uptime gains.
