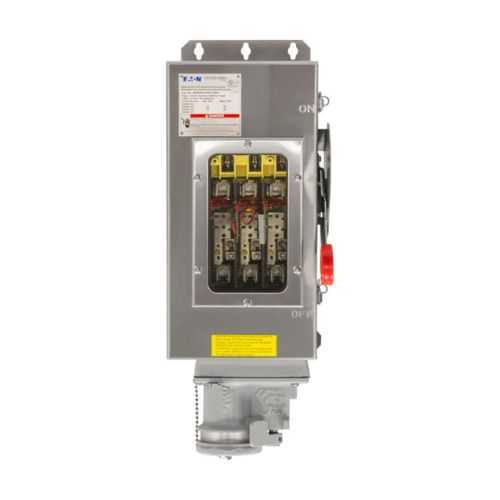

Eaton Crouse-Hinds WSRDW63542CH-S901 Interlocked Receptacle - 4X
Part Number: WSRDW63542CH-S901
Manufacturer
Eaton Crouse-Hinds
Part number
WSRDW63542CH-S901
Quick Summary
The Eaton Crouse-Hinds WSRDW63542CH-S901 interlocked receptacle provides safe isolation for industrial equipment enclosures. Maintenance teams often struggle with accidental energization and inconsistent lockout procedures, which lead to unplanned downtime and safety risks. This unit carries a NEMA 4X enclosure rating and NEC/CEC compliance, making it suitable for ordinary/non-hazardous locations while delivering corrosion resistance in harsh environments. Built from 304 stainless steel with brass contacts and a windowed, spring-loaded door, it supports a 60A, 480/600 Vac three-wire four-pole configuration. The combination of robust hardware and clear interlock logic simplifies installation, reduces wiring errors, and accelerates routine inspections, delivering measurable safety and uptime improvements for panel builders and end users.
Product Information
Extended Description
WSRDW63542CH-S901 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite WSRD interlocked receptacle with enclosed safety disconnect switch, 60A, 3-wire, 4-pole, Brass contacts, Windowed door, Non-fused, Style 2, Cutler-Hammer, 304 stainless steel, Spring door, 480/600 Vac
Product Name
Eaton Crouse-Hinds series Arktite WSRD interlocked receptacle with enclosed safety disconnect switch
Catalog Number
WSRDW63542CH-S901
UPC
662276536579
Product Length/Depth
8.4 in
Product Height
24.6 in
Product Width
10.21 in
Product Weight
27 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X 4
Enclosure type
With switch
Door style
Windowed
Amperage Rating
60A
Fusing
Non-fused
Grounding style
Style 2
Configuration
Three-wire, four-pole
Material
304 stainless steel
Contact material
Brass
Voltage rating
480 Vac/600 Vac
Manufacturer
Cutler-Hammer
Receptacle style
Spring door
Arktite WSRD Interlock with Eaton Switch
Arktite WSR/WSRD Interlock Receptacles catalog page
Arktite WSR/WSRD Interlock Receptacles with Enclosed Disconnect Switches Canadian certification
Arktite WSR/WSRD Interlock Receptacles with Enclosed Disconnect Switches Canadian certification
Eaton Specification Sheet - WSRDW63542CH-S901
Feature: Integrated enclosed safety disconnect switch with interlock mitigates accidental energization, improving operator safety and compliance. Business impact: Reduces risk of injury, supports Lockout/Tagout procedures, and minimizes downtime during maintenance. Application: Best suited for control panels and outdoor enclosures in heavy-industrial settings. The feature translates to faster MTBF assessments and fewer rework incidents. Feature: 60A, 3-wire, 4-pole configuration with brass contacts and 304 stainless steel enclosure delivers durable, low-resistance power paths. Business impact: Enhances motor control reliability and reduces contact heating, cutting energy loss during peak loads. Application: Ideal for motors, pumps, and process equipment in demanding environments. Feature: Windowed door with spring door design and enclosure rating of NEMA 4X supports corrosion resistance and easy visual verification. Business impact: Enables quick status checks without compromising protection; supports washdown or humid locations. Application: Process lines and outdoor installations requiring robust enclosure integrity. Feature: Non-fused, Style 2 grounding and 480/600 Vac rating provide scalable protection for multi-branch circuits. Business impact: Simplifies compliance with NEC/CEC standards while enabling modular expansion. Application: Suitable for facility-wide protection schemes and retrofit projects. Feature: Material and construction—304 stainless steel and brass contacts deliver long service life with minimal maintenance. Business impact: Lower total cost of ownership through reduced replacement cycles and predictable performance. Application: Harsh environments, chemical plants, and outdoor installations where corrosion resistance matters. This combination of features reflects real-world performance, aligning with industry expectations for Arktite WSRD interlock receptacles and enabling faster installation, safer operation, and measurable uptime improvements.
Get a Quick Quote for a Eaton Crouse-Hinds WSRDW63542CH-S901
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds WSRDW63542CH-S901?
Enquire Now
FAQs
Install with the 60A three-wire, four-pole configuration, ensuring the enclosure is prepared for a windowed, spring-door receptacle. Verify proper grounding (Style 2) and secure all connections before engaging the interlock. Follow Lockout/Tagout procedures during maintenance and test the switch operation after installation for safe energization control.
Key specs include 60A amperage rating, three-wire four-pole configuration, 480/600 Vac voltage, 304 stainless steel enclosure, brass contact material, windowed door, non-fused fusing, Style 2 grounding, and NEMA 4X enclosure rating. Receptacle is designed for ordinary/non-hazardous locations and includes an enclosed safety disconnect switch.
Yes. It is certified for Ordinary/Non-Hazardous locations and carries NEC/CEC compliance with a NEMA 4X enclosure, providing reliable protection in typical industrial environments without requiring hazardous-location ratings.
The unit adheres to NEC/CEC standards and features a NEMA 4X rated enclosure for corrosion resistance. It is designed for rugged industrial applications and aligns with arktite interlock receptacle practices, ensuring safe operation and maintenance efficiency.
The interlocked design reduces accidental energization, improving safety and reducing downtime. Durable 304 stainless steel construction and brass contacts extend service life, lowering replacement costs. Easy maintenance cycles and compliance with NEC/CEC further support predictable performance and a favorable total cost of ownership in high-demand facilities.
