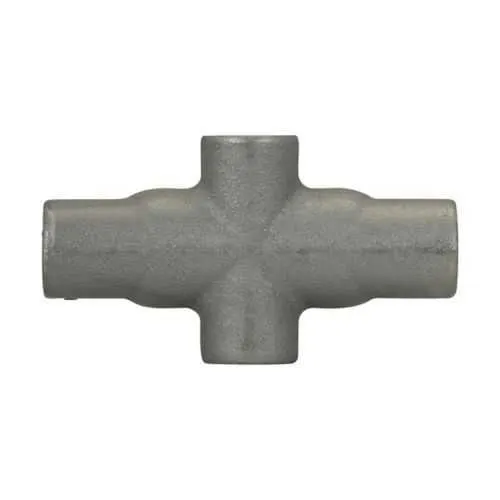

Eaton X17 Condulet Form 7 Conduit Outlet - NEMA 12
Part Number: X17
Quick Summary
Eaton X17 Condulet Form 7 conduit outlet body is a rugged enclosure designed for 1/2 in conduits in ordinary locations. Field wiring teams often contend with moisture, dust, and misrouting, which can drive downtime and rework. This Form 7 outlet body provides NEC/CEC compliance, a NEMA 12 rating, and the corrosion resistance of Feraloy iron alloy to extend service life. It is designed for straightforward installation and long-term reliability, integrating smoothly with Form 7 accessories and standard conduit fittings to speed panel builds and reduce installation risk.
Product Information
Extended Description
X17 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, X shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
X17
UPC
782274745404
Product Length/Depth
5.63 in
Product Height
3.31 in
Product Width
1.75 in
Product Weight
1.53 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
X
Trade size
1/2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers Canadian certification
Condulet Form 7 Conduit Outlet Bodies and Covers Canadian certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Condulet Form 7 Industrial Grade Conduit Bodies
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Feraloy iron alloy construction. Business Impact: Superior strength and corrosion resistance lower replacement costs in harsh industrial environments. Application: Ideal for factory floors and outdoor-rated indoor applications where durability matters. Feature: X-shaped Form 7 geometry. Business Impact: Easier wire pulling and faster field terminations, reducing labor time by minutes per installation. Application: Control panels and equipment enclosures requiring reliable 1/2 in conduit terminations. Feature: 1/2 in trade size compatibility. Business Impact: Maximizes compatibility with standard 1/2 in conduits and accessories, streamlining procurement. Application: Equipment wiring in compact panels and localized junctions. Feature: NEMA 12 rating with NEC/CEC compliance. Business Impact: Meets rigorous enclosure standards for ordinary locations, lowering risk of moisture ingress and noncompliance penalties. Application: Indoor industrial environments with dust and light moisture exposure. Feature: Form 7 conduit bodies and installation documentation. Business Impact: Clear guidance reduces commissioning time and errors, improving first-pass acceptance. Application: System integrators deploying Form 7 families across multiple panels.
Get a Quick Quote for a Eaton Crouse-Hinds X17
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds X17?
Enquire Now
FAQs
The X17 is designed for straightforward mounting to Form 7-compatible fittings. Begin by aligning with the enclosure opening, insert the 1/2 in conduit, and secure using the built-in fasteners. Refer to IF 863 installation sheets for recommended wire pulling techniques to minimize insulation damage and ensure compliant termination. Using these steps reduces installation time and improves pull efficiency in crowded panels.
NEMA 12 indicates enclosure protection suitable for ordinary locations with dust and non-hazardous moisture exposure, typical of indoor industrial environments. Combined with NEC/CEC compliance, this helps ensure electrical safety, reliability, and regulatory alignment for general-purpose wiring in control panels and equipment housings.
Yes. The X17 is specifically designed for Form 7 configurations using 1/2 in conduits, delivering easy access for wiring, compatibility with standard fittings, and robust protection against dust and moisture in ordinary locations. It pairs well with Form 7 accessories to support scalable panel layouts.
Key certifications and standards include NEC/CEC compliance and NEMA 12 rating. These specify enclosure performance in ordinary locations, ensuring safety and regulatory alignment for typical indoor industrial use. The UL certification references in the data support Canadian and other regional compliance expectations.
The Feraloy iron alloy construction provides durable, corrosion-resistant enclosure life, reducing replacement frequency. Its compatibility with Form 7 catalogs and installation guides helps minimize commissioning time, lowering labor costs. Overall, expect lower maintenance intervals and a lower TCO in standard industrial environments.
