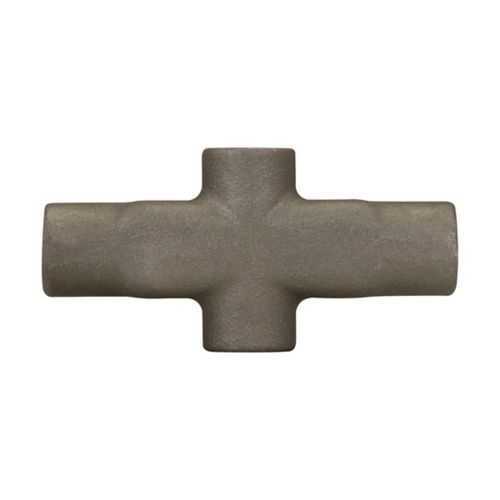

Eaton Crouse-Hinds X19 Condulet Mark 9 Conduit Outlet Body - NEMA 12
Part Number: X19
Quick Summary
Condulet Mark 9 conduit outlet body X19 by Eaton Crouse-Hinds enables rugged 1/2 inch conduit terminations inside industrial enclosures. Installing durable, corrosion-resistant bodies without added weight or complex sealing has been a persistent challenge for panel builders. UL-certified, NEC/CEC compliant, and rated for NEMA 12 ordinary locations, this Condulet delivers reliability across control panels and field installations. Designed for fast, predictable wiring and long service life, it helps minimize maintenance costs while supporting scalable automation wiring schemes. Its copper-free aluminum construction reduces weight and improves corrosion resistance in harsh plant environments.
Product Information
Extended Description
X19 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body, Copper-free aluminum, X shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
Catalog Number
X19
UPC
782274745602
Product Length/Depth
5.69 in
Product Height
2.89 in
Product Width
1.75 in
Product Weight
0.54 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
X
Trade size
1/2"
Material
Copper-free aluminum
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Mark 9 Conduit Outlet Bodies UL certification
Condulet Mark 9 Conduit Outlet Bodies UL certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Eaton Specification Sheet - X19
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Copper-free aluminum construction provides a durable, lightweight conduit body that reduces handling strain on installation teams. Benefit: Lower project weight translates to easier lifting in crowded switchgear rooms and safer field deployments. Application: Ideal for indoor industrial enclosures in automation lines where frequent wiring is needed and weight is a concern. Feature: X-shaped Mark 9 design with 1/2 inch trade size. Benefit: Simplifies alignment and wiring reach, improving installation speed and reducing misrouting. Application: Suitable for rapid wiring in panel assemblies and equipment where space is tight. Feature: NEMA 12 rating and Ordinary/Non-Hazardous Locations. Benefit: Provides reliable dust and water resistance in standard manufacturing environments, supporting compliance and uptime. Application: Control panels, machine enclosures, and process equipment across automation lines. Feature: Compact dimensions 5.69 in length, 2.89 in height, 1.75 in width, 0.54 lb weight. Benefit: Space-efficient footprint eases mounting in crowded enclosures and reduces overall panel size. Application: Retrofit projects and new builds where enclosure real estate is premium. Feature: Compatibility with Condulet Mark 9 catalog and installation resources (IF 964). Benefit: Streamlined procurement and documented best practices minimize field errors and warranty risk. Application: Industrial plants and OEM wiring harnesses that follow Eaton’s installation guidelines. Feature: Material and finish tuned for durability in ordinary locations. Benefit: Long-term corrosion resistance lowers maintenance costs and replacement cycles. Application: Harsh but non-hazardous environments typical of manufacturing floors and assembly lines.
Get a Quick Quote for a Eaton Crouse-Hinds X19
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds X19?
Enquire Now
FAQs
X19 is a Form 9 Condulet Mark 9 conduit outlet body designed specifically for 1/2 inch trade size conduits. It uses copper-free aluminum with the X-shaped body and mounts to standard Condulet hardware. For best results, pair with Eaton's IF 964 installation sheets and follow NEC/CEC guidelines for ordinary locations. The assembly is compatible with Mark 9 catalog patterns and supports quick field wiring with its accessible interior.
Key specifications for X19 include a length of 5.69 in, height of 2.89 in, width of 1.75 in, and weight of 0.54 lb. It is made from copper-free aluminum, features an X-shaped body for 1/2 inch trade size, carries a NEMA 12 rating, and is intended for ordinary/non-hazardous locations under NEC/CEC standards. UPC for reference is 782274745602, aiding inventory and procurement accuracy.
X19 is well-suited for industrial automation environments, control panels, machine enclosures, and process equipment in non-hazardous locations. Its lightweight copper-free aluminum construction and NEMA 12 protection make it ideal for plant floors, assembly lines, and equipment bays where reliable termination and ease of maintenance are valued.
X19 carries NEC/CEC compliance and a NEMA 12 rating for ordinary locations, with UL certification supporting safety claims. Verification can be done via Eaton’s official product pages and UL certification listings referenced in Eaton’s Condulet Mark 9 documentation. Always cross-check with local codes and product datasheets when planning installations.
Using X19 can reduce installation time due to its compact form and straightforward mounting compatible with Mark 9 catalog hardware. The copper-free aluminum construction lowers weight and improves corrosion resistance, reducing handling risk and long-term maintenance costs. Together, these factors contribute to lower total cost of ownership in ordinary-location panel and enclosure projects.
