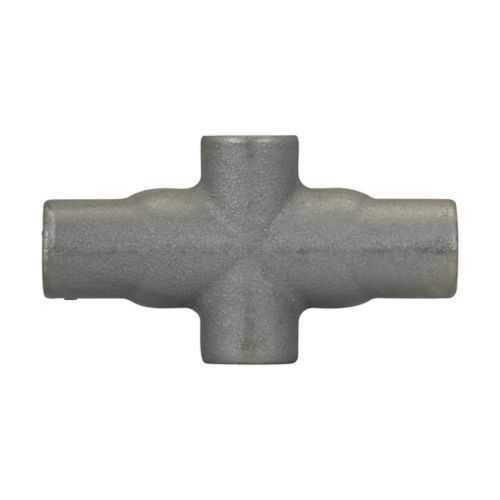

Eaton Crouse-Hinds X27 Condulet Form 7 - NEMA 12
Part Number: X27
Quick Summary
The X27 Condulet Form 7 conduit outlet body provides rugged conduit termination for 3/4 in systems in industrial control panels. Engineers often struggle with space constraints, corrosion resistance, and mounting compliance in tight electrical rooms. This form 7 housing carries a NEMA 12 rating, aligns with NEC/CEC standards, and is UL-certified for metallic conduit outlet bodies. Designed to pair with Eaton Condulet accessories, it simplifies installation, reduces field wiring time, and supports scalable panel builds. With Feraloy iron alloy construction and an X-shaped body, it delivers durability in ordinary locations and helps control entry points for dust and moisture. This translates to lower maintenance costs and faster depot-to-floor commissioning for panel builders.
Product Information
Extended Description
X27 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, X shape, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
X27
UPC
782274745800
Product Length/Depth
6.25 in
Product Height
3.5 in
Product Width
2 in
Product Weight
1.93 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
X
Trade size
3/4"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Eaton Specification Sheet - X27
Eaton Specification Sheet - X27
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature → Business Impact → Application: Feraloy iron alloy construction provides superior corrosion resistance and robust durability, extending the life of conduit outlet bodies in ordinary locations and reducing maintenance cycles for industrial panels. Practical application includes control cabinets in non-hazardous environments where reliability and long service life are critical. Feature → Business Impact → Application: X shape and Form 7 geometry optimize internal volumes for 3/4 in conduit runs, enabling predictable wire fill and easier wire pulling, which shortens installation time on the plant floor and lowers labor costs in panel builds. Feature → Business Impact → Application: 6.25 in length, 3.5 in height, and 2 in width deliver a compact footprint that fits tight enclosures while preserving access to terminations, making retrofits and new installs less invasive. Feature → Business Impact → Application: NEMA 12 enclosure rating and NEC/CEC compliance provide immediate risk mitigation for non-hazardous locations, reducing compliance checks and accelerating procurement decisions. Feature → Business Impact → Application: UL-listed Form 7 components with recognized certifications support vendor qualification processes and simplify quality assurance for maintenance teams. Feature → Business Impact → Application: Compatibility with Eaton Condulet accessory families and installation manuals, including IF 964 guidance, delivers a proven installation workflow that minimizes errors during wiring and assembly.
Get a Quick Quote for a Eaton Crouse-Hinds X27
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds X27?
Enquire Now
FAQs
The X27 is a Form 7 conduit outlet body designed to route conductors between sections of conduit in industrial control panels. It supports 3/4 in trade-size conduits and provides durable enclosure protection with a NEMA 12 rating, ensuring reliable wiring termination in ordinary, non-hazardous locations.
Yes. The X27 adheres to NEC/CEC standards and is UL-listed for metallic conduit outlet bodies, aligning with common regulatory requirements for industrial electrical installations and simplifying compliance checks during audits and acceptance testing.
The X27 is designed to integrate with Eaton’s Condulet accessory ecosystem, enabling seamless use of corresponding covers and accessories. Installation guidance references IF 964 for wire pulling, helping technicians plan routes, minimize bending and optimize pull lengths, which reduces installation time.
Recommended applications are non-hazardous, ordinary-location enclosures in industrial environments. It features a NEMA 12 rating, NEC/CEC compliance, and a 3/4 inch trade size, making it suitable for secure wiring terminations in control panels, machines, and process equipment.
The Feraloy iron alloy construction provides long-term corrosion resistance, reducing replacement frequency and maintenance costs. Its compact form and compatibility with Condulet accessories speed up commissioning, delivering faster project completion and a lower total cost of ownership for panel builders.
