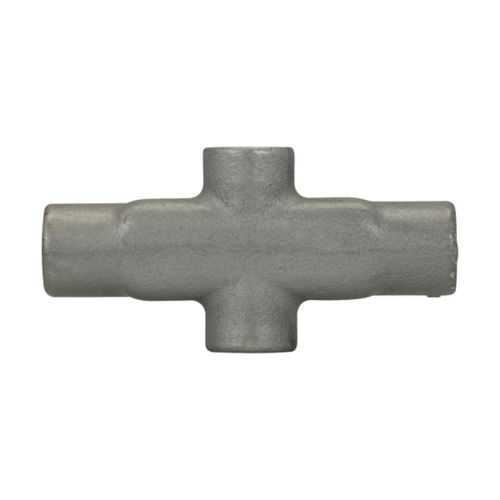

Eaton Crouse-Hinds X38 Condulet Form 8 conduit outlet body - NEMA 12
Part Number: X38
Quick Summary
The Eaton Crouse-Hinds X38 Condulet Form 8 conduit outlet body is designed for reliable 1-inch conduit terminations in industrial enclosures. Maintenance downtime and corrosion risk slow projects and drive lifecycle costs higher. Featuring NEC/CEC compliance and a NEMA 12 rating, it supports safe, code-compliant wiring in ordinary locations. Its 1 in trade size and Feraloy iron alloy body deliver strong durability with installation flexibility. Its form factor and dimensions align with standard forms for 1\" conduits, reducing field guesswork during panel installations. Additionally, installation resources, including IF 964 wire pulling guidance and specification sheets, streamline commissioning and ongoing maintenance. This combination of rugged build and industry-aligned documentation supports faster ROI through lower downtime.
Product Information
Extended Description
X38 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body, Feraloy iron alloy, X shape, 1"
Product Name
Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body
Catalog Number
X38
UPC
782274746203
Product Length/Depth
7.31 in
Product Height
3.5 in
Product Width
2.25 in
Product Weight
2.85 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
X
Trade size
1"
Material
Feraloy iron alloy
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Form 8 Conduit Outlet Bodies Canadian certification
Condulet Form 8 Conduit Outlet Bodies Canadian certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Eaton Specification Sheet - X38
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
The X38 Condulet Form 8 conduit outlet body uses a Feraloy iron alloy construction to deliver exceptional mechanical strength and corrosion resistance in tough industrial environments. This translates to longer service life and lower maintenance costs across conduit runs, reducing unplanned downtime. In panel installations and equipment rooms, the rugged material minimizes field damage during handling and wiring. Form 8 X-shaped geometry with a 1 inch trade size enables versatile routing and cleaner pull paths, reducing bending stress and improving overall wiring efficiency. The compact footprint—7.31 inches in depth, 3.5 inches in height, and 2.25 inches in width—preserves panel space while maintaining internal conductor capacity, with a manageable 2.85 lb weight for easier site handling. Rated NEMA 12 and NEC/CEC-aligned, the unit supports code-compliant operation in ordinary locations and cross-border installation scenarios. Availability of installation resources, including IF 964 wire-pulling guidance and the Eaton X38 specification sheet, accelerates commissioning and reduces start-up risk. Compatibility with standard Condulet accessories further enables scalable, code-compliant wiring networks across facilities.
Get a Quick Quote for a Eaton Crouse-Hinds X38
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds X38?
Enquire Now
FAQs
Installation considerations for the X38 Form 8 include confirming a 1 inch trade size, checking mounting dimensions, and using the provided instruction sheets for wire pulling. The 7.31 in depth and 3.5 in height help determine available panel space, while the 2.25 in width keeps adjacent components accessible. Refer to IF 964 and the X38 specification sheet for step-by-step guidance.
Designed with an X-shaped Form 8 geometry, the X38 provides clear wire pull paths and easy access to conductors. The 1 inch trade size and generous internal space minimize bend radius issues, reducing pulling force and the risk of insulation damage. When wiring, follow the IF 964 instruction sheet to select the correct entry points and maintain code-compliant spacing.
Yes. It follows NEC/CEC standards and carries a NEMA 12 rating for dust and water resistance in ordinary locations. The product pages reference Canadian certification via UL listings, ensuring cross-border use where required. For installers, this means predictable compliance during inspections and smoother procurement across North American sites. It is compatible with NEC applications and standard Condulet accessories.
Feraloy iron alloy in the X38 delivers high shear strength and excellent corrosion resistance, extending service life in dusty, humid environments common to manufacturing and process facilities. This reduces field maintenance costs and minimizes downtime due to component failure. The material also tolerates mechanical impacts during installation and service, helping crews meet stringent uptime targets without sacrificing safety.
Selecting X38 Condulet Form 8 reduces lifecycle costs through fewer replacement parts and longer service intervals. Its robust build withstands routine wiring, inspections, and environmental exposure, decreasing downtime during commissioning and rework. In addition, standardized NEC/CEC alignment simplifies procurement and installation, while widely documented reference materials (catalog pages, spec sheets, and wire-pulling guides) shorten training time for maintenance staff.
