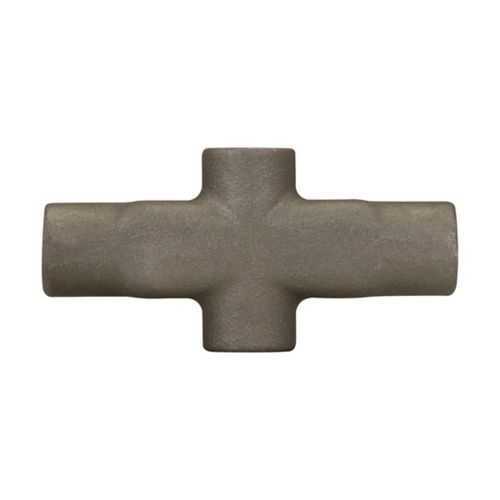

Eaton Crouse-Hinds X39 Condulet Mark 9 conduit outlet body - NEMA 12
Part Number: X39
Quick Summary
The X39 Condulet Mark 9 conduit outlet body provides rugged, reliable enclosure for electrical conduit in industrial control panels. In the field, difficult wire pulling and noncompliant fittings can slow maintenance and trigger costly downtime. It carries NEC/CEC compliance and a NEMA 12 rating, suitable for Ordinary/Non-Hazardous Locations. Copper-free aluminum reduces weight and corrosion risk, while the 1 inch trade size aligns with common panel layouts and catalog X39. Designed for quick replacement and easy field wiring, it integrates with standard installation practices. With references to IF 863 and wire fill guidance, installers reduce risk while improving panel density. Engineers appreciate clear documentation and compatible accessories for faster project turnover.
Product Information
Extended Description
X39 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body, Copper-free aluminum, X shape, 1"
Product Name
Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
Catalog Number
X39
UPC
782274746302
Product Length/Depth
7.31 in
Product Height
3.5 in
Product Width
2.25 in
Product Weight
1.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
X
Trade size
1"
Material
Copper-free aluminum
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Mark 9 Conduit Outlet Bodies Canadian certification
Condulet Mark 9 Conduit Outlet Bodies Canadian certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - X39
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Copper-free aluminum construction provides excellent corrosion resistance while reducing overall weight, enabling safer handling and faster installation in busy plant environments. This translates to improved lifecycle performance and lower maintenance costs in medium- to high-traffic electrical racks, especially where frequent access is required for wiring and inspection. The X shape and 1" trade size optimize routing through crowded panels, supporting faster wire pulls and simplified field modifications, which improves project turnover times and reduces downtime during upgrades. NEMA 12 rating and Ordinary/Non-Hazardous Location suitability deliver reliable dust and splash protection, ensuring consistent operation in standard factory floors and controlled environments. Compatibility with Eaton’s Condulet Mark 9 catalog pages and IF 863 guidance helps you standardize components across multiple panels, reducing stocking complexity and procurement risk. Installation advantages include clear documentation, wire fill guidance, and a lightweight, durable enclosure that minimizes overhead in maintenance and replacements. This also supports long-term total cost of ownership improvements by limiting unexpected failures and securing regulatory alignment for industrial automation projects.
Get a Quick Quote for a Eaton Crouse-Hinds X39
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds X39?
Enquire Now
FAQs
Yes. The X39 is a 1" trade size conduit outlet body with the Condulet Mark 9 configuration, designed for quick field wiring and easy integration with Eaton Condulet systems. It aligns with standard installation practices and is supported by Eaton installation sheets for reliable setup.
The X39 is rated NEMA 12 and intended for Ordinary/Non-Hazardous Locations. This provides protection against dust and splashing water in typical factory environments, helping maintain reliability in non-specialized industrial settings.
X39 complies with NEC/CEC standards for electrical equipment. Canadian certification references are available for Condulet Mark 9 components, and the UPC is 782274746302, supporting traceability and compliance in North American projects.
Installation resources include the IF 863 conduit body wire pulling instruction sheets, the Eaton specification sheet for X39, and the Crouse-Hinds Form 8 and Mark 9 catalog page. These documents help with proper wire fill, mounting, and replacement procedures, reducing risk and improving assembly efficiency.
Key dimensions are 7.31 inches in length, 3.5 inches in height, and 2.25 inches in width, with a weight of 1.5 pounds. This footprint supports planning for panel density and routing, ensuring compatibility with existing enclosures and space constraints.
