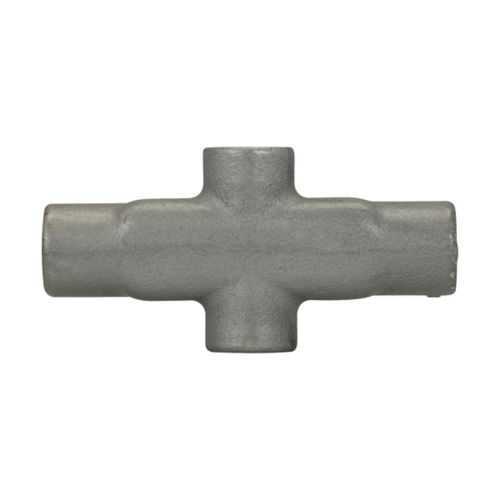

Eaton X448 Condulet Form 8 Conduit Outlet Body - NEMA 12
Part Number: X448
Quick Summary
Condulet Form 8 conduit outlet body from Eaton X448 provides rugged, field-ready wiring access for industrial control panels. Installers often fight tight spaces, awkward wire pulls, and misaligned conduit paths that slow projects and raise risk of damage. This Form 8 unit provides robust protection with NEMA 12, NEC/CEC compliance, and suitable for Ordinary/Non-Hazardous Locations, giving you confidence across typical factory floors. The combination of a 1-1/4 in trade size and Feraloy iron alloy construction delivers durability without adding excessive bulk. By standardizing on this conduit body, you simplify stocking, improve maintenance cycles, and reduce rework costs while preserving clear wiring routes and safe wire pulling paths.
Product Information
Extended Description
X448 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body, Feraloy iron alloy, X shape, 1-1/4"
Product Name
Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body
Catalog Number
X448
UPC
782274747002
Product Length/Depth
8.5 in
Product Height
4.13 in
Product Width
2.63 in
Product Weight
4.34 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
X
Trade size
1-1/4"
Material
Feraloy iron alloy
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Form 8 Conduit Outlet Bodies Canadian certification
Condulet Form 8 Conduit Outlet Bodies Canadian certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - X448
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feature: Form 8 conduit outlet body with X shape design provides an optimized wire pulling path. Business Impact: Reduces installation time and signaling errors, improving first-pass wiring accuracy. Application: Control panels and machinery enclosures where reliable conduit routing is essential. Feature: Feraloy iron alloy construction offers high strength and corrosion resistance. Business Impact: Extends service life in factory environments, lowering replacement and maintenance costs. Application: Indoor dry locations in busy manufacturing floors. Feature: 1-1/4 inch trade size aligns with common conduit systems. Business Impact: Simplifies parts selection and spares inventory, reducing project lead times. Application: feeders and branch circuits in new builds or upgrades. Feature: NEMA Rating 12 and Ordinary/Non-Hazardous Location classification. Business Impact: Ensures compliance and protection against dust and moisture, minimizing risk of downtime. Application: Indoor equipment cabinets and control panels. Feature: Downloadable installation resources including IF 863 wire pulling instructions and specification sheets. Business Impact: Accelerates commissioning and reduces field mistakes. Application: On-site installation and commissioning teams. Feature: Precise dimensions 8.5 in length, 4.13 in height, 2.63 in width and 4.34 lb weight provide accurate enclosure planning. Business Impact: Improves panel fill calculations and space management, reducing design iterations. Application: Enclosure planning for new lines and retrofits.
Get a Quick Quote for a Eaton Crouse-Hinds X448
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds X448?
Enquire Now
FAQs
Key specs include a 1-1/4 inch trade size, 8.5 inches length, 4.13 inches height, 2.63 inches width, and 4.34 pounds weight. It is made from Feraloy iron alloy, supports NEC/CEC standards, carries a NEMA 12 rating, and is listed for Ordinary/Non-Hazardous Locations. Catalog number is X448 and UPC is 782274747002.
No. The X448 Condulet Form 8 is rated for Ordinary/Non-Hazardous Locations with a NEMA 12 protection level. It is not certified for hazardous locations. For harsher environments, consider fittings rated for more demanding conditions or hazardous-area assemblies with appropriate certifications.
The Form 8 conduit outlet body provides an optimized pull path with its X-shaped form, improving wire routing and reducing pulling resistance. Compatibility with IF 863 and related installation sheets shortens commissioning time, minimizes field rework, and supports quicker panel wiring and maintenance.
This conduit body adheres to NEC/CEC standards and carries a NEMA 12 rating. It is intended for Ordinary/Non-Hazardous Locations, and Canadian certifications are available through UL listings. Always verify local compliance requirements before installation in a given jurisdiction.
Documentation is available via Eaton’s resources: the X448 specification sheet, IF 863 Crouse-Hinds instruction sheets for conduit body wire pulling, and the Form 8 catalog page. These resources support correct installation, wire fill, and compatibility with standard conduit systems.
