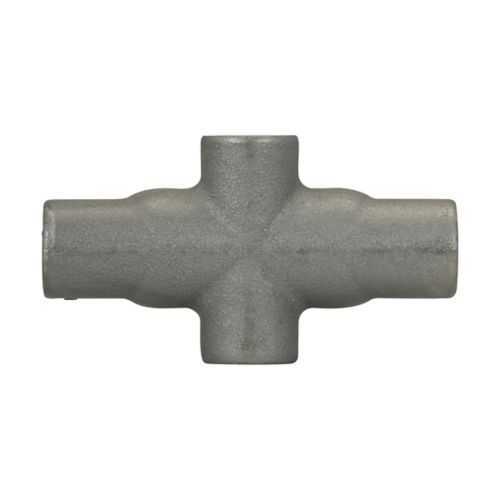

Eaton Crouse-Hinds X47 Condulet Form 7 Outlet Body - NEMA 12
Part Number: X47
Quick Summary
X47 Condulet Form 7 outlet body is a rugged conduit termination designed for industrial control panels and machine enclosures. Choosing the wrong form or material can lead to leaks, maintenance costs, and project delays. It carries a NEMA 12 rating, NEC/CEC compliance, and area classification for Ordinary/Non-Hazardous Locations, helping you meet code and performance goals. Built from Feraloy iron alloy and offered in 1-1/4 in trade size, this conduit body streamlines installation while reducing spare parts and maintenance overhead.
Product Information
Extended Description
X47 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, X shape, 1-1/4"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
X47
UPC
782274746500
Product Length/Depth
7.44 in
Product Height
4.13 in
Product Width
2.31 in
Product Weight
3.3 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
X
Trade size
1-1/4"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - X47
Eaton Specification Sheet - X47
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Durable Feraloy iron alloy construction delivers long service life in dirty and demanding environments, reducing replacement intervals and total cost of ownership for panels and enclosures. The X-shaped Form 7 design facilitates smoother wire pulling, cutting installation time and reducing the risk of damaged conductors during assembly. With a 1-1/4 in trade size, it aligns with standard conduit runs and simplifies integration with existing wiring schemes across control panels and machine centers. NEC/CEC compliance and NEMA 12 protection provide robust, code-driven performance in ordinary indoor locations, offering peace of mind for regulatory audits and maintenance cycles. The form 7 outlet body supports reliable access points for wiring, bolting, and future maintenance while minimizing field adjustments and rework. Its precise dimensions—7.44 in length, 4.13 in height, and 2.31 in width—enable predictable fit in compact control panels, reducing engineering time and spare parts variety. Overall, it enhances reliability, simplifies procurement, and accelerates project timelines for industrial electrical installations.
Get a Quick Quote for a Eaton Crouse-Hinds X47
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds X47?
Enquire Now
FAQs
The X47 Condulet Form 7 conduit outlet body is used to provide a reliable access opening for conductors in 1-1/4 inch conduit runs within control panels, motor starters, and machine enclosures. It enables safe wire pulling, protects wiring in ordinary indoor locations, and supports compliant enclosure assemblies for industrial applications.
Yes. The X47 Form 7 conduit outlet body aligns with NEC/CEC standards and carries a NEMA 12 protection rating. It is suitable for Ordinary/Non-Hazardous locations and supports UL-listed configurations as part of the Crouse-Hinds/Form 7 family for dependable, code-compliant installations.
The X47 measures 7.44 inches in length, 4.13 inches in height, and 2.31 inches in width, with a weight of approximately 3.3 pounds. These dimensions suit compact control panels and standard conduit layouts while maintaining robust mechanical performance.
Yes. Installation guidance is provided through Eaton’s resources, including IF 863 on conduit body wire pulling and official Eaton specification sheets for Form 7 bodies. For detailed procedures, refer to the IF 863 instruction sheets and the Form 7 specification documents.
Feraloy iron alloy delivers high strength and corrosion resistance, extending service life in demanding environments. This translates to lower maintenance costs, fewer field failures, and reliable performance in ordinary indoor locations across industrial wiring applications.
