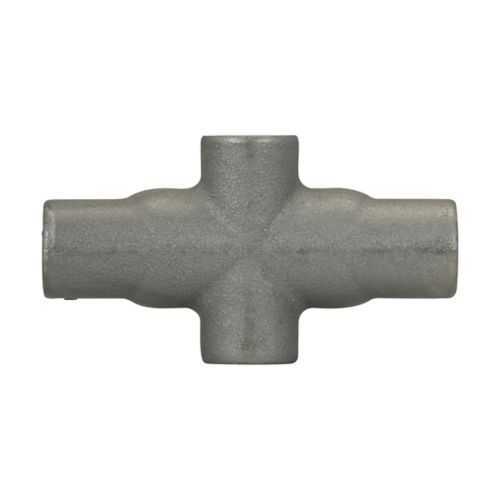

Eaton Crouse-Hinds X57 Condulet Form 7 Conduit Outlet Body - NEMA 12
Part Number: X57
Quick Summary
The Eaton Crouse-Hinds X57 Condulet Form 7 conduit outlet body enables rugged conduit termination for industrial panels. In real-world projects, installers confront wire pulling challenges, moisture risk, and enclosure non-compliance that slow progress and inflate costs. This unit carries a NEMA Rating of 12 and NEC/CEC compliance, built from Feraloy iron alloy for durability in Ordinary/Non-Hazardous Locations. Its Form 7 geometry and 1-1/2 inch trade size support consistent, scalable wiring solutions across multiple panels, reducing rework and field errors. By delivering dependable enclosure performance with standard form factors, it helps teams improve installation speed, maintain compliance, and lower lifecycle costs while enabling safer, more reliable electrical distribution in demanding environments.
Product Information
Extended Description
X57 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, X shape, 1-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
X57
UPC
782274746609
Product Length/Depth
8.19 in
Product Height
4.63 in
Product Width
2.56 in
Product Weight
4.3 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
X
Trade size
1-1/2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Condulet Form 7 Industrial Grade Conduit Bodies
Condulet Form 7 Industrial Grade Conduit Bodies
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feature: Feraloy iron alloy body provides improved strength and corrosion resistance in demanding industrial environments. Impact: Extends service life and reduces maintenance cycles, lowering total cost of ownership on control panels and motor starters. Application: Ideal for indoor and semi-exposed installations where mechanical protection and long-term durability matter. Feature: Form 7, X-shaped conduit body designed for 1-1/2 inch trade size with precise internal geometry. Impact: Enables efficient wire pulling and easier access to conductors, accelerating panel assembly and reducing installation time. Application: Suitable for standard Form 7 applications in automotive, manufacturing, and process plants. Feature: NEMA 12 rating and NEC/CEC compliance with Ordinary/Non-Hazardous Locations classification. Impact: Ensures regulatory alignment, moisture resistance, and predictable performance in non-hazardous environments, minimizing inspection issues. Application: Compliant enclosures for general-purpose wiring in clean rooms, workshops, and plant floors. Feature: Robust installation resources and documentation (IF 964 wire pulling instructions, Form 7 spec guides, and UL certifications). Impact: Provides installers with proven best practices, reduces mis-wiring risk, and streamlines commissioning. Application: Useful for field teams and contractors aiming for repeatable, compliant installations. Feature: Consistent dimensions and cataloged data (8.19 in length, 4.63 in height, 2.56 in width, 4.3 lb weight). Impact: Predictable fit within enclosures and panels, simplifying layout planning and spare-part inventories. Application: Suitable for standardized panel designs and module-based wiring schemes.
Get a Quick Quote for a Eaton Crouse-Hinds X57
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds X57?
Enquire Now
FAQs
The X57 is designed for 1-1/2 inch trade size Form 7 conduit bodies. It accepts standard Form 7 covers and fittings used with Crouse-Hinds Form 7 products. For best results, reference the Form 7 specification guides and installation sheets (IF 964) to ensure compatibility with your enclosure and cover kit. Always verify catalog numbers and UL listings before procurement.
The X57 carries a NEMA 12 rating and is classified for Ordinary/Non-Hazardous Locations, ensuring moisture protection and reliable operation in general factory and office-adjacent spaces. Manufactured from Feraloy iron alloy, it delivers robust mechanical strength and corrosion resistance suitable for indoor or semi-exposed installations commonly found in industrial facilities.
Leverage the supplied Form 7 geometry to optimize conductor routing, and consult the IF 964 wire pulling instruction sheet for step-by-step guidance. Use appropriate pulling lubricants, plan for bend radii, and ensure correct wire fill per the Industrial Fittings Wire Fill Chart. These practices reduce pull resistance and minimize conductor damage during installation.
The X57 complies with NEC/CEC standards and is suitable for Ordinary/Non-Hazardous Locations, with a NEMA 12 rating. UL certification documents are available for the Condulet Form 7 family, including cross-border Canada listings, validating compliance for electrical enclosures and metallic outlet bodies in industrial applications.
The X57 offers durable, long-life construction with reduced maintenance due to its corrosion-resistant Feraloy iron alloy. Its standardized form factor and clear installation guides minimize field errors and rework, speeding commissioning and lowering lifecycle costs for panel assemblies in manufacturing and process environments.
