Eaton X67 Conduit Outlet Body - Form 7, NEMA 12
Part Number: X67
Quick Summary
Conduit Outlet Body for Form 7 provides rugged, reliable conduit housing for industrial wiring installations. Many engineers struggle with corrosion resistance, space constraints, and difficult wire pulling during installation in harsh environments. This form 7 body carries a NEMA 12 rating for indoor use, aligns with NEC/CEC standards, and is suitable for ordinary/non-hazardous locations. The 2" trade size supports standard configurations, while the Feraloy iron alloy construction ensures long service life in demanding settings. By integrating with Form 7 conduit bodies, your installation remains compliant, efficient, and adaptable to standard conduit runs, helping reduce downtime and maintenance costs across projects.
Product Information
Extended Description

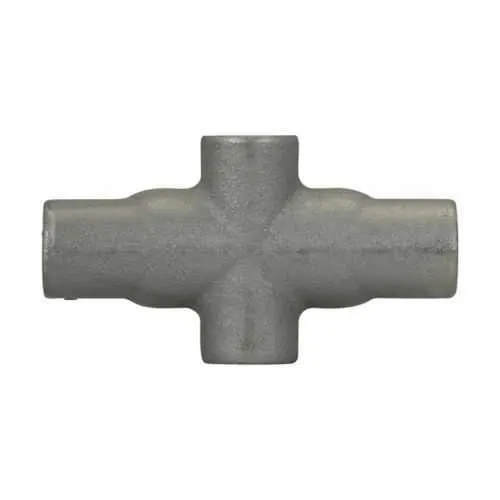

X67 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, X shape, 2"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
X67
UPC
782274746807
Product Length/Depth
9.19 in
Product Height
5.19 in
Product Width
3.13 in
Product Weight
6.2 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
X
Trade size
2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers Canadian certification
Condulet Form 7 Conduit Outlet Bodies and Covers Canadian certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Condulet Form 7 Industrial Grade Conduit Bodies
Condulet Form 7 Industrial Grade Conduit Bodies
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feature: Feraloy iron alloy construction provides natural corrosion resistance and high strength. Business Impact: Extends service life and lowers replacement frequency in demanding environments. Application: Ideal for indoor industrial wiring runs where durable conduit bodies are essential. Feature: X shape and Form 7 design enable easier wire pulling and routing in compact spaces. Business Impact: Improves installation efficiency, reduces labor time, and minimizes wiring mistakes. Application: Suitable for 2" trade size conduits in crowded electrical cabinets. Feature: NEMA 12 rating and Ordinary/Non-Hazardous location classification deliver reliable protection and regulatory alignment. Business Impact: Enhances safety, minimizes contamination risk, and supports NEC/CEC compliance. Application: Light to moderate industrial applications in clean or semi-clean facilities. Feature: Precise dimensions 9.19 in length, 5.19 in height, 3.13 in width, and 6.2 lb weight provide predictable fit. Business Impact: Facilitates accurate enclosure planning and streamlined procurement. Application: Standardized Condulet Form 7 installations across facilities. Feature: Comprehensive documentation and installation guidance via catalogs and instruction sheets reduce risk. Business Impact: Lowers on-site errors and accelerates commissioning. Application: Projects requiring formal wire pulling and body installation procedures.
Get a Quick Quote for a Eaton Crouse-Hinds X67
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds X67?
Enquire Now
FAQs
To install X67, prepare the routing path, verify radial clearance, and align the body with the conduit axes. Use the Form 7 installation instructions (IF 863 and IF 964 sheets) for wire pulling guidance, proper grommet seating, and cover mounting. The 2 inch trade size matches standard conduit systems, reducing the risk of misalignment and simplifying maintenance over time.
Important specs include material: Feraloy iron alloy, shape: X, trade size: 2 inches, dimensions: 9.19 in length, 5.19 in height, 3.13 in width, and weight: 6.2 lb. It carries a NEMA 12 rating and complies with NEC/CEC standards, making it suitable for ordinary/non-hazardous indoor locations. These details drive cable fill, enclosure planning, and installation sequencing.
Yes, the X67 is designed for ordinary/non-hazardous locations and carries a NEMA 12 rating. It aligns with NEC/CEC standards, ensuring regulatory compliance for indoor industrial applications. Canadian certification data is available in the manufacturer resources, providing additional assurance for cross-border projects. Always verify local codes to confirm suitability for your site.
Access Eaton/Crouse-Hinds catalogs, the form 7 spec guide, and installation sheets such as IF 863 for wire pulling. These resources confirm compatibility with standard conduit systems, provide wire fill guidance, and illustrate step-by-step mounting and securing procedures. Using these documents reduces installation risk and helps ensure consistent performance across projects.
The X67’s durable Feraloy alloy and Form 7 design reduce corrosion-related maintenance and replacement costs in indoor facilities. Its 2" trade size supports common configurations, minimizing stocking complexity. Combined with official guidance, predictable dimensions, and standard installation practices, it lowers downtime, speeds commissioning, and improves long-term reliability.
