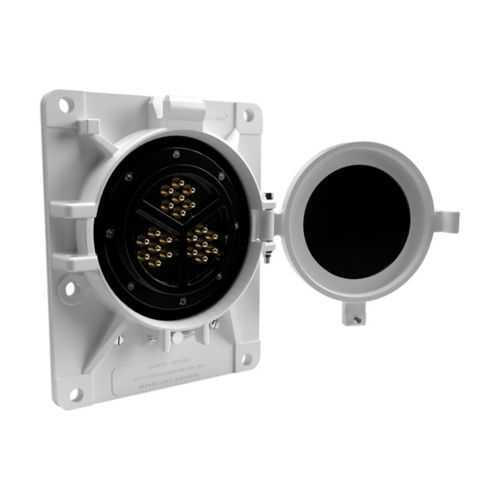

Eaton X8999-41 Ship/Shore Receptacle Assembly - 500V
Part Number: X8999-41
Quick Summary
X8999-41 Ship/Shore Receptacle Assembly from Eaton provides reliable shore power connections for dockside and industrial operations. Operators and maintenance teams frequently battle corrosion, downtime, and risky terminations in harsh environments; this assembly mitigates those issues with a stainless-steel housing and a secure terminal screws design. It is rated for Ordinary/Non-Hazardous Locations and supports three-phase, 500V service up to 500A, aligning with typical dockside and plant power architectures. By simplifying installation and improving connection integrity, it delivers lower lifecycle costs, safer operation, and faster onboarding for new projects. This solution also complements Crouse-Hinds shore power connectors and other surface-mount power distribution setups in modern facilities.
Product Information
Extended Description
X8999-41 Eaton Crouse-Hinds: Eaton Crouse-Hinds series ship/shore receptacle assembly, Up to 500A continuous, 500 MCM cable, 3-wire, 3-pole, Pin, Female, Stainless steel with neoprene tube, Wall/surface mount, Three-phase, Spring door, One switch, Terminal screws, 500V
Product Name
Eaton Crouse-Hinds series ship/shore receptacle assembly
Catalog Number
X8999-41
UPC
662275168665
Product Length/Depth
11.5 in
Product Height
9.5 in
Product Width
6.7 in
Product Weight
24 lb
Area classification
Ordinary/Non-Hazardous Locations
Receptacle style
Spring door
Cable size
500 MCM
Special features
One switch
Amperage Rating
Up to 500A Continuous
Phase
Three-phase
Voltage rating
500 Vac
Configuration
Three-wire, three-pole
Contact type
Pin
Gender
Female
Material
Stainless steel with neoprene tube
Mounting method
Surface/Wall Mount
Termination style
Terminal screws
Crouse-Hinds series Shore Power Connectors and Cables flyer
Crouse-Hinds series Shore Power Connectors and Cables catalog page
Eaton Specification Sheet - X8999-41
Feature: Up to 500A continuous amperage rating. Business Impact: Enables handling large dockside and industrial loads without parallel connections or overload risk. Application: Heavy-duty power distribution for ships and manufacturing plants. Feature: Cable size 500 MCM compatibility. Business Impact: Reduces the need for intermediate splices and protects long cable runs, cutting installation time. Application: Primary shore power feed in large facilities. Feature: Stainless steel housing with neoprene tube. Business Impact: Provides corrosion resistance and environmental sealing, lowering maintenance and replacement costs. Application: Marine, dockside, and outdoor installations. Feature: Surface/Wall mounting. Business Impact: Simplifies installation in tight spaces and existing structures, shortening project schedules. Application: Plant interiors and dockside enclosures. Feature: Spring door receptacle style with terminal screws. Business Impact: Improves field serviceability and fast, secure terminations, boosting uptime. Application: Frequent mating cycles in dockside operations. Feature: Three-wire, three-pole, female pin contact configuration. Business Impact: Ensures reliable, polarized connections and compatibility with standard shore power cabling. Application: Three-phase shore power systems in industrial environments. Long-tail keywords integrated: ship shore receptacle, three-phase shore power connector, stainless steel receptacle, neoprene tube protection, terminal screws, surface mount receptacle, 500A shore power, 500 MCM cable, Crouse-Hinds shore power connectors, dockside power distribution.
Get a Quick Quote for a Eaton Crouse-Hinds X8999-41
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds X8999-41?
Enquire Now
FAQs
Begin with verifying the mounting surface is clean and flat, then secure the X8999-41 to a wall or fixture using appropriate fixings. Route the 500 MCM cables to the terminal screws and tighten per the torque specification. Ensure the enclosure is protected from ingress and that the connection is fully mated to prevent arcing or misalignment.
The X8999-41 is rated up to 500A continuous with 500 Vac and supports three-phase, three-wire, three-pole configurations. It uses a pin/female contact arrangement and terminal screws for secure termination, delivering reliable current transfer and stable voltage profiles in demanding dockside or plant environments.
The unit features stainless steel construction with a neoprene seal, designed for ordinary/non-hazardous locations and rugged industrial use. While not explicitly specified for marine-grade IP ratings, its corrosion-resistant materials and spring door design help withstand exposure typical of dockside operations and similar non-hazardous locations.
The product is classified for Ordinary/Non-Hazardous Locations, aligning with common industrial and dockside compliance expectations. It supports a 500V three-phase service and uses durable terminal screw terminations, which helps ensure consistent electrical safety and reliability within standard power distribution schemes.
The X8999-41 reduces downtime through robust stainless-steel construction, a secure spring-door design, and straightforward terminal screw terminations, minimizing field maintenance. Its high amperage rating and compatible 500 MCM cabling enable fewer components and longer service intervals, delivering lower total cost of ownership in dockside, manufacturing, and processing environments.
