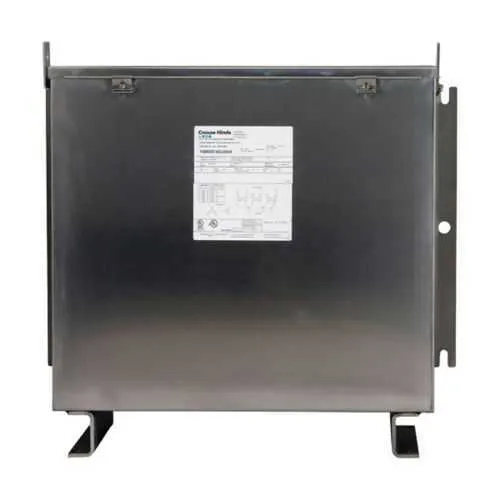

Eaton XDT1A5 Dry-Type Transformer - Hazardous Location
Part Number: XDT1A5
Quick Summary
The Eaton XDT1A5 dry-type transformer provides reliable step-down power for hazardous-area electrical installations in industrial facilities. Operators and engineers often struggle with moisture ingress, heat buildup, and space constraints in Class I, Division 2 environments. This unit carries NEC/CEC compliance, a Class I, Division 2 hazard rating, and a NEMA 3R enclosure, ensuring safety and durability. With a 5 kVA rating at 60 Hz and 480 Vac primary, 120/240 Vac secondary, it fits compact installations while delivering dependable control power. The resin-encapsulated construction and copper windings support maintenance-friendly operation and long-term cost savings in safety-critical applications.
Product Information
Extended Description
XDT1A5 Eaton Crouse-Hinds: Eaton Crouse-Hinds series XDT dry-type transformer, 60 Hz, 5 kVA, Painted steel, Single-phase, 480 Vac, 120/240 Vac, Copper windings, Resin encapsulated
Product Name
Eaton Crouse-Hinds series XDT dry-type transformer
Catalog Number
XDT1A5
UPC
662276439368
Product Length/Depth
10 in
Product Height
16.2 in
Product Width
9.9 in
Product Weight
140 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2
NEMA Rating
3R
Type
Resin encapsulated
Phase
Single-phase
Primary voltage
480 Vac
Secondary Voltage
120 Vac/240 Vac
Frequency rating
60 Hz
Material
Painted steel
Special features
Copper windings
SP3D Design Package - XDT and XTT Hazardous Area Transformers
XDT and XTT Hazardous Area Transformers Flyer
XDT and XTT Hazardous Area Transformers catalog page
XDT and XTT Hazardous Area Transformers UL certification
XDT and XTT Hazardous Area Transformers UL certification
IF XDT - XDT Series Hazardous Area Transformers
Eaton Specification Sheet - XDT1A5
Eaton Specification Sheet - XDT1A5
Feature: Resin-encapsulated dry-type construction reduces moisture ingress and provides robust insulation. Business Impact: Enhances safety in hazardous locations and minimizes environmental risk, lowering maintenance headaches. Application: Ideal for control panels and instrumentation in Class I Division 2 environments. Feature: 5 kVA, 60 Hz, single-phase with 480 Vac primary and 120/240 Vac secondary. Business Impact: Delivers reliable power for panel-mounted controls and sensors without oversized equipment. Application: suits mid-load power distribution in industrial facilities. Feature: Copper windings and painted steel enclosure. Business Impact: Improves electrical efficiency and mechanical durability while withstanding rugged plant conditions. Application: Harsh environments where vibration and temperature fluctuations are common. Feature: NEMA 3R enclosure and area-classified protection (Hazardous/Classified Locations). Business Impact: Enables outdoor or semi-enclosed installations with approved protection, reducing ducting and enclosure costs. Application: Offshore, chemical plants, and mining facilities where safety compliance is critical. Feature: 3R rating and NEC/CEC compliance with Class I Division 2 rating. Business Impact: Aligns with regulatory expectations and accelerates commissioning. Application: Regulatory-driven installations requiring certified hazardous-location transformers. Feature: Physical footprint and weight (10 in L x 9.9 in W x 16.2 in H; 140 lb). Business Impact: Easier installation in tight spaces and within standard mounting practices. Application: Retrofit or upgrade projects in constrained electrical rooms.
Get a Quick Quote for a Eaton Crouse-Hinds XDT1A5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds XDT1A5?
Enquire Now
FAQs
Plan for a compliant mounting surface with adequate clearance, use a compatible NEMA 3R enclosure, and follow NEC/CEC wiring practices. The XDT1A5’s footprint (10 in x 9.9 in x 16.2 in) and 140 lb weight influence rack placement and anchoring, while the resin-encapsulated construction reduces moisture intrusion and simplifies mounting in confined spaces.
XDT1A5 is a single-phase transformer with a 480 Vac primary and a 120/240 Vac secondary, designed for 60 Hz operation and a 5 kVA rating. This makes it suitable for powering control circuits and instrumentation within hazardous locations.
Yes. It carries NEC/CEC compliance with a Class I, Division 2 hazardous rating and a NEMA 3R enclosure. Area classification is Hazardous/Classified Locations, ensuring safe operation in challenging environments.
Resin encapsulation provides moisture resistance, improved dielectric strength, and enhanced mechanical protection. This reduces cleaning and maintenance needs, minimizes insulation failures, and lowers lifecycle costs in moisture-prone or vibration-heavy facilities.
With an oil-free, resin-encapsulated design and copper windings, the transformer reduces leakage risks and maintenance requirements. Its rugged enclosure and certified hazardous-location ratings simplify compliance, while documented installation instructions and available spec sheets support efficient commissioning and long-term operation.
