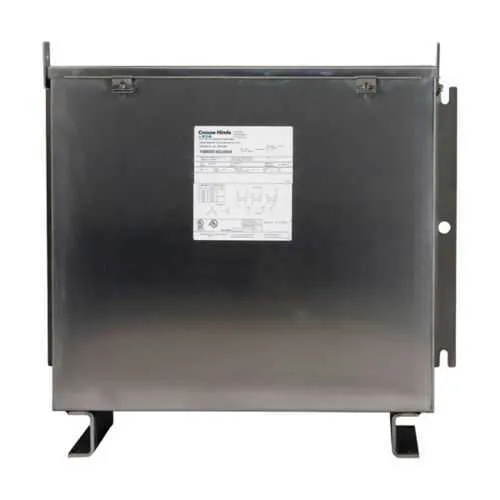

Eaton Crouse-Hinds XDT1A5X Dry-Type Transformer - NEMA 4X
Part Number: XDT1A5X
Quick Summary
XDT1A5X dry-type transformer from Eaton Crouse-Hinds provides reliable step-down power conversion for hazardous-location equipment. Engineers and procurement teams often struggle to source rugged, code-compliant transformers that withstand harsh environments and minimize downtime. This unit meets NEC/CEC requirements, is rated for Hazardous/Classified Locations (Class I, Division 2), and features 316 stainless steel with resin encapsulation and NEMA 4X protection. For installers and buyers, it delivers easy compliance, long service life, and lower maintenance costs for industrial transformers in hazardous areas, while supporting a 480 Vac to 120/240 Vac output with copper windings.
Product Information
Extended Description
XDT1A5X Eaton Crouse-Hinds: Eaton Crouse-Hinds series XDT dry-type transformer, 60 Hz, 5 kVA, 316 stainless steel, Single-phase, 480 Vac, 120/240 Vac, Copper windings, Resin encapsulated
Product Name
Eaton Crouse-Hinds series XDT dry-type transformer
Catalog Number
XDT1A5X
UPC
662276445093
Product Length/Depth
13.9 in
Product Height
14.8 in
Product Width
9.5 in
Product Weight
130 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2
NEMA Rating
4X
Type
Resin encapsulated
Phase
Single-phase
Primary voltage
480 Vac
Secondary Voltage
120 Vac/240 Vac
Frequency rating
60 Hz
Material
316 stainless steel
Special features
Copper windings
SP3D Design Package - XDT and XTT Hazardous Area Transformers
XDT and XTT Hazardous Area Transformers Flyer
XDT and XTT Hazardous Area Transformers catalog page
XDT and XTT Hazardous Area Transformers UL certification
XDT and XTT Hazardous Area Transformers UL certification
IF XDT - XDT Series Hazardous Area Transformers
XDT Hazardous Area Transformers
XDT Hazardous Area Transformers
Feature 1: 5 kVA, 60 Hz, single-phase operation with 480 Vac primary and 120/240 Vac secondary. Business Impact: Enables reliable power conditioning for control panels in hazardous locations, reducing voltage mismatch and extending component life. Application: Ideal for machine controls and instrumentation where safety and performance are critical. Feature 2: 316 stainless steel housing with resin encapsulation. Business Impact: Provides superior corrosion resistance and moisture protection in washdown and chemical environments, lowering maintenance costs. Application: Suitable for coastal or chemical processing facilities. Feature 3: Copper windings. Business Impact: Improves energy efficiency and thermal performance, contributing to lower operating temperatures and longer transformer life. Application: Critical in continuous process environments. Feature 4: NEMA 4X enclosure and Area classification for Hazardous/Classified Locations. Business Impact: Enhances user safety and regulatory compliance, reducing risk of enclosure ingress and equipment failure. Application: Works well in Class I, Division 2 locations across oil, gas, and adjacent facilities. Feature 5: Compact dimensions and weight (13.9 in L Ă— 14.8 in H Ă— 9.5 in W; 130 lb). Business Impact: Facilitates easier installation, mounting, and service access in limited spaces. Application: Suitable for retrofits and new builds with tight mechanical footprints. Feature 6: Comprehensive documentation and installation support (UL and distributor materials). Business Impact: Accelerates commissioning and reduces commissioning risk. Application: Streamlines procurement and engineering workflows for hazardous-area projects.
Get a Quick Quote for a Eaton Crouse-Hinds XDT1A5X
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds XDT1A5X?
Enquire Now
FAQs
Install XDT1A5X in accordance with NEC/CEC guidelines for Class I, Division 2 hazards. Use the NEMA 4X weatherproof enclosure, ensure proper clearances around the transformer, and follow installation sheets in the XDT/XTT instruction pack. The resin-encapsulated design and copper windings support safe operation in hazardous environments when mounted per the recommended torque and mounting hardware.
Key specs include a 5 kVA rating, 60 Hz frequency, single-phase configuration, 480 Vac primary, and 120/240 Vac secondary. The unit uses copper windings and is resin-encapsulated in 316 stainless steel with a 4X NEMA enclosure. These attributes support stable voltage conversion, efficient operation, and robust protection in hazardous areas.
Yes. The XDT1A5X is designed for NEC/CEC compliance and hazardous-location ratings (Class I, Division 2). Certifications are supported by UL documentation and industry literature, with additional materials available via Eaton’s safety and specification resources, ensuring regulatory alignment for installations in hazardous environments.
The transformer measures approximately 13.9 inches in length, 14.8 inches in height, and 9.5 inches in width, with a weight around 130 pounds. This compact footprint and substantial weight provide a stable mounting base and workable service access for field maintenance and panel installations.
With a corrosion-resistant 316 stainless steel housing, resin encapsulation, and copper windings, the XDT1A5X delivers long service life in harsh environments, reducing maintenance and replacement costs. Its robust enclosure and reliable 480 to 120/240 Vac conversion support uptime and lower lifecycle expenses in hazardous-area process and automation systems.
