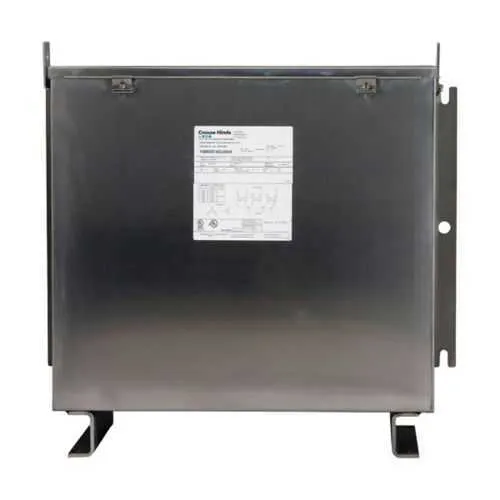

Eaton XDT1A7 Dry-Type Transformer - Class I, Division 2

7.5 kVA rating with 60 Hz operation and a single-phase configuration provides a compact, scalable power source for industrial control panels. This combination reduces panel space and simplifies coordination with downstream equipment, yielding faster installation and fewer field splices in applications like motor starters and relays. Copper windings in a resin-encapsulated housing offer higher efficiency and better short-circuit withstand than oil-filled or epoxy-encased options; in hazardous locations, this construction improves moisture resistance and electrical insulation, extending service life in washdown zones, chemical plants, and outdoor enclosures. Painted steel enclosure with a NEMA 3R rating supports reliable operation in damp or outdoor environments; paired with NEC/CEC compliance and Class I, Division 2 suitability, it minimizes regulatory risk while enabling outdoor or partially sheltered installations without extra protective cabinets. Compact dimensions (10 in depth, 9.9 in width, 16.2 in height) and a 146 lb weight facilitate installation in restricted spaces and on OEM equipment, reducing downtime during retrofits. Pre-approved documentation and downloadable resources—SP3D packages, spec sheets, catalogs, and UL certification reports—support fast procurement and qualification, enabling consistent sourcing and maintenance planning across industrial facilities.
