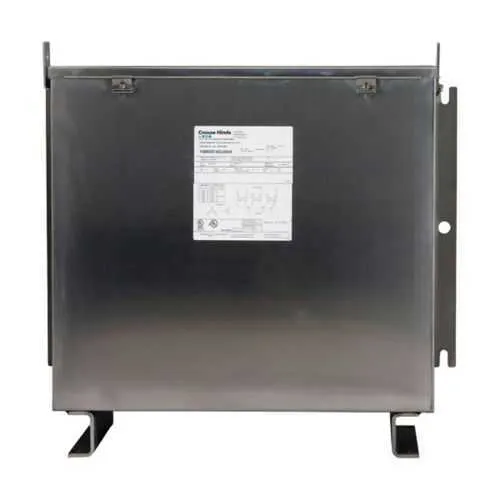

Eaton XDT3D75 Dry-Type Transformer - Class I, Div 2
Part Number: XDT3D75
Quick Summary
The XDT3D75 dry-type transformer delivers 75 kVA of clean, isolated power for hazardous-location industrial panels. Engineers often struggle with safe, code-compliant power conversion in classified areas while minimizing downtime and installation complexity. Certified for NEC/CEC compliance with Class I, Division 2 hazardous locations and a NEMA 3R enclosure, it supports resin-encapsulated copper-windings reliability. The unit's 600 VAC primary, 208Y/120 VAC secondary, three-phase design, and 60 Hz rating align with industrial power-supply standards, delivering consistent performance. This design supports rapid installation and long-term maintenance with copper windings and resin encapsulation. It is a scalable solution for plant modernization and compliance-driven upgrades.
Product Information
Extended Description
XDT3D75 Eaton Crouse-Hinds: Eaton Crouse-Hinds series XDT dry-type transformer, 60 Hz, 75 kVA, Painted steel, Three-phase, 600 Vac, 208Y/120 Vac, Copper windings, Resin encapsulated
Product Name
Eaton Crouse-Hinds series XDT dry-type transformer
Catalog Number
XDT3D75
UPC
662276445659
Product Length/Depth
30.28 in
Product Height
32.06 in
Product Width
15.67 in
Product Weight
1460 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2
NEMA Rating
3R
Type
Resin encapsulated
Phase
Three-phase
Primary voltage
600 Vac
Secondary Voltage
208Y/120 Vac
Frequency rating
60 Hz
Material
Painted steel
Special features
Copper windings
SP3D Design Package - XDT and XTT Hazardous Area Transformers
XDT and XTT Hazardous Area Transformers Flyer
XDT and XTT Hazardous Area Transformers catalog page
XDT and XTT Hazardous Area Transformers UL certification
XDT and XTT Hazardous Area Transformers UL certification
IF XDT - XDT Series Hazardous Area Transformers
XDT Hazardous Area Transformers
XDT Hazardous Area Transformers
Hazardous-area rating and resin-encapsulated construction reduce risk in Class I, Division 2 environments. The encapsulation protects copper windings from moisture and contaminants, lowering insulation degradation and maintenance cycles. This rugged design is well-suited for chemical plants, refineries, and other classified locations where continuous power and reliability are non-negotiable. Copper windings with resin encapsulation provide superior thermal performance and durable insulation. That translates to longer service intervals, lower fault rates, and improved uptime for 75 kVA loads. In practice, this enables control cabinets and motor drives to operate within temperature limits without frequent recalibration. Three-phase operation with 600 Vac primary and 208Y/120 Vac secondary supports efficient, safe power delivery for automation panels. The 60 Hz design minimizes voltage droop across feeders and simplifies integration with existing electrical systems. This combination reduces wiring complexity and improves control reliability in demanding production lines. NEMA 3R enclosure and hazard-area certifications simplify field approvals and outdoor/indoor installation. NEC/CEC compliance and UL certification coverage bolster regulatory readiness in cross-border facilities. Having these credentials streamlines procurement and reduces the need for extensive on-site testing. Physical footprint and weight require planning: dimensions are 30.28 in length, 32.06 in height, 15.67 in width, and 1460 lb. Plan for crane access, foundation, and service clearances to ensure safe handling and maintenance. Compact footprint supports retrofit projects where space is at a premium. Documentation and design support: SP3D package, brochures, catalogs, installation instructions, and UL certification reports. These assets cut engineering time, support accurate BOMs, and speed commissioning. Leverage these documents to validate spec fit and expedite approvals for hazardous locations projects.
Get a Quick Quote for a Eaton Crouse-Hinds XDT3D75
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds XDT3D75?
Enquire Now
FAQs
The XDT3D75 is a three-phase, 75 kVA dry-type transformer with a 600 Vac primary and 208Y/120 Vac secondary, designed to align with standard industrial power architectures. It supports common panel distributions and control circuits, but its heavy weight (1460 lb) and footprint (30.28 in L x 32.06 in H x 15.67 in W) require proper mounting, crane access, and suitable foundations.
Installers should verify area classification is Hazardous/Classified Locations and ensure NEC/CEC compliance. The XDT3D75 comes with a NEMA 3R enclosure and UL certification references for hazardous environments, plus installation sheets such as the IF XDT instruction sheet to guide wiring methods, clearance, and mounting. Plan for proper grounding and lockout/tagout during commissioning.
Plan for a footprint of approximately 30.28 in deep, 32.06 in tall, and 15.67 in wide, with a total weight around 1460 lb. Ensure crane access for movement, a stable foundation, and sufficient service clearances for connections, ventilation, and future maintenance activities.
Resin-encapsulation seals windings from moisture and contaminants, improving insulation resilience and reducing maintenance cycles. Copper windings provide superior electrical conductivity and thermal performance, supporting reliable operation under continuous duty at 75 kVA. This combination translates to lower fault rates and longer service life in demanding industrial environments.
Access comprehensive design and compliance resources including SP3D Design Package for XDT and XTT hazardous area transformers, brochures, the catalog page, UL certification reports, installation instructions, and data sheets. These assets streamline procurement, engineering, and commissioning for hazardous locations projects.
