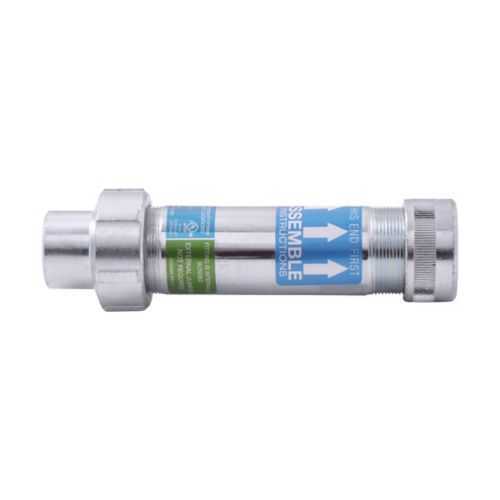

Eaton Crouse-Hinds XJG14 Expansion Coupling - NEC/CEC
Part Number: XJG14
Quick Summary
XJG14 expansion coupling from Eaton Crouse-Hinds absorbs rigid conduit movement in IMC systems. This helps prevent misalignment and costly rework in vibration-prone or thermally cycling installations. The product is NEC/CEC compliant and UL-listed for EMT and Rigid/IMC configurations, with suitability for ordinary/non-hazardous locations. By leveraging steel construction and a compact footprint, it delivers reliable performance in general industrial environments while remaining compatible with standard 1/2" trade-size conduit, streamlining installation and reducing field labor costs.
Product Information
Extended Description
XJG14 Eaton Crouse-Hinds: Eaton Crouse-Hinds series XJG expansion coupling, Rigid/IMC, Steel, 4" maximum conduit movement, 1/2" trade size
Product Name
Eaton Crouse-Hinds series XJG expansion coupling
Catalog Number
XJG14
UPC
782274914961
Product Length/Depth
8.3 in
Product Height
3.4 in
Product Width
5.1 in
Product Weight
2 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Type
Expansion
Conduit type
Rigid/IMC
Trade size
1/2"
Conduit movement - max
4"
Material
Steel
Crouse-Hinds series Conduit Expansion/Deflection Couplings brochure
Crouse-Hinds series XJG Conduit Expansion Couplings for Rigid/IMC catalog page
XJG Conduit Expansion Couplings for EMT and Rigid/IMC UL certification
XJG Conduit Expansion Couplings for EMT and Rigid/IMC UL certification
IF 343 - Type XJ Expansion Joints
IF 343 - Type XJ Expansion Joints
Expansion and Deflection Couplings
Expansion and Deflection Couplings
Feature: Steel construction provides rugged durability that resists impact and corrosion in harsh environments. Benefit: Extends service life and lowers maintenance costs in industrial facilities. Application: Ideal for long-term installations in manufacturing plants where conduit runs experience movement or vibration. Feature: 4" max conduit movement capability supports expansion and deflection without added hardware. Benefit: Reduces retrofit work and improves system reliability in dynamic processes. Application: Suitable for equipment rooms and process lines with thermal cycling. Feature: 1/2" trade size ensures broad compatibility with common conduit fits. Benefit: Simplifies design reviews and speeds procurement by using standard components. Application: Straightforward integration into existing rigid/IMC runs. Feature: Rigid/IMC suitability enables direct replacement or upgrade within current supports. Benefit: Maintains alignment with minimal routing changes. Application: Retrofit projects and new builds alike. Feature: Compliance with NEC/CEC and ordinary/non-hazardous area classification. Benefit: Regulatory alignment and safer installations with broad industrial applicability. Application: Electrical installations in general industrial zones.
Get a Quick Quote for a Eaton Crouse-Hinds XJG14
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds XJG14?
Enquire Now
FAQs
To install XJG14, verify the conduit is 1/2" trade size and that the installation will tolerate up to 4" of movement. Refer to the installation sheets (IF 343 - Type XJ Expansion Joints) for step-by-step guidance, proper alignment practices, and torque recommendations. Ensure all fasteners are secure before energizing the system.
XJG14 provides a maximum movement allowance of 4 inches. This capacity accommodates expansion, contraction, and some deflection in rigid/IMC conduit runs, reducing the need for additional joints or flexible segments and minimizing field rework during commissioning.
Yes. XJG14 is rated for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards. This makes it appropriate for general industrial facilities, commercial buildings, and other non-hazardous settings where reliable conduit movement management is required.
XJG14 is NEC/CEC compliant and UL-listed for EMT and Rigid/IMC configurations. Documentation also references Canada-specific UL listings. These certifications ensure regulatory acceptance and safety in typical industrial electrical installations, with area classification limited to ordinary/non-hazardous locations.
Using XJG14 reduces field labor and rework by providing a reliable, pre-engineered expansion joint that maintains conduit alignment under movement. It shortens installation time, supports compliant installations, and extends system longevity in dynamic plants, contributing to lower total cost of ownership and faster project timelines.
