Eaton Crouse-Hinds XJG18 Expansion - NEC/CEC
Part Number: XJG18
Quick Summary
XJG18 expansion coupling enables rigid/IMC conduit expansion in electrical installations for control panels. Engineers often struggle with thermal movement and misalignment that slow commissioning. It is NEC/CEC compliant and UL-listed for EMT and Rigid/IMC, with area classification Ordinary/Non-Hazardous locations and validated performance. This combination of certification and steel construction translates to safer installs and longer service life. Using XJG18 accelerates wiring tasks and helps maintain regulatory alignment in automation projects.
Product Information
Extended Description

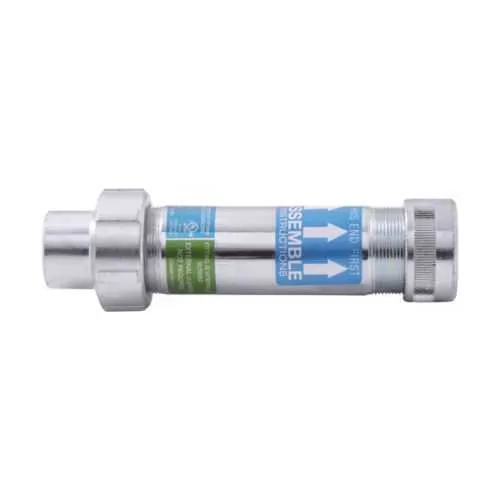

XJG18 Eaton Crouse-Hinds: Eaton Crouse-Hinds series XJG expansion coupling, Rigid/IMC, Steel, 8" maximum conduit movement, 1/2" trade size
Product Name
Eaton Crouse-Hinds series XJG expansion coupling
Catalog Number
XJG18
UPC
782274915104
Product Length/Depth
11 in
Product Height
2.25 in
Product Width
2.25 in
Product Weight
1.85 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Type
Expansion
Conduit type
Rigid/IMC
Trade size
1/2"
Conduit movement - max
8"
Material
Steel
Crouse-Hinds series Conduit Expansion/Deflection Couplings brochure
Crouse-Hinds series XJG Conduit Expansion Couplings for Rigid/IMC catalog page
XJG Conduit Expansion Couplings for EMT and Rigid/IMC UL certification
XJG Conduit Expansion Couplings for EMT and Rigid/IMC UL certification
IF 1508 - Assembly-Free XJG
IF 1508 - Assembly-Free XJG
Expansion and Deflection Couplings
Expansion and Deflection Couplings
Feature expansion/deflection up to 8 inches for rigid/IMC conduit movement → Business Impact reduces misalignment, eases thermal growth, and speeds commissioning → Application ideal for automation panels, machinery, and plant wiring. Feature steel construction for durability and vibration resistance → Business Impact improves service life and reduces replacement costs → Application suitable for harsh factory environments and long-term installations. Feature 1/2 inch trade size compatibility → Business Impact enables quick integration with standard conduit hardware, reducing design complexity → Application in retrofit and new-build control wiring. Feature NEC/CEC compliance and Ordinary/Non-Hazardous area classification; UL listings for EMT and Rigid/IMC → Business Impact ensures code-conformant, safe installations with third-party verification → Application in regulated facilities and multi-panel architectures. Feature installation documentation availability (IF 1508, catalogs, spec sheets) → Business Impact shortens onboarding time and minimizes field errors → Application for field commissioning and procurement teams. Feature 11 inch length, 2.25 inch height, 2.25 inch width, steel body, 1/2" trade size, 8" max movement → Business Impact clear physical footprint and performance envelope for accurate design modeling and BOM decisions.
Get a Quick Quote for a Eaton Crouse-Hinds XJG18
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds XJG18?
Enquire Now
FAQs
XJG18 is designed for control panel wiring and automation equipment where rigid/IMC conduit runs must accommodate thermal and vibrational movement. Its 1/2 inch trade size and 8 inch movement capacity support both retrofits and new installations, helping engineers maintain alignment while meeting NEC/CEC requirements. It is ideal for factory automation environments that demand durable, code-compliant conduit connections.
The XJG18 provides expansion capability up to 8 inches for rigid/IMC conduits, with a 1/2 inch trade size and steel construction. It measures 11 inches in length, 2.25 inches in height, and 2.25 inches in width, weighing 1.85 pounds. This combination supports accurate layout during thermal cycling and mechanical vibrations common in industrial settings.
Yes, XJG18 is UL-certified for EMT and Rigid/IMC configurations. It complies with NEC/CEC standards and carries an Ordinary/Non-Hazardous area classification, ensuring safe operation in typical plant environments. These certifications provide third-party validation for installation safety, regulatory compliance, and performance in automation wiring.
XJG18 is approved for Ordinary/Non-Hazardous locations and meets NEC/CEC standards. UL listings for EMT and Rigid/IMC further confirm its suitability for standard industrial facilities without specialized explosion-proof requirements. This makes it a reliable choice for general manufacturing environments and non-hazardous electrical installations.
Installation instructions are available as IF 1508 documents, along with the Eaton catalog pages and the expansion/deflection spec guide. You can access the IF1508 sheets, XJG catalog pages, and the Expansion and Deflection Couplings spec guide to verify installation steps, dimensions, and compatibility before procurement and field deployment.
