Eaton Crouse-Hinds XJG34 Expansion Coupling - NEC/CEC
Part Number: XJG34
Quick Summary
XJG34 expansion coupling by Eaton Crouse-Hinds provides adjustable conduit movement for rigid/IMC systems. In busy facilities, misalignment and stress from thermal expansion can derail schedules and shorten conduit life. It is designed for ordinary/non-hazardous locations and carries NEC/CEC compliance with UL Canada certification support, giving engineers confidence in code-adherent installations. By simplifying installation and ensuring durable performance, it reduces downtime, lowers maintenance costs, and supports reliable, compliant enclosures in automation environments. Compatible with standard installation accessories, it helps maintain alignment across panel interfaces and equipment cabinets. From a procurement perspective, the XJG34 reduces part variety and speeds up sourcing for 1" rigid/IMC conduits.
Product Information
Extended Description

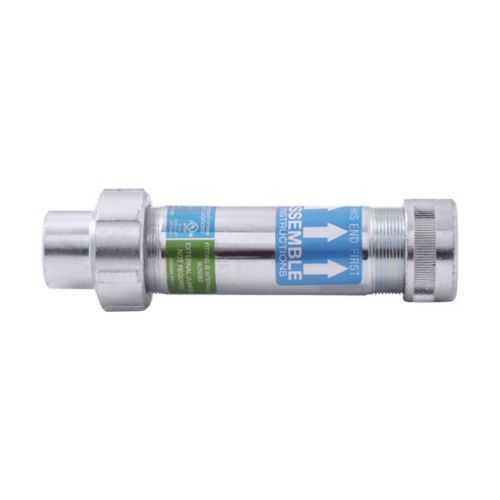

XJG34 Eaton Crouse-Hinds: Eaton Crouse-Hinds series XJG expansion coupling, Rigid/IMC, Steel, 4" maximum conduit movement, 1" trade size
Product Name
Eaton Crouse-Hinds series XJG expansion coupling
Catalog Number
XJG34
UPC
782274915784
Product Length/Depth
8.3 in
Product Height
3.4 in
Product Width
5.1 in
Product Weight
2.4 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Type
Expansion
Conduit type
Rigid/IMC
Trade size
1"
Conduit movement - max
4"
Material
Steel
Crouse-Hinds series Conduit Expansion/Deflection Couplings brochure
Crouse-Hinds series XJG Conduit Expansion Couplings for Rigid/IMC catalog page
XJG Conduit Expansion Couplings for EMT and Rigid/IMC Canadian certification
XJG Conduit Expansion Couplings for EMT and Rigid/IMC Canadian certification
IF 343 - Type XJ Expansion Joints
IF 343 - Type XJ Expansion Joints
Expansion and Deflection Couplings
Expansion and Deflection Couplings
Movement tolerance and size are optimized for 1" trade size rigid/IMC conduits, delivering up to 4" of movement. This capability absorbs expansion, contraction, and vibration across equipment racks and cabinet interfaces, significantly reducing field repairs, misaligned connections, and early wear. Compatibility with standard installation accessories—such as mounting brackets and gaskets—ensures fast, safe connections in tight panel interfaces and crowded cable trays. Material and durability: The steel housing provides sturdy protection against impact, corrosion risk in typical factory environments, and repeated flexing from machinery movement. It delivers excellent long-term reliability, minimizes maintenance cycles, and extends service life in ordinary/non-hazardous locations where rugged fittings are routinely required. The rugged construction pairs with common conduit fittings and factory-installed accessories to streamline field installation and reduce inventory complexity. Code compliance: NEC/CEC standards and area classification specify ordinary/non-hazardous locations, ensuring installations meet electrical codes. This combination supports safe, code-compliant installations, reduces compliance risk, and speeds inspection processes during commissioning. UL Canada certification references validate performance in cross-border projects, reinforcing procurement confidence and easing regulatory approvals on industrial sites. Physical footprint: 8.3 in length, 3.4 in height, 5.1 in width, and 2.4 lb weight define a compact, yet robust, solution. The compact form minimizes clearance needs and helps sequence wiring in crowded panels, while maintaining sufficient reach for movement. This size profile enables easier handling during installation and reduces freight and storage costs across maintenance cycles. Documentation and resources: Access installation instructions IF 343, catalogs, spec guides, and safety certifications from Eaton to support a fast, error-free deployment. This repository accelerates design reviews, decreases misinterpretation, and helps ensure consistent field practices across multiple projects. Use the downloadable assets to validate compatibility before purchasing, speeding procurement and reducing project risk.
