Eaton Crouse-Hinds XJGD104 Expansion/Deflection Coupling - NEC/CEC
Part Number: XJGD104
Quick Summary
XJGD104 expansion/deflection coupling absorbs movement in industrial conduit runs. Engineers often wrestle with vibration, thermal expansion, misalignment, and problematic joints that create stresses and leaks. UL certification for the US and Canada, NEC/CEC compliance, and ordinary/non-hazardous area classification provide essential regulatory confidence across plant environments. This steel coupling measures 4 inches in trade size, is 21.97 inches long, and tightly integrates with standard conduit systems. In addition to compliance, the rugged construction supports durable performance, straightforward installation, and reduced downtime, delivering long-term value for industrial electrical infrastructure projects.
Product Information
Extended Description

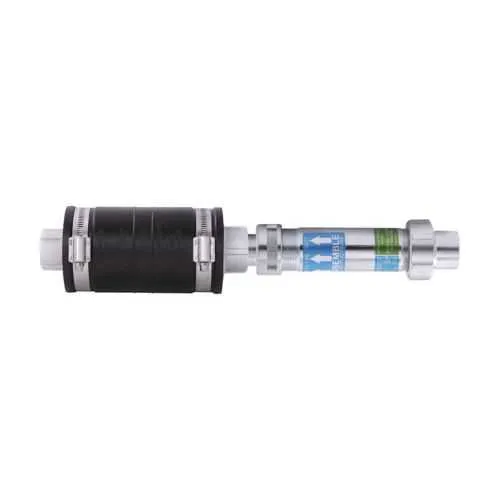

XJGD104 Eaton Crouse-Hinds: Eaton Crouse-Hinds series XJGD expansion/deflection coupling, Steel, 4"
Product Name
Eaton Crouse-Hinds series XJGD expansion/deflection coupling
Catalog Number
XJGD104
UPC
782274130842
Product Length/Depth
21.97 in
Product Height
6.75 in
Product Width
6.75 in
Product Weight
35 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Type
Expansion/deflection
Trade size
4"
Material
Steel
Crouse-Hinds series Conduit Expansion/Deflection Couplings brochure
Crouse-Hinds series XJGD Combination Expansion/Deflection Couplings catalog page
XJGD Combination Expansion/Deflection Couplings UL certification
XJGD Combination Expansion/Deflection Couplings UL certification
IF 343 - Type XJ Expansion Joints
IF 343 - Type XJ Expansion Joints
Expansion and Deflection Couplings
Expansion and Deflection Couplings
Feature: Steel construction provides rugged durability and reliable protection in harsh environments. Business Impact: Reduces damage from impact and wear, extending service life of conduit assemblies. Application: Ideal for tough shop floors and outdoor installations where protection of joints matters most in electrical systems. Feature: Expansion/deflection design absorbs movement from vibration and thermal cycling. Business Impact: Minimizes joint stress, prevents leaks, and lowers maintenance costs over the life of the system. Application: Essential for long conduit runs in manufacturing lines and data centers with temperature fluctuation. Feature: 4" trade size and 21.97 in overall length with a 6.75 in width/height and 35 lb weight. Business Impact: Provides compatibility with standard conduit and straightforward handling for field installs, reducing installation time. Application: Useful in retrofit projects and new builds requiring predictable fit and weight. Feature: NEC/CEC compliance and ordinary/non-hazardous area classification. Business Impact: Ensures regulatory alignment and simplifies approvals from safety and compliance teams. Application: Required in many industrial facilities to satisfy local codes and UL listings. Feature: Comprehensive documentation and installation resources (IF 343, brochures, catalogs, spec guides). Business Impact: Streamlines procurement, reduces field errors, and improves onboarding for installation crews. Application: Supports spec-to-field handoffs and ensures correct installation practices. Feature: Cross-compatibility with Eaton Crouse-Hinds XJ series fittings. Business Impact: Improves stocking efficiency and reduces compatibility risk across project portfolios. Application: Facilitates integrated conduit system design in complex facilities.
