Eaton XJGD84 Expansion/Deflection Coupling - NEC/CEC
Part Number: XJGD84
Quick Summary
The Eaton XJGD84 Expansion/Deflection Coupling is a steel conduit joint that accommodates movement in 3" conduit runs, reducing stress from thermal expansion and misalignment in industrial installations. Engineers often struggle with rigid joints that crack or shift during temperature swings, leading to downtime and costly repairs. This coupling carries NEC/CEC compliance and ordinary location area classification, with Canadian certification support, helping projects meet cross-border codes without rework. By leveraging the XJGD84 in conduit systems, buyers gain installation flexibility, improved reliability, and a safer, code-compliant path to scalable infrastructure. For procurement and maintenance teams, it delivers predictable performance, smoother field installation, and reduced total cost of ownership through fewer service interruptions.
Product Information
Extended Description

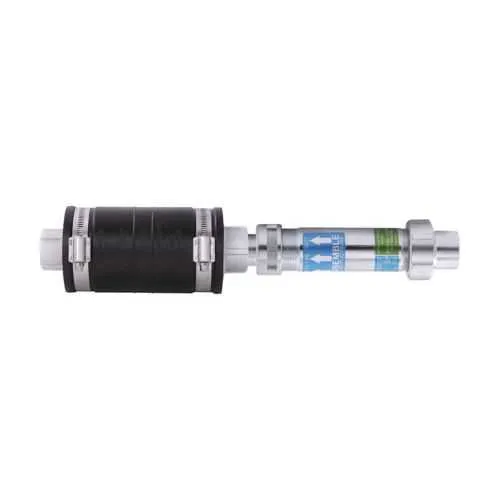

XJGD84 Eaton Crouse-Hinds: Eaton Crouse-Hinds series XJGD expansion/deflection coupling, Steel, 3"
Product Name
Eaton Crouse-Hinds series XJGD expansion/deflection coupling
Catalog Number
XJGD84
UPC
782274130828
Product Length/Depth
20.47 in
Product Height
5.72 in
Product Width
5.72 in
Product Weight
31.65 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Type
Expansion/deflection
Trade size
3"
Material
Steel
Crouse-Hinds series Conduit Expansion/Deflection Couplings brochure
Crouse-Hinds series XJGD Combination Expansion/Deflection Couplings catalog page
XJGD Combination Expansion/Deflection Couplings Canadian certification
XJGD Combination Expansion/Deflection Couplings Canadian certification
IF 1469 - 5 and 6 Type XJ Expansion Joints
IF 1469 - 5 and 6 Type XJ Expansion Joints
Expansion and Deflection Couplings
Expansion and Deflection Couplings
Feature: 3" trade size steel expansion/deflection coupling provides a robust, code-compliant joint; Business Impact: enables safe absorption of axial movement and misalignment, reducing joint failure risk; Application: 3" conduit runs in manufacturing floors, warehouses, and switchgear rooms. Feature: Steel construction offers high impact resistance and durability; Business Impact: minimizes replacement costs and downtime in harsh environments; Application: continuous-duty conduit installations in Ordinary/Non-Hazardous Locations. Feature: NEC/CEC compliance with ordinary location designation; Business Impact: simplifies design reviews and regulatory approvals; Application: facility upgrades and new builds requiring formal code adherence. Feature: Weight and dimensions (31.65 lb, 20.47 in length, 5.72 in height/width) facilitate handling and field installation; Business Impact: reduces installation time and labor costs; Application: on-site retrofits and new-construction pull-throughs. Feature: Compatibility with Crouse-Hinds series accessories and installation guidelines (IF 1469 docs); Business Impact: streamlines procurement, reduces part-count, and speeds commissioning; Application: integrated conduit management in complex systems. Feature: Certifications and cross-border listings (UL Canada, NEC/CEC); Business Impact: expands project eligibility and supplier confidence; Application: multinational projects and cross-site deployments with standardization.
Get a Quick Quote for a Eaton Crouse-Hinds XJGD84
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds XJGD84?
Enquire Now
FAQs
The XJGD84 is designed for a 3" trade size steel conduit system. For installation, follow Eaton/Crouse-Hinds IF 1469 instruction sheets and the expansion/deflection specifications in the catalog page. Ensure alignment with adjacent fittings, secure mounting, and proper torque on each locking mechanism to maintain movement clearance and code compliance.
The XJGD84 is specifically designed to absorb expansion and deflection in conduit runs, reducing stress on rigid joints. While exact movement values vary by installation, the 3" steel assembly provides reliable deflection control in ordinary locations, supporting long conduit runs and temperature-related expansion without compromising safety or code compliance.
Yes. The XJGD84 is listed for Ordinary/Non-Hazardous Locations and adheres to NEC/CEC standards. This makes it appropriate for general industrial facilities, warehouses, and commercial spaces where standard conduit movement control is required without special explosion-proof or hazardous-area ratings.
The XJGD84 carries NEC/CEC standards compliance and Ordinary/Non-Hazardous Location classification, with Canadian certification documentation referenced through UL listings. These certifications facilitate cross-border procurement and simplify regulatory reviews, helping projects meet national electrical codes and local requirements with confidence.
By absorbing conduit movement and minimizing joint stress, the XJGD84 reduces maintenance cycles and replacement costs for expansion joints. Its robust steel construction withstands industrial wear, supporting longer service intervals, lower downtime, and a favorable total cost of ownership in facilities with frequent temperature fluctuations.
