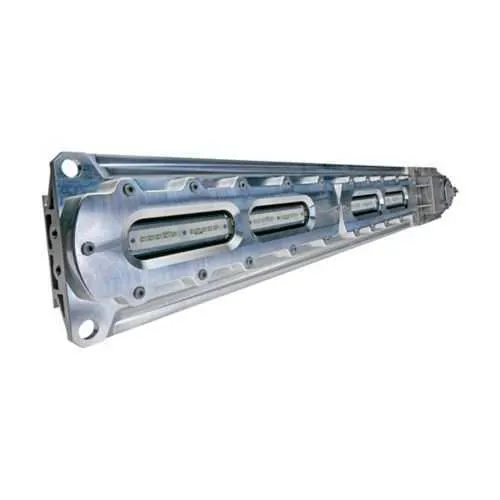

Eaton Crouse-Hinds XPLA4-UNV1-EM-P Hazard-Gard Linear LED - IP66/4X Hazardous Locations
Part Number: XPLA4-UNV1-EM-P
Quick Summary
Eaton Crouse-Hinds XPLA4-UNV1-EM-P Hazard-Gard Linear LED provides reliable emergency illumination for hazardous locations. In harsh industrial environments, power interruptions can halt production and jeopardize safety, making dependable back-up lighting essential. The fixture is designed for Class I, Division 1 area classifications and carries NEC/CEC compliance, IP66 ingress protection, and NEMA 4X ruggedness to withstand corrosive atmospheres. With an energy-efficient 102 lm/W LED platform and an integrated emergency battery back-up delivering up to 700 lm in emergency mode, it reduces running costs and maintenance complexity. This 4 ft, glass-lens luminaire fits a range of hazardous-location installations, enabling safer workflows and consistent compliance for industrial facilities, manufacturing plants, and chemical processing sites.
Product Information
Extended Description
XPLA4-UNV1-EM-P Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard XPLA linear LED light fixture, Cool white, 700 lm emergency mode, 4 ft, Glass lens, 7000 lm, 102 lm/W, Copper-free aluminum, Emergency battery back-up, 120-277 Vac, 127-300 Vdc, 73W
Product Name
Eaton Crouse-Hinds series Hazard-Gard XPLA linear LED light fixture
Catalog Number
XPLA4-UNV1-EM-P
UPC
662276959040
Product Length/Depth
48.2 in
Product Height
4.56 in
Product Width
6.5 in
Product Weight
37.8 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Color temperature
Cool white
Lamp length
4 ft
Lumens
7000
Emergency mode lumens
700
Lumens per watt
102
Voltage rating
120-277 Vac, 127-300 Vdc
Frequency rating
50/60 Hz
Lens material
Glass
Material
Copper-free aluminum
Wattage
73 W
Power factor
> 0.90
Special features
Emergency battery back-up
Crouse-Hinds series Hazard-Gard XPLA LED Linear brochure
Crouse-Hinds series Hazard-Gard XPLA LED Linear brochure
Crouse-Hinds series Hazard-Gard XPLA LED Linear brochure
Crouse-Hinds series Hazard-Gard XPLA LED Linear catalog page
Hazard-Gard XPLA Explosionproof Linear LED Light Fixtures UL certification (XPLA4 with Battery Back-up)
Hazard-Gard XPLA Explosionproof Linear LED Light Fixtures UL certification (XPLA4 with Battery Back-up)
Hazard-Gard XPLA Explosionproof Linear LED Light Fixtures UL certification (XPLA4 with Battery Back-up)
Hazard-Gard XPLA Explosionproof Linear LED Light Fixtures UL certification (XPLA4 with Battery Back-up)
IF 1905 - Hazard-Gard Linear XPLA LED Fixtures with EM
IF 1905 - Hazard-Gard Linear XPLA LED Fixtures with EM
Hazard-Gard XPL LED Explopsionproof Linear
Hazard-Gard XPL LED Explopsionproof Linear
Emergency back-up capability maintains essential illumination during power outages, reducing downtime and enabling safe egress in hazardous zones while meeting critical safety standards. The workaround is proven with 700 lm emergency output from a 7000 lm fixture, delivering reliable visibility without requiring separate power sources in emergencies. High efficacy at 102 lm/W lowers energy consumption and operating costs across large facilities, improving sustainability without compromising performance. Rugged certifications—IP66, NEMA 4X, and Class I/II/III ratings—protect the luminaire in corrosive, dusty, and damp environments, supporting uptime in chemical plants, oil and gas sites, and offshore operations. The 4 ft glass-lens design and copper-free aluminum housing offer durability, ease of cleaning, and long service life while minimizing maintenance. Broad voltage tolerance (120-277 Vac, 127-300 Vdc) simplifies retrofits and new installs alike, reducing stock variation and installation time. Cool white LED output ensures consistent color rendering for fast visual inspections and QA processes, aligning with industrial lighting standards and facility-wide design schemes.
Get a Quick Quote for a Eaton Crouse-Hinds XPLA4-UNV1-EM-P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds XPLA4-UNV1-EM-P?
Enquire Now
FAQs
The XPLA4-UNV1-EM-P is designed for Class I, Division 1 areas with NEC/CEC compliance and an IP66/NEMA 4X rating. It uses a 4 ft form factor with a glass lens and copper-free aluminum housing, enabling straightforward mounting in typical hazardous-location housings. Ensure secure fixture mounting, proper enclosure ingress protection, and adherence to local installation standards for hazardous environments. Refer to IF 1905 instructions for detailed mounting and wiring guidance.
It includes an integrated emergency battery back-up delivering up to 700 lm in emergency mode, ensuring safe egress and continued visibility when mains power fails. The fixture also provides 7000 lm normal operation with a 73 W draw and 120-277 Vac / 127-300 Vdc compatibility, enabling reliable performance during routine maintenance and outages across industrial facilities.
This fixture is rated for Hazardous/Classified Locations with NEC/CEC compliance, IP66 ingress protection, and a NEMA 4X enclosure. It supports Class I, Division 1 (and Class II, Division 1; Class III) locations, making it suitable for chemical, petrochemical, and other harsh settings.
Key features include high 102 lm/W efficacy, 7000 lm lumen output, and 73 W consumption, delivering energy efficiency and strong illumination. The glass lens protects the light from impacts, while copper-free aluminum housing provides corrosion resistance and reduced maintenance. The wide voltage range simplifies procurement and retrofits, improving overall installation efficiency.
Official documentation includes Crouse-Hinds Hazard-Gard XPLA LED brochures, catalogs, UL certification pages, IF1905 installation sheets, and the XPLA spec sheet. These resources support design validation, compliance checks, and retrofit planning for hazardous-location installations.
