XPLA4-UNV1-S917-P

Part Number: XPLA4-UNV1-S917-P
XPLA4-UNV1-S917-P
Manufacturer
Eaton Crouse-Hinds
Part number
XPLA4-UNV1-S917-P
Category

Product Information

Extended Description

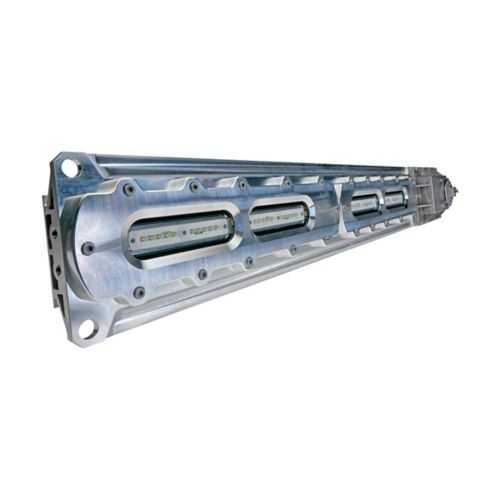

XPLA4-UNV1-S917-P Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard XPLA linear LED light fixture, Cool white, Painted gray epoxy finish, 4 ft, Glass lens, 8000 lm, 139 lm/W, Copper-free aluminum, -40°C to +65°C suitability, 120-277 Vac, 127-300 Vdc, 59W
Product Name
Eaton Crouse-Hinds series Hazard-Gard XPLA linear LED light fixture
Catalog Number
XPLA4-UNV1-S917-P
UPC
662276974654
Product Length/Depth
48.2 in
Product Height
4.56 in
Product Width
6.5 in
Product Weight
27 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Color temperature
Cool white
Lamp length
4 ft
Lumens
8000
Lumens per watt
139
Voltage rating
120-277 Vac, 127-300 Vdc
Frequency rating
50/60 Hz
Lens material
Glass
Finish
Painted gray epoxy
Material
Copper-free aluminum
Wattage
59W
Power factor
> 0.90
Special features
-40°C to +65°C suitability
Crouse-Hinds series DLC approved lighting products Crouse-Hinds series DLC approved lighting products Crouse-Hinds series DLC approved lighting products Crouse-Hinds series Hazard-Gard XPLA LED Linear catalog page Hazard-Gard XPLA Explosionproof Linear LED Light Fixtures Canadian certification Hazard-Gard XPLA Explosionproof Linear LED Light Fixtures Canadian certification Hazard-Gard XPLA Explosionproof Linear LED Light Fixtures Canadian certification Hazard-Gard XPLA Explosionproof Linear LED Light Fixtures Canadian certification IF 1905 - Hazard-Gard Linear XPLA LED Fixtures with EM IF 1905 - Hazard-Gard Linear XPLA LED Fixtures with EM Eaton Specification Sheet - XPLA4-UNV1-S917-P Eaton Specification Sheet - XPLA4-UNV1-S917-P
