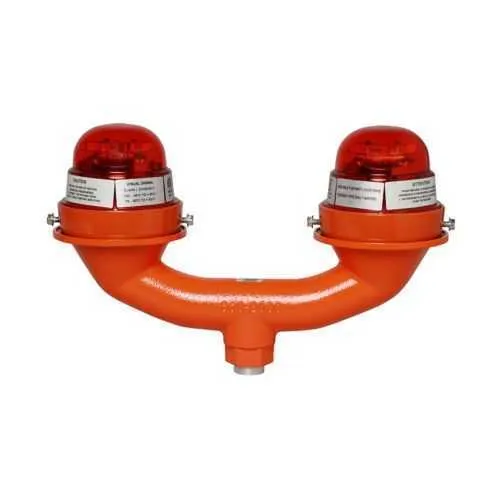

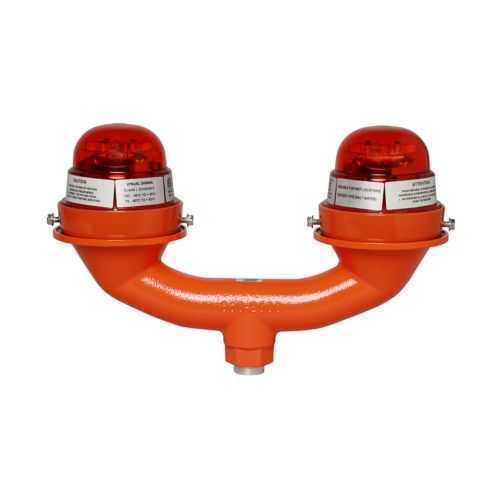

Eaton 12004-RTO-2R07-002 Side Marker - IP66 Rated LED Obstruction Lighting
Part Number: 12004-RTO-2R07-002
Quick Summary
Eaton 12004-RTO-2R07-002 Side Marker LED lighting delivers reliable obstruction signaling for industrial facilities. This solution addresses the common pain of fragile signage fixtures failing in harsh environments and inconsistent visibility at night or during inclement weather. It carries NEC/CEC compliance, IP66 ingress protection, and NEMA 4X enclosure, with Class I, Division 2 hazardous-location suitability for safe operation in restricted areas. The dual fixture design and surge-protected LED output support continuous operation while minimizing energy waste. With copper-free aluminum housing and polycarbonate globe, it pairs rugged durability with low maintenance, delivering long-term cost savings and improved safety in industrial, offshore, and petrochemical settings.
Product Information
Extended Description
12004-RTO-2R07-002 Eaton: Eaton Crouse-Hinds series side marker, Threaded 1" and 3/4" bottom hub, 50/60 Hz, Polycarbonate globe and lens, LED, Red, Copper-free aluminum, Surge protection, Dual fixture, low intensity, 120-240 Vac, 13W
Product Name
Eaton Crouse-Hinds series Side marker
Catalog Number
12004-RTO-2R07-002
UPC
786689904340
Product Length/Depth
14.75 in
Product Height
8.93 in
Product Width
5 in
Product Weight
4.6 lb
Compliances
FAA Transport Canada DGAC Mexico ICAO CE
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Type
Dual fixture, low intensity
Wattage
13W
Voltage rating
120-240 Vac
Frequency rating
50/60 Hz
Entry size
Threaded 1" and 3/4" bottom hub
Entry type
Bottom
Material
Copper-free aluminum
Globe material
Polycarbonate
Lens material
Polycarbonate
Lens color
Red
Special features
Surge protection
Feature: LED lamp with 13W power and broad 120–240 VAC, 50/60 Hz input. This configuration delivers energy-efficient illumination with a long LED life and minimal heat generation. Application: ideal for continuous obstruction lighting in industrial facilities, warehouses, and outdoor structures where reliability matters. Feature: Dual fixture, low-intensity output. This arrangement provides critical visibility while reducing glare and energy use. Application: supports compliance with regulatory lighting requirements for runways, ramps, and perimeter markers in manufacturing and utilities. Feature: IP66 ingress protection and NEMA 4X enclosure. These ratings shield electronics from dust, water spray, and corrosion, extending service intervals. Application: outdoor, harsh environments such as chemical plants, offshore platforms, and remote installations where uptime is essential. Feature: Copper-free aluminum housing with polycarbonate globe and red lens, plus surge protection. The copper-free alloy minimizes galvanic corrosion, while the polycarbonate globe resists impact. Application: signaling in hazardous locations or power-quality challenged areas that require surge resilience. Feature: Threaded 1" and 3/4" bottom hub entry; bottom-entry design for versatile mounting. This enables fast pole, wall, or conduit attachment with common fittings. Application: retrofit or new installations across industrial sites, including hazardous-locations zones. Feature: Certifications and compliance alignment. NEC/CEC standards, Class I Division 2 rating, IP66, NEMA 4X, CE, FAA, Transport Canada, DGAC Mexico, ICAO. These align with global safety and regulatory expectations, reducing procurement risk and supporting faster project approvals.
Get a Quick Quote for a Eaton 12004-RTO-2R07-002
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 12004-RTO-2R07-002?
Enquire Now
FAQs
This side marker features threaded 1" and 3/4" bottom hub entries with bottom-entry mounting, allowing flexible attachment to poles, walls, or conduit runs. The copper-free aluminum housing and polycarbonate globe simplify field modifications, while the dual fixture design supports quick retrofits in existing installations. Overall, the unit accommodates a wide range of standard conduit fittings and mounting heights for industrial sites.
The device operates at 13W LED with a broad input of 120–240 VAC and a frequency range of 50/60 Hz. This combination delivers energy-efficient operation with consistent illumination, suitable for both low- and high-voltage industrial electrical environments. Surge protection further protects circuitry from transient spikes common in heavy equipment facilities.
Yes. The marker is rated for Hazardous/Classified Locations with NEC/CEC compliance, Class I, Division 2. It also features IP66 ingress protection and a NEMA 4X enclosure. Additional certifications include CE, FAA, Transport Canada, DGAC Mexico, and ICAO, ensuring regulatory alignment for global deployments.
The unit supports NEC/CEC standards, IP66 protection, NEMA 4X enclosure, and a Class I, Division 2 hazardous-location rating. It carries CE marking and aligns with aviation and international safety requirements (FAA, Transport Canada, DGAC Mexico, ICAO). These certifications minimize compliance risk during procurement and project commissioning.
The side marker uses a copper-free aluminum housing with a polycarbonate globe and lens, and a red lens color. It includes surge protection to withstand power fluctuations. These features deliver corrosion resistance, impact durability, and extended service life, reducing downtime and maintenance for outdoor and hazardous-location installations.
