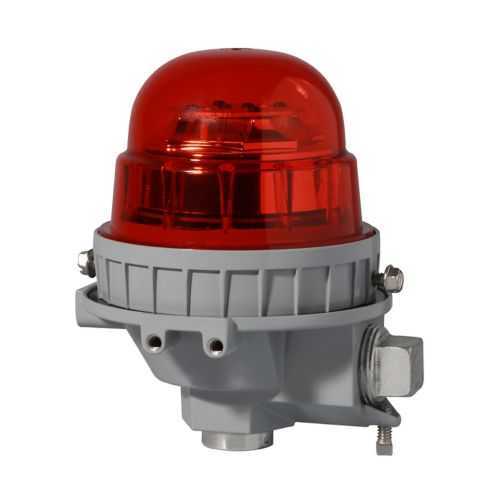

Eaton 12004-RTO-CR27-001 L-810 side marker - IP66
Part Number: 12004-RTO-CR27-001
Quick Summary
Eaton 12004-RTO-CR27-001 is a LED L-810 side marker designed for aviation and industrial obstruction lighting applications. When selecting markers for harsh environments, engineers need reliability that minimizes downtime and maintenance costs. This unit delivers IP66 and NEMA 4X protection, CE and aviation certifications (FAA, ICAO, Transport Canada, DGAC Mexico) to meet global standards. With surge protection, low energy use, and broad voltage tolerance, it offers compelling value for multi-site deployments while enabling simpler procurement and inventory management for global projects.
Product Information
Extended Description
12004-RTO-CR27-001 Eaton: Eaton Crouse-Hinds series L-810 side marker, Threaded 1" and 3/4" bottom hub, 50/60 Hz, Polycarbonate globe and lens, LED, Red, Copper-free aluminum, Surge protection, Single fixture, low intensity with infrared, 120-240 Vac, 5.5W
Product Name
Eaton Crouse-Hinds series L-810 side marker
Catalog Number
12004-RTO-CR27-001
UPC
786689904371
Product Length/Depth
5 in
Product Height
5.93 in
Product Width
5 in
Product Weight
2 lb
Compliances
FAA Transport Canada DGAC Mexico ICAO CE
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Type
Single fixture, low intensity with infrared
Wattage
5.5W
Voltage rating
120-240 Vac
Frequency rating
50/60 Hz
Entry size
Threaded 1" and 3/4" bottom hub
Entry type
Bottom
Material
Copper-free aluminum
Globe material
Polycarbonate
Lens material
Polycarbonate
Lens color
Red
Special features
Surge protection
Feature → Business Impact → Application: LED luminaire with 5.5W consumption delivers bright, reliable obstruction lighting while minimizing energy costs and heat generation for long-term life-cycle savings in industrial facilities. The copper-free aluminum housing resists corrosion in outdoor, marine, and chemical-adjacent environments, reducing replacement cycles and lowering lifecycle maintenance expenses for mining, oil & gas, and processing plants. The polycarbonate globe and lens provide impact resistance and high optical clarity, improving visibility and reducing misinterpretation in busy airside or yard operations. Surge protection safeguards against transient spikes, increasing uptime and decreasing fault-related service calls in airports and port facilities. The threaded 1" and 3/4" bottom hub entry simplifies retrofit and new installs alike, supporting fast, tool-light installation in constrained spaces. Compatibility with 120–240 VAC and 50/60 Hz ensures broad utility across regions, while 4X/NEMA 4X and IP66 ratings deliver consistent performance in ordinary locations and harsh outdoor locations alike.
Get a Quick Quote for a Eaton 12004-RTO-CR27-001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 12004-RTO-CR27-001?
Enquire Now
FAQs
The marker is rated IP66 with a NEMA 4X enclosure, designed to withstand jetting water, dust ingress, and harsh outdoor conditions. The copper-free aluminum housing and polycarbonate globe enhance durability in exposed locations, reducing maintenance cycles in airports, industrial yards, and outdoor facilities.
Yes. This unit is specified as an L-810 side marker with aviation compatibility. It supports global aviation standards through CE and certifications aligned with FAA, ICAO, Transport Canada, and DGAC Mexico, making it appropriate for airport and airside applications as well as remote industrial sites.
The device uses a 5.5W LED with a voltage rating of 120–240 VAC and a frequency of 50/60 Hz. Its surge-protected design helps maintain performance during spikes, minimizing waveform-related issues and extending service life in fluctuating power conditions.
The marker features threaded 1" and 3/4" bottom hub entries with bottom entry design, enabling flexible installation on poles, structures, or mounting brackets. Its compact 5 x 5 inch footprint and lightweight 2 lb weight simplify retrofits and new deployments in constrained spaces.
It carries CE and aviation-related approvals (FAA, ICAO, Transport Canada, DGAC Mexico), plus IP66 and NEMA 4X ratings for broad compliance in ordinary and harsh locations. This combination supports multi-region deployments and helps satisfy regulatory and safety requirements for critical lighting installations.
