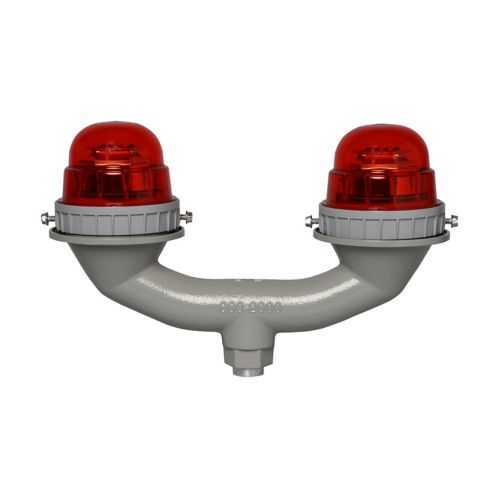

Eaton 12004-RTO-CR27-002 Side Marker - IP66 Rating
Part Number: 12004-RTO-CR27-002
Quick Summary
Eaton 12004-RTO-CR27-002 side marker delivers LED obstruction lighting for industrial facilities. Facilities face reliability gaps in harsh environments, leading to missed signals and safety concerns. This unit carries IP66 and NEMA 4X ratings with CE approval, plus aviation-ready certifications for broader compliance. Its 120-240 Vac, 50/60 Hz operation ensures compatibility with existing power systems, while the copper-free aluminum housing provides corrosion resistance in outdoor environments. The design also supports easy retrofits and scalable signaling, helping facilities meet safety standards while controlling operating costs.
Product Information
Extended Description
12004-RTO-CR27-002 Eaton: Eaton Crouse-Hinds series L-810 side marker, Threaded 1" and 3/4" bottom hub, 50/60 Hz, Polycarbonate globe and lens, LED, Red, Copper-free aluminum, Surge protection, Dual fixture, low intensity with infrared, 120-240 Vac, 11W
Product Name
Eaton Crouse-Hinds series L-810 side marker
Catalog Number
12004-RTO-CR27-002
UPC
786689904364
Product Length/Depth
14.75 in
Product Height
8.93 in
Product Width
5 in
Product Weight
4.6 lb
Compliances
FAA Transport Canada DGAC Mexico ICAO CE
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Type
Dual fixture, low intensity with infrared
Wattage
11W
Voltage rating
120-240 Vac
Frequency rating
50/60 Hz
Entry size
Threaded 1" and 3/4" bottom hub
Entry type
Bottom
Material
Copper-free aluminum
Globe material
Polycarbonate
Lens material
Polycarbonate
Lens color
Red
Special features
Surge protection
LED dual fixture with infrared low intensity offers visible signaling while minimizing energy use, reducing ongoing operating costs and maintenance. The business impact is straightforward: longer intervals between service cycles and lower energy bills translate to improved uptime for critical facilities such as airfields or remote substations. This configuration is ideal for applications demanding reliable, low-profile signaling in harsh environments. IP66 and NEMA 4X-rated copper-free aluminum housing delivers superior weather resistance and corrosion protection, extending fixture life in coastal, industrial, and offshore locations while reducing replacement frequency and total cost of ownership. The bottom hub entry accommodates threaded 1" and 3/4" fittings, enabling flexible installations and simple retrofits on existing poles or structures; this saves time and labor during modernization projects. Polycarbonate globe and lens, with a red lens option, provide robust impact resistance and high conspicuity for runway and hazard signaling. Surge protection guards electronics against transient surges, minimizing downtime and protecting investment. The 11W LED, coupled with 120–240 Vac operation and 50/60 Hz compatibility, supports efficient, stable performance across global sites. Compliance with CE and aviation standards (FAA, Transport Canada, DGAC Mexico, ICAO) reinforces regulatory alignment, while NEC/CEC standards ensure proper electrical practices in diverse markets. The dual fixture design, along with infrared low-intensity capability, delivers versatile signaling for both permanent installations and temporary or remote deployments, supporting safer operations with fewer strikes against fatigue or misinterpretation of signals.
Get a Quick Quote for a Eaton 12004-RTO-CR27-002
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 12004-RTO-CR27-002?
Enquire Now
FAQs
Installers mount the unit on a compatible surface using the threaded 1" or 3/4" bottom hub, ensuring the sealed enclosure remains intact. De-energize power before wiring, then connect to a 120–240 Vac supply at 50/60 Hz. Verify IP66/NEMA 4X seals, secure mounting hardware, and test both LED operation and infrared (if configured) prior to commissioning.
Key electrical specs include an 11 W LED lamp, voltage rating 120–240 Vac, 50/60 Hz operation, and IP66/NEMA 4X-rated housing. The unit uses a copper-free aluminum enclosure with a polycarbonate globe and red lens, and it includes surge protection. It is designed for reliable operation in outdoor environments with a low overall energy footprint.
This product is classified for Ordinary/Non-Hazardous Locations. It is not intended for use in hazardous or explosive atmospheres. For such environments, consult Eaton for alternative lighting solutions that meet relevant IEC, NEC/CEC, and local safety standards; always verify site-specific classifications before installation.
The marker carries CE, FAA, Transport Canada, DGAC Mexico, and ICAO approvals, aligning aviation signaling with international regulatory requirements. NEC/CEC standards govern electrical installation practices. These certifications matter because they reduce procurement risk, enable cross-border deployments, and ensure the signaling meets safety and regulatory expectations for outdoor, aviation-adjacent, and industrial sites.
The 11 W LED with 120–240 Vac operation yields low energy costs, while surge protection reduces transient damage risk. Copper-free aluminum housing resists corrosion for longer life in harsh environments, lowering replacement and maintenance expenses. The infrared low-intensity option and dual fixture design improve signal reliability and reduce required maintenance visits, contributing to a favorable total cost of ownership.
