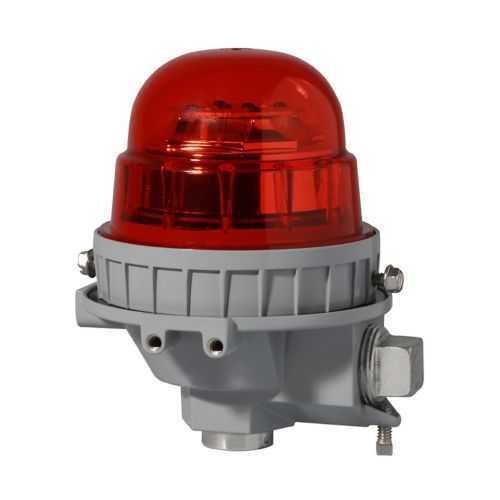

Eaton 12004-RTO-CR27-004 LED Obstruction Light - IP66
Part Number: 12004-RTO-CR27-004
Quick Summary
The Eaton 12004-RTO-CR27-004 LED obstruction light provides reliable visibility for industrial structures. Retrofits often struggle with inconsistent mounting, weather exposure, and uncertain compliance. It carries FAA, Transport Canada, ICAO, and CE compliance, IP66 ingress protection, and a rugged NEMA 4X enclosure. Designed for retrofit single fixtures, it combines a low power of 5.5W with 120–240 VAC operation to reduce energy costs and maintenance while improving site safety. Featuring surge protection and infrared low-intensity options, this marker delivers dependable performance in harsh environments and aligns with industry best practices for industrial obstruction lighting.
Product Information
Extended Description
12004-RTO-CR27-004 Eaton: Eaton Crouse-Hinds series L-810 side marker, Threaded 1" and 3/4" bottom hub, 50/60 Hz, Polycarbonate globe and lens, LED, Red, Copper-free aluminum, Surge protection, Retrofit single fixture, low intensity with infrared, 120-240 Vac, 5.5W
Product Name
Eaton Crouse-Hinds series L-810 side marker
Catalog Number
12004-RTO-CR27-004
UPC
786689904418
Product Length/Depth
5 in
Product Height
3.06 in
Product Width
5 in
Product Weight
1.25 lb
Compliances
FAA Transport Canada DGAC Mexico ICAO CE
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Type
Retrofit single fixture, low intensity with infrared
Wattage
5.5W
Voltage rating
120-240 Vac
Frequency rating
50/60 Hz
Entry size
Threaded 1" and 3/4" bottom hub
Entry type
Bottom
Material
Copper-free aluminum
Globe material
Polycarbonate
Lens material
Polycarbonate
Lens color
Red
Special features
Surge protection
Feature: Low-power LED lamp and surge protection. Business Impact: Reduces energy consumption and protects the fixture from power irregularities, lowering operating costs and replacement risk. Application: Suitable for long-life operation in rail yards, airports, and industrial facilities where ongoing visibility is critical. Feature: Retrofit single fixture design with bottom-entry and threaded hubs (1" and 3/4" bottom hub). Business Impact: Simplifies installation, minimizes downtime, and preserves existing mounting footprints. Application: Quick upgrades on aging obstructions along runways, docks, and storage facilities. Feature: IP66 ingress protection and NEMA 4X enclosure. Business Impact: Delivers reliable weather resistance and corrosion protection in harsh outdoor environments, reducing unplanned maintenance. Application: Offshore platforms, coastal facilities, and hazy/ dusty industrial sites. Feature: Copper-free aluminum housing with polycarbonate globe and lens; red lens. Business Impact: Combines light weight with superior durability and visibility, lowering maintenance costs while meeting aviation-grade visibility requirements. Application: Exterior markers near airstrips, helipads, and industrial complexes. Feature: 120-240 VAC, 50/60 Hz operation; 5.5W LED; low-intensity with infrared option and surge protection. Business Impact: Enables broad electrical compatibility, steady performance across regions, and reduced energy footprint. Application: Retrofit projects across multi-site operations seeking compliant, energy-efficient obstruction lighting.
Get a Quick Quote for a Eaton 12004-RTO-CR27-004
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 12004-RTO-CR27-004?
Enquire Now
FAQs
This unit features threaded 1" and 3/4" bottom hubs and bottom-entry design, allowing standard conduit connections. Ensure a proper gasket seal, mount to a compatible bracket or backplate, and tighten fittings to manufacturer torque specs to maintain IP66 integrity during installation.
The fixture complies with FAA, Transport Canada, ICAO, and CE requirements, supports Ordinary/Non-Hazardous locations, and carries IP66 ingress protection with a NEMA 4X enclosure, aligning with NEC/CEC standards for robust industrial illumination.
Yes. The product is specified for Ordinary/Non-Hazardous Locations, making it appropriate for general industrial sites, yards, and structures that require reliable obstruction lighting without hazardous-zone classifications.
The unit operates at 120-240 VAC, 50/60 Hz, consuming 5.5W in LED illumination. It includes surge protection, delivering efficient performance with low power draw across diverse regional power grids.
The retrofit single fixture design simplifies upgrading existing markers, reduces downtime, preserves mounting footprints, and supports rapid replacement with reliable LED obstruction lighting suitable for airfields, industrial sites, and offshore platforms.
