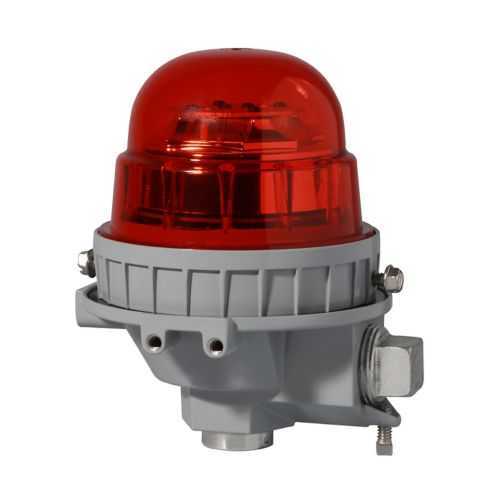

Eaton 12004-RTO-CR28-001 L-810 Side Marker - IP66
Part Number: 12004-RTO-CR28-001
Quick Summary
Eaton 12004-RTO-CR28-001 L-810 side marker is a weatherproof LED obstruction light for industrial assets. When markers fail or drift out of compliance, maintenance costs rise and asset visibility suffers. This unit carries CE and aviation certifications, along with IP66 and NEMA 4X protections, ensuring rugged performance in harsh environments. Designed for outdoor use, it integrates with standard 24-48 Vdc supplies and delivers low-energy, high-visibility operation, making it a reliable choice for industrial lighting and aviation-grade obstruction lighting needs.
Product Information
Extended Description
12004-RTO-CR28-001 Eaton: Eaton Crouse-Hinds series L-810 side marker, Threaded 1" and 3/4" bottom hub, Polycarbonate globe and lens, LED, Red, Copper-free aluminum, Surge protection, Single fixture, low intensity with infrared, 24-48 Vdc, 5W
Product Name
Eaton Crouse-Hinds series L-810 side marker
Catalog Number
12004-RTO-CR28-001
UPC
786689904388
Product Length/Depth
5 in
Product Height
5.93 in
Product Width
5 in
Product Weight
2 lb
Compliances
FAA Transport Canada DGAC Mexico ICAO CE
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Type
Single fixture, low intensity with infrared
Wattage
5W
Voltage rating
24-48 Vdc
Entry size
Threaded 1" and 3/4" bottom hub
Entry type
Bottom
Material
Copper-free aluminum
Globe material
Polycarbonate
Lens material
Polycarbonate
Lens color
Red
Special features
Surge protection
Feature: LED illumination with polycarbonate globe and red lens. Business Impact: Delivers long service life with high visibility while reducing replacement cycles. Application: Towers, warehouses, and outdoor facilities requiring reliable obstruction lighting. Feature: 5W power at 24-48 Vdc. Business Impact: Low energy consumption lowers operating costs and supports green initiatives. Application: Remote installations and solar-assisted sites where power efficiency matters. Feature: Threaded 1" and 3/4" bottom hub entry. Business Impact: Simplified installation with flexible mounting on standard hubs. Application: poles, frames, and building perimeters. Feature: Copper-free aluminum housing with IP66 and 4X NEMA rating. Business Impact: Superior corrosion resistance and environmental protection reduce maintenance in marine and industrial environments. Application: Offshore, chemical, and outdoor industrial settings. Feature: Infrared low-intensity operation. Business Impact: Improves compatibility with control systems and reduces visual clutter from adjacent lighting. Application: Integrated signaling with infrared monitoring or remote sensing. Feature: Surge protection. Business Impact: Protects against transient power events, extending service life and reducing downtime. Application: Harsh electrical environments and frequent power fluctuations. Feature: Certifications including FAA, Transport Canada, DGAC Mexico, ICAO, and CE. Business Impact: Ensures regulatory compliance for aviation and safety standards, minimizing project risks. Application: Airports, heliports, industrial facilities near flight paths, and compliant marker deployments.
Get a Quick Quote for a Eaton 12004-RTO-CR28-001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 12004-RTO-CR28-001?
Enquire Now
FAQs
This marker is designed for outdoor, ordinary locations where obstruction lighting is required. It fits on towers, building edges, and similar structures, thanks to its bottom hub mounting and IP66-rated rugged housing. With a 5W LED and 24-48 Vdc input, it delivers reliable visibility while meeting aviation and safety standards for non-hazardous environments.
The unit is built to align with aviation standards including CE, FAA/Transport Canada, DGAC Mexico, and ICAO. Its IP66 enclosure, NEMA 4X rating, and red LED signaling ensure visibility and durability in outdoor environments typical of aviation obstruction lighting projects, helping facilities stay compliant during inspections and audits.
Yes. The 12004-RTO-CR28-001 operates directly from a 24-48 Vdc source and consumes only 5W, making it energy efficient. The low power requirement simplifies integration with existing power systems and supports long-term operating costs, even in remote or solar-assisted installations.
The fixture features threaded bottom hubs in 1" and 3/4" sizes, enabling flexible mounting on standard poles, frames, or secure structures. This compatibility simplifies retrofits and new installs alike, reducing hardware variety, procurement time, and installation complexity while maintaining strong IP66-rated protection.
LED technology delivers extended service life versus traditional lamps, lowering maintenance intervals. The polycarbonate globe and copper-free aluminum housing resist impact and corrosion, while surge protection guards against power transients. Together with aviation-grade certifications, this reduces downtime, maintenance costs, and total cost of ownership for rugged outdoor applications.
