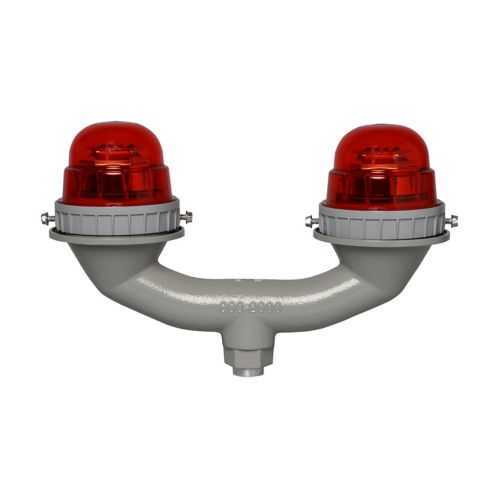

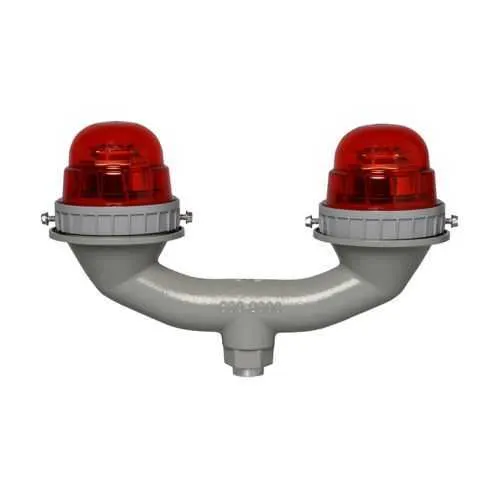

Eaton 12004-RTO-CR28-002 L-810 Side Marker - IP66
Part Number: 12004-RTO-CR28-002
Quick Summary
The Eaton 12004-RTO-CR28-002 L-810 side marker is a rugged LED obstruction light designed to mark hazards on external structures in industrial facilities. This unit helps prevent downtime and miscommunication caused by dim or failing signaling in harsh environments. With IP66 and NEMA 4X enclosures, CE certification, and aviation-grade approvals (FAA, Transport Canada, ICAO), it meets stringent global standards while resisting moisture, dust, and corrosion. The compact, dual fixture design delivers reliable low-intensity signaling with infrared capability, powered by 24–48 Vdc at 10 watts for efficient operation. Optimized for maintenance teams, it minimizes spare parts and simplifies stocking, installation, and compliance across multiple sites.
Product Information
Extended Description
12004-RTO-CR28-002 Eaton: Eaton Crouse-Hinds series L-810 side marker, Threaded 1" and 3/4" bottom hub, Polycarbonate globe and lens, LED, Red, Copper-free aluminum, Surge protection, Dual fixture, low intensity with infrared, 24-48 Vdc, 10W
Product Name
Eaton Crouse-Hinds series L-810 side marker
Catalog Number
12004-RTO-CR28-002
UPC
786689904401
Product Length/Depth
14.75 in
Product Height
8.93 in
Product Width
5 in
Product Weight
4.6 lb
Compliances
FAA Transport Canada DGAC Mexico ICAO CE
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Type
Dual fixture, low intensity with infrared
Wattage
10W
Voltage rating
24-48 Vdc
Entry size
Threaded 1" and 3/4" bottom hub
Entry type
Bottom
Material
Copper-free aluminum
Globe material
Polycarbonate
Lens material
Polycarbonate
Lens color
Red
Special features
Surge protection
Feature → Business Impact → Application: The dual LED fixture delivers reliable signaling with infrared capability, reducing energy consumption and maintenance cycles while maintaining visibility in demanding environments. This translates to lower operating costs and predictable performance on towers, infrastructure facades, and offshore platforms. Feature → Compatibility → Installation: 24–48 Vdc operation and 10W power enable seamless integration with existing control gear and power budgets, supporting retrofits across multi-site operations without upgrading power infrastructure. Feature → Durability → Compliance: IP66 and NEMA 4X enclosures, copper-free aluminum housing, and polycarbonate globe provide corrosion resistance and dust/water protection, ensuring uptime in coastal plants, chemical facilities, and outdoor installations. Feature → Mounting Flexibility → Serviceability: Threaded 1" and 3/4" bottom hubs with bottom-entry mounting simplify alignment and field service, reducing install time and enabling quick replacements. Feature → Reliability → ROI: Surge protection and red lens ensure long service life under harsh conditions, lowering total cost of ownership and improving asset availability in critical signaling applications. Feature → Industry Context → Value: The unit aligns with NEC/CEC standards, CE compliance, and aviation obstruction lighting expectations, supporting safer operations in airports, helipads, and industrial campuses while meeting regulatory requirements.
Get a Quick Quote for a Eaton 12004-RTO-CR28-002
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 12004-RTO-CR28-002?
Enquire Now
FAQs
The unit supports bottom-entry mounting with threaded 1" and 3/4" hubs, enabling flexible installation on poles, structures, or mounting plates. This versatility simplifies retrofits and new installations across multi-site facilities, reducing rework and ensuring alignment with existing wiring conduits.
It operates at 24–48 Vdc and draws 10W of power. The LED design delivers low current consumption while maintaining high visibility, with surge protection to guard against transient voltages common in industrial and outdoor environments.
Yes. It features IP66-rated ingress protection and a NEMA 4X rated enclosure, plus a copper-free aluminum housing and polycarbonate globe, delivering robust resistance to dust, water, and corrosion for coastal, offshore, and chemical facility applications.
The unit is CE certified and complies with aviation standards including FAA, Transport Canada, and ICAO. It also aligns with NEC/CEC standards and is suitable for Ordinary/Non-Hazardous locations, ensuring regulatory compliance across international sites.
LED-based signaling provides reduced power draw and longer life, lowering energy costs and replacement frequency. Surge protection minimizes downtime, and the mounting versatility speeds field upgrades, delivering a favorable total cost of ownership for facilities with strict safety and compliance requirements.
