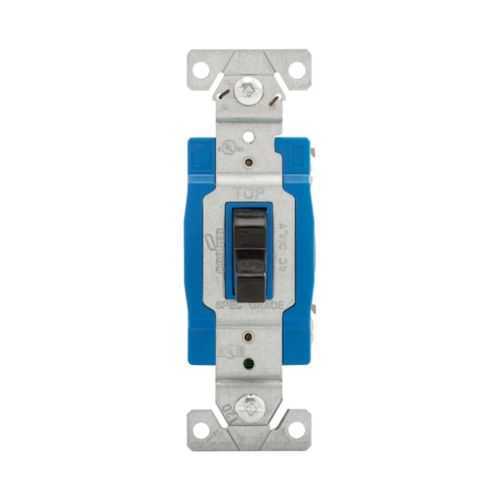

Eaton 1201BK Toggle Switch - cULus Listed, 15A, 120/277V
Part Number: 1201BK
Quick Summary
The Eaton 1201BK toggle switch provides reliable on/off control for industrial equipment in control panels. In challenging environments, achieving consistent performance and safety can be hard, especially under vibration, heat, or frequent cycle operation. This model carries cULus listing, NOM recognition, and Federal Specification Classification 6241 05, underscoring its suitability for rigorous electrical installations. The construction-grade design uses polycarbonate housing for durability and provides back-and-side wiring with a wall-mount option, simplifying installation in compact enclosures. For procurement teams, the standard 15A, 120/277V rating and screw terminals offer predictable interoperability with #14-10 AWG conductors, lowering integration risk and speeding project timelines.
Product Information
Extended Description
1201BK Eaton: Eaton construction grade toggle switch, #14-10 AWG, 15A, Industrial, Wall, 120/277V, Back and side, Screw, Black, Single-Pole, Single-Pole, Polycarbonate
Product Name
Eaton construction grade toggle switch
Catalog Number
1201BK
UPC
032664735493
Product Length/Depth
1.03 in
Product Height
4.19 in
Product Width
1.39 in
Product Weight
0.025 lb
Certifications
cULus Listed NOM Federal Specification Classification 6241 05
Amperage Rating
15A
Torque rating
14 lbf-inch
Voltage rating
120/277 V
Wiring method
Back and side
Mounting method
Wall
Color
Black
Material
Polycarbonate
Allowable wire size
#14-10 AWG
Application
Industrial
Connector type
Screw
Number Of Poles
Single-pole
Switch type
Single-pole
Type
Toggle switch
The 15A at 120/277V rating defines the load capacity for typical industrial circuits, delivering predictable performance and reducing the risk of overload. This reliability translates into longer equipment life and fewer unplanned outages in control panels controlling motors, conveyors, and process equipment. The back-and-side wiring option plus screw terminals provide flexible, field-friendly installation that minimizes wiring errors and speeds panel assembly, especially in limited-space enclosures. The polycarbonate housing delivers robust impact resistance and chemical tolerance, sustaining performance in factory floors, wet environments, and high-traffic areas without degrading appearance. Wall-mount compatibility enables compact layouts and easier service access, reducing downtime during maintenance. Certifications such as cULus Listed, NOM, and Federal Specification 6241 05 support regulatory compliance and procurement confidence for industrial programs. The overall design emphasizes interoperability with #14-10 AWG conductors, ensuring smooth integration with standard electrical cables and components while maintaining a compact footprint for space-constrained panels.
Get a Quick Quote for a Eaton 1201BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1201BK?
Enquire Now
FAQs
The 1201BK supports back and side wiring with screw terminals and accepts conductors in the #14-10 AWG range. This wiring flexibility simplifies panel layout, reduces field splice work, and helps ensure a secure, code-compliant connection in tight control panels and industrial enclosures.
Yes. The 1201BK is rated for 120/277V at 15A, making it suitable for a wide range of industrial control panels, wall-mounted switches, and equipment enclosures. Its single-pole design provides straightforward integration with standard line-voltage circuitry and protects against unintended operation in busy environments.
The switch carries cULus Listed, NOM, and Federal Specification Classification 6241 05. These certifications indicate compliance with essential electrical safety and performance standards, facilitating market access, plant-wide safety conformity, and reliable procurement for regulated industrial facilities.
For wall-mounted installation, ensure the mounting location supports the switch’s dimensions and torque. Use back-and-side wiring with #14-10 AWG conductors, secure screw terminals to prevent loosening, and verify IP-rated or indoor environment suitability. The polycarbonate housing provides durability against impact and chemical exposure common in manufacturing plants.
The 1201BK offers durable construction, a long service life under vibration and temperature variation, and fast, predictable installation. This reduces maintenance frequency, minimizes unplanned downtime, and lowers total cost of ownership by simplifying wiring, improving panel reliability, and ensuring regulatory compliance across industrial applications.
