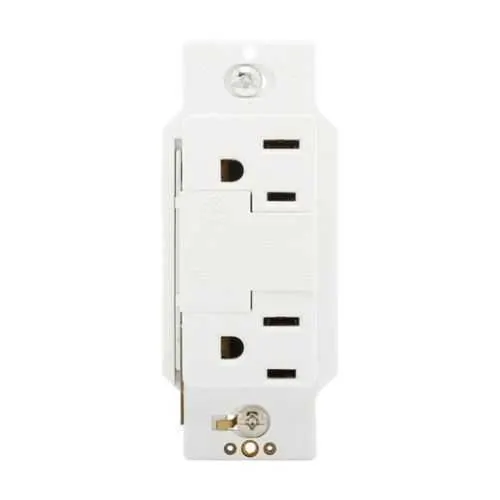

Eaton 1208W SurgeBloc Receptacle - cULus Listed
Part Number: 1208W
Quick Summary
The SurgeBloc protection receptacle delivers reliable surge suppression for sensitive commercial equipment. Engineers often wrestle with transient spikes that cause downtime, equipment damage, or nuisance tripping—this device helps mitigate that risk with built-in audible alarm and auto-ground features. Certified cULus Listed for US and Canada, it aligns with safety standards for commercial environments while delivering dependable protection. Designed for commercial installations, its 2 receptacles, 15A/125V rating, and compact footprint simplify field wiring and deliver measurable value for offices, retail, and light industrial settings.
Product Information
Extended Description
1208W Eaton: Eaton SurgeBloc protection receptacle, Audible alarm, auto-ground, Stand 6" #12 AWG leads, 15A, Comm, Wire leads, 340J, 2 recept, 0° to 40°C, Wht, Brs, Strght blade, Polycarb top and bottom, 5-15R, Dplx
Product Name
Eaton SurgeBloc protection receptacle
Catalog Number
1208W
UPC
032664570872
Product Length/Depth
1.4 in
Product Height
3.81 in
Product Width
1.3 in
Product Weight
0.285 lb
Certifications
cULus Listed
Device type
Straight blade
Special features
Audible alarm, auto-ground
Type
SurgeBloc protection receptacle
Amperage Rating
15A
Voltage rating
125 V
Contact material
Brass
Joules
340J
Allowable wire size
Standard 6 in #12 AWG leads
NEMA configuration
5-15R
Application
Commercial
Device grade
Commercial
Wiring method
Wire leads
Material
Thermoplastic
Number of receptacles
2
Operating temperature
0 to 40 °C
Number of wires
3
Number Of Poles
Two-pole
Style type
Duplex
Color
White
Face/body material
Polycarbonate top and bottom
Receptacle type
Two-pole, three-wire, grounding
Audible alarm and auto-ground provide immediate fault indication and enhanced safety, reducing response time during surge events and protecting personnel and connected devices. Business impact: minimizes downtime and mitigates risk to critical equipment; application: office workstations, point-of-use surge protection in commercial spaces. The duplex NEMA 5-15R configuration offers convenient wiring for common devices, improving installation speed and reducing labor costs. Business impact: faster installation and better space utilization; application: conference rooms, retail kiosks, and service counters. A 340J joule rating absorbs surge energy to shield sensitive electronics, lowering replacement costs and extending equipment life. Business impact: longer asset life and lower total cost of ownership; application: computers, communications gear, POS systems. Wire leads of 6 in #12 AWG enable straightforward field wiring with secure terminations, reducing wiring mistakes and rework. Business impact: safer, compliant installations; application: retrofit projects and new builds in commercial facilities. Thermoplastic housing with polycarbonate top and bottom provides durability and chemical resistance in busy environments, supporting long service life. Certifications confirm compliance with safety standards; application: regulated markets and risk-managed installations. Operating at 0 to 40 °C and designed for commercial use, this receptacle integrates seamlessly with standard 5-15R outlets, delivering reliable protection without overcomplicating maintenance. Business impact: reliable performance in typical office temperatures; application: data centers, break rooms, and light manufacturing.
Get a Quick Quote for a Eaton 1208W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1208W?
Enquire Now
FAQs
Install using the standard 6 inch #12 AWG leads provided, connecting hot, neutral, and ground to a properly rated branch circuit. Ensure the device is mounted in a suitable enclosure or surface, observe the 0 to 40 °C operating range, and verify 125 V supply and 15 A rating. Use appropriate wire routing and follow local electrical codes during termination and testing.
Key specs include 15A amperage, 125V voltage rating, 2 NEMA 5-15R duplex receptacles, 340J joule energy rating, audible alarm, auto-ground, and wire leads with standard #12 AWG capacity. It is thermoplastic with a polycarbonate housing, and is cULus Listed for commercial use, suitable for office and light industrial environments.
Yes. It is designed for commercial use with a duplex 5-15R configuration, 125 V operation, and a 340J surge rating. The audible alarm and auto-ground features provide immediate protection cues, while the compact form factor and wire-lead installation streamline integration behind desks, workstations, or in supply rooms.
The product is cULus Listed, which indicates compliance with applicable US and Canadian safety standards for commercial electrical equipment. This certification supports reliability in regulated environments such as offices, retail spaces, and light manufacturing facilities.
SurgeBloc delivers tangible ROI by reducing downtime from transient events and extending equipment life due to improved surge protection. With 340J energy absorption and a durable thermoplastic/ polycarbonate housing, maintenance costs decline, wiring remains straightforward with 6 inch leads, and the unit’s reliability translates to lower replacement and service costs over time in commercial settings.
