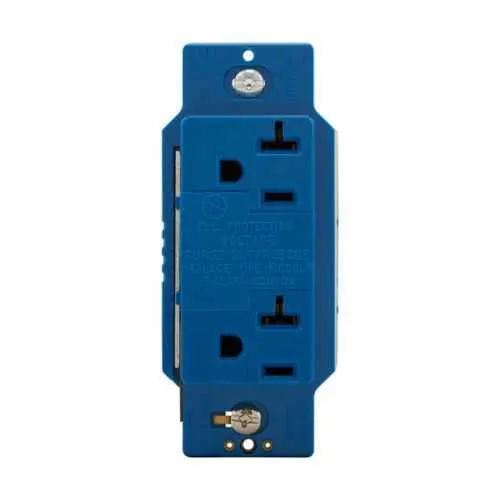

Eaton 1210BL SurgeBloc protection receptacle - cULus Listed
Part Number: 1210BL
Quick Summary
The Eaton SurgeBloc protection receptacle delivers reliable surge protection for commercial power outlets. Many industrial setups face nuisance surges that damage sensitive equipment and interrupt production. It is cULus Listed for commercial use and features an audible alarm with auto-ground to enhance fault signaling in busy environments. The unit uses standard 6 in #12 AWG leads and a 5-20R NEMA configuration, enabling straightforward wiring and compatibility with common power systems. By combining robust protection with clear diagnostics and easy installation, it helps facilities reduce downtime and extend equipment life while meeting procurement needs for durable, compliant outlets. For engineers and buyers, this model supports cost-effective maintenance and dependable long-term performance.
Product Information
Extended Description
1210BL Eaton: Eaton SurgeBloc protection receptacle, Audible alarm, auto-ground, Stand 6" #12 AWG leads, 20A, Comm, Wire leads, 340J, 2 recept, 0° to 40°C, Blue, Brs, Strght blade, Polycarb, 5-20R, Dplx 578786 578786
Product Name
Eaton SurgeBloc protection receptacle
Catalog Number
1210BL
UPC
032664578786
Product Length/Depth
1.4 in
Product Height
3.81 in
Product Width
1.3 in
Product Weight
0.3 lb
Certifications
cULus Listed
Device type
Straight blade
Special features
Audible alarm, auto-ground
Type
SurgeBloc protection receptacle
Amperage Rating
20A
Voltage rating
125 V
Contact material
Brass
Joules
340J
Allowable wire size
Standard 6 in #12 AWG leads
NEMA configuration
5-20R
Application
Commercial
Device grade
Commercial
Wiring method
Wire leads
Material
Thermoplastic
Number of receptacles
2
Operating temperature
0 to 40 °C
Number of wires
3
Number Of Poles
Two-pole
Style type
Duplex
Color
Blue
Face/body material
Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
With its duplex NEMA 5-20R design, the Eaton 1210BL delivers two grounded receptacles rated for 20A at 125V. This configuration supports common commercial and office equipment without adapters, improving plug compatibility and reducing installation time. The color-coded blue housing aids visibility in crowded panels or service desks, while the polycarbonate face ensures impact resistance in busy work environments. Its built-in audible alarm and auto-ground feature provide immediate fault notification and reliable grounding, minimizing unscheduled downtime and equipment damage in noisy plant environments. The 340J energy absorption rating indicates robust surge handling for short-duration events, helping protect sensitive electronics and control gear during surges from motors and welders. Installation is simplified by wire leads, enabling quick field wiring with three conductors and a compact, straight-blade design for clean panel integration. Durability is reinforced by thermoplastic construction, brass contact material, and a temperature operating range of 0 to 40 °C, suitable for most commercial facilities. The 2-receptacle, blue, duplex face fosters clear identification in busy environments, while the cULus Listed certification supports compliance with North American safety standards for commercial electrical protection.
Get a Quick Quote for a Eaton 1210BL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1210BL?
Enquire Now
FAQs
Install by wiring the three conductors into a compliant enclosure using the standard 6 inch #12 AWG leads provided. Ensure correct hot, neutral, and ground connections to a 125V supply and use the 5-20R straight blade configuration. Verify enclosure clearance and secure mounting to prevent movement. After wiring, perform a quick ground test and verify audible alarm status for proper fault signaling.
The 1210BL is a 20A, 125V surge-protection receptacle with 340 joules of energy absorption. It features two NEMA 5-20R outlets, three wires, and a two-pole grounding configuration. The device uses brass contact material, a thermoplastic body, and operates effectively from 0 to 40 °C, making it suitable for standard commercial environments.
Yes. It is cULus Listed for commercial use, includes an audible alarm, and auto-ground protection, delivering reliable surge handling in busy spaces. With 340J protection and robust wiring (#12 AWG leads), it supports critical loads while signaling faults clearly, reducing downtime and equipment risk in offices, retail spaces, and light manufacturing.
Its NEMA 5-20R duplex receptacles provide standard, compatible outlets for 125V circuits. The unit uses wire leads for straightforward field wiring, and a blue polycarbonate face aids visibility in crowded panels. The two-pole grounding and 20A rating align with typical commercial electrical codes, enabling easy integration into existing power distribution and panel assemblies.
Investing in the 1210BL reduces downtime by protecting connected equipment from transient surges and providing audible fault signaling, which speeds fault diagnosis. The durable thermoplastic housing and brass contacts improve longevity, lowering replacement and maintenance costs. Overall, you gain improved equipment life, reduced nuisance outages, and simpler procurement for commercial-grade surge protection.
