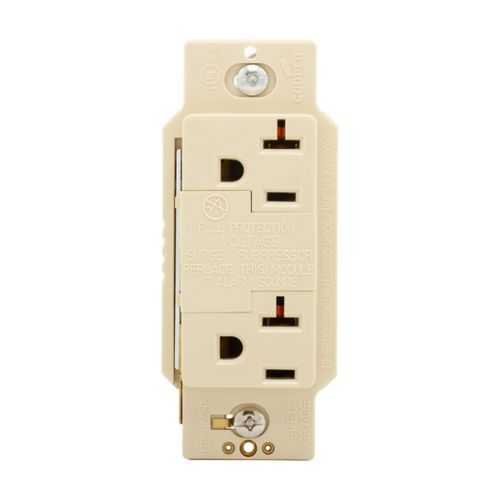

Eaton 1210V SurgeBloc protection receptacle - cULus Listed
Part Number: 1210V
Quick Summary
Eaton SurgeBloc protection receptacle is a surge-suppressing outlet designed for commercial environments, delivering audible alert and auto-ground protection for critical equipment. In busy facilities where downtime is costly, immediate fault indication and reliable surge defense help maintenance teams respond quickly and safely. This unit carries cULus Listed safety certification and supports a 125 V, 20 A rating, aligning with common commercial power standards. Its compact, duplex design and stand-alone lead wiring simplify installation across multiple outlets, enabling scalable protection for data rooms, offices, and light manufacturing spaces. By reducing nuisance outages and safeguarding assets, it offers tangible business value through enhanced uptime and asset protection.
Product Information
Extended Description
1210V Eaton: Eaton SurgeBloc protection receptacle, Audible alarm, auto-ground, Stand 6" #12 AWG leads, 20A, Comm, Wire leads, 340J, 2 recept, 0° to 40°C, Ivory, Brs, Strght blade, Polycarb, 5-20R, Dplx
Product Name
Eaton SurgeBloc protection receptacle
Catalog Number
1210V
UPC
032664570919
EAN
3066227701311
Product Length/Depth
1.4 in
Product Height
3.81 in
Product Width
1.3 in
Product Weight
0.295 lb
Certifications
cULus Listed
Device type
Straight blade
Special features
Audible alarm, auto-ground
Type
SurgeBloc protection receptacle
Amperage Rating
20A
Voltage rating
125 V
Contact material
Brass
Joules
340J
Allowable wire size
Standard 6 in #12 AWG leads
NEMA configuration
5-20R
Application
Commercial
Device grade
Commercial
Wiring method
Wire leads
Material
Thermoplastic
Number of receptacles
2
Operating temperature
0 to 40 °C
Number of wires
3
Number Of Poles
Two-pole
Style type
Duplex
Color
Ivory
Face/body material
Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Feature: Audible alarm and auto-ground provide immediate fault signaling and enhanced safety. Business Impact: Reduces response time to surge events and mitigates equipment damage. Application: Ideal for server rooms, office workstations, and point-of-use protection in commercial spaces. Feature: Two NEMA 5-20R receptacles (duplex) with 20A, 125V rating. Business Impact: Supports standard plug configurations, minimizes outlet proliferation, and simplifies circuit planning. Application: Offices, retail, and light industrial environments requiring reliable duplex outlets. Feature: 340 Joules surge energy rating. Business Impact: Attenuates transient events to protect sensitive electronics, reducing repair and replacement costs. Application: Desktops, AV gear, and network equipment. Feature: Stand 6 inch #12 AWG wire leads for wiring method. Business Impact: Eases field installation and reduces labor time, improving project ROI. Application: New installs and retrofit installations in commercial interiors. Feature: Thermoplastic polycarbonate housing and durable construction. Business Impact: Delivers impact resistance and reliable performance in busy facilities, lowering maintenance needs. Application: Office suites, data centers, and customer-facing areas. Feature: 0 to 40 °C operating temperature and commercial device grade. Business Impact: Ensures dependable operation within typical indoor environments, supporting asset longevity. Application: Data rooms, control panels, and service desks. Feature: Receptacle type is two-pole, three-wire, grounding with standard wiring method. Business Impact: Safe, code-compliant grounding with straightforward wiring for electricians. Application: General-purpose commercial protection and point-of-use installations. These features collectively enable improved uptime, safer operation, and cost-effective deployment in enterprise environments, while catering to long-tail needs like “duplex protection receptacle with audible alarm” and “125V surge protector with 6 in leads.”
Get a Quick Quote for a Eaton 1210V
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1210V?
Enquire Now
FAQs
Installation is straightforward thanks to standard 6 inch #12 AWG wire leads and a duplex 5-20R configuration. The unit wires via simple leads, enabling quick connection to a 125 V circuit while ensuring auto-ground protection for enhanced safety.
The receptacle is 20A, 125V with a 340 Joule energy rating, two NEMA 5-20R receptacles, brass contact material, and a thermoplastic body. It supports commercial-grade use and includes an audible alarm and auto-ground feature.
Yes. It is designed for commercial applications with a commercial device grade, 0 to 40 °C operating range, and a cULus Listed certification, making it suitable for offices, data rooms, and light industrial spaces requiring reliable surge protection.
The unit is cULus Listed, indicating safety compliance for hazardous electrical environments and commercial use. This certification supports regulatory alignment and reduces risk during audits and inspections.
The 6 inch #12 AWG leads simplify wiring, reducing labor time, while the audible alarm and auto-ground features minimize downtime by quickly signaling surge events. The duplex design also lowers panel clutter and supports scalable protection across multiple outlets.
