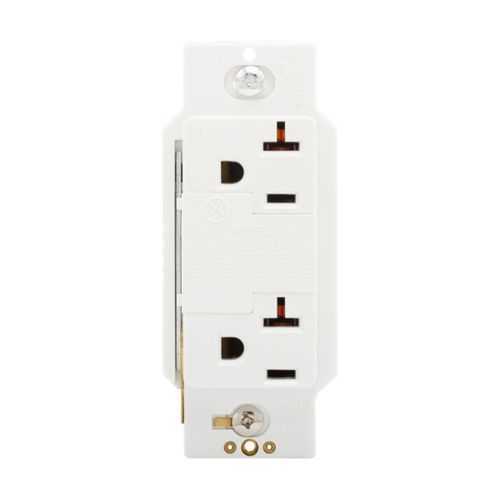

Eaton 1210W SurgeBloc protection receptacle - cULus Listed
Part Number: 1210W
Quick Summary
Eaton SurgeBloc protection receptacle provides surge protection for commercial equipment. Customers often struggle with unpredictable surges, nuisance trips, and unprotected loads interrupting production. It carries a cULus Listed certification for commercial use and a 340J energy rating, with 20A, 125V performance. By combining audible alert, auto-ground, and rugged thermoplastic housing, the solution reduces downtime and simplifies compliance for installers. Designed for commercial environments, it uses stand 6" leads of #12 AWG for straightforward wiring and reliable grounding. This combination delivers faster installation, improved protection coverage, and predictable maintenance costs across office, retail, and light-industrial settings. Trust Eaton for durable, code-compliant surge protection.
Product Information
Extended Description
1210W Eaton: Eaton SurgeBloc protection receptacle, Audible alarm, auto-ground, Stand 6" #12 AWG leads, 20A, Comm, Wire leads, 340J, 2 recept, 0° to 40°C, Wht, Brs, Strght blade, Polycarb, 5-20R, Dplx 570926 570926
Product Name
Eaton SurgeBloc protection receptacle
Catalog Number
1210W
UPC
032664570926
Product Length/Depth
1.4 in
Product Height
3.81 in
Product Width
1.3 in
Product Weight
0.295 lb
Certifications
cULus Listed
Device type
Straight blade
Special features
Audible alarm, auto-ground
Type
SurgeBloc protection receptacle
Amperage Rating
20A
Voltage rating
125 V
Contact material
Brass
Joules
340J
Allowable wire size
Standard 6 in #12 AWG leads
NEMA configuration
5-20R
Application
Commercial
Device grade
Commercial
Wiring method
Wire leads
Material
Thermoplastic
Number of receptacles
2
Operating temperature
0 to 40 °C
Number of wires
3
Number Of Poles
Two-pole
Style type
Duplex
Color
White
Face/body material
Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Feature: 20A, 125V rating with NEMA 5-20R duplex configuration; Business Impact: supports common office and light-industrial loads with reliable overcurrent protection; Application: ideal for commercial workstations and equipment bays. This arrangement reduces the risk of voltage-related damage while keeping outlets readily accessible. Feature: 340 Joules surge energy rating; Business Impact: limits surge energy absorption to protect sensitive electronics and data devices, extending equipment life and reducing replacement costs. Application: server rooms, POS terminals, and AV spaces. Feature: Audible alarm and auto-ground; Business Impact: improves fault visibility and grounding reliability, enabling quick response by maintenance teams. Application: control panels and distributed power zones in busy facilities. Feature: Stand 6" #12 AWG leads; Business Impact: simplifies wiring, speeds installer sessions, and enhances wiring consistency across multiple receptacles. Application: new installs and retrofit projects in commercial interiors. Feature: Thermoplastic face/body, white finish; Business Impact: durable, impact-resistant housing suitable for high-traffic areas and easy cleaning. Application: office interiors, retail counters, and light-industrial enclosures. Feature: 2 receptacles, duplex, 0° to 40°C operating range; Business Impact: compact, reliable readiness across a broad temperature span, reducing failure risk in variable environments. Application: general-purpose outlets in commercial spaces.
Get a Quick Quote for a Eaton 1210W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1210W?
Enquire Now
FAQs
Yes. The 1210W SurgeBloc protection receptacle uses a NEMA 5-20R duplex configuration designed for 20A circuits at 125V, making it compatible with standard commercial power layouts and easy to integrate into office, retail, and light-industrial spaces.
The 340 joules rating indicates the amount of surge energy the receptacle can absorb before potentially tripping or sustaining damage. This level provides solid protection for common office electronics, computers, and POS devices, helping to mitigate brief, energy-rich surges.
The 6-inch #12 AWG leads provide standard, ready-to-connect conductors, reducing field wiring time and eliminating the need for field-term wiring accessories. This leads to faster commissioning and fewer installation errors in busy commercial environments.
Yes, the unit is cULus Listed, indicating compliance with applicable safety standards for commercial use. It is best suited for offices, retail spaces, and light-industrial environments where reliable surge protection and audible fault indication are beneficial.
By reducing surge-related equipment damage, minimizing downtime, and simplifying installation and maintenance, SurgeBloc receptacles can lower replacement and service costs over time. The dual-outlet design also consolidates protection for multiple devices at critical workstations.
