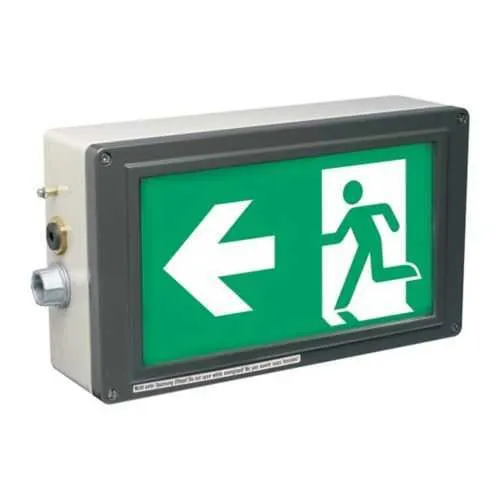

Eaton 12191001021 Ex-Lite ZR Exit Sign - IP66
Part Number: 12191001022
Quick Summary
Eaton Ex-Lite ZR exit sign reliably marks egress in hazardous areas. When installing signs in harsh environments, visibility and durability are frequent pain points for operators and maintenance teams. This unit meets IP66 ingress protection and NEC/CEC compliance while addressing hazardous location ratings, including Class I, Zone 1 and Class II, Division 2. By combining LED efficiency with a rugged aluminum housing, it delivers long service life and low maintenance, while the wall-mount design and 3/4 entry simplify retrofits and ongoing operations in industrial facilities. This combination supports compliance audits, reduces downtime, and ensures reliable egress lighting for personnel in hazardous environments.
Product Information
Extended Description
12191001022 Eaton: Eaton Crouse-Hinds series Ex-Lite ZR exit sign, 3/4" entry, Arrowhead left, 50/60 Hz, LED, Aluminum alloy, Wall mount, Cover with running man and arrow 9h, 120-277 Vac, 110-250 Vdc
Product Name
Eaton's Crouse-Hinds series Ex-Lite ZR exit sign
Catalog Number
12191001022
EAN
4251510705053
Product Length/Depth
422 mm
Product Height
115 mm
Product Width
230 mm
Product Weight
6.7 kg
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Zone 1 Class II, Division 2
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead left
Voltage rating
120-277 Vac, 110-250 Vdc
Frequency rating
50/60 Hz
Mounting
Wall
Entry size
3/4"
Material
Aluminum alloy
Type
Cover with running man and arrow 9h
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Ex-Lite Hazardous Area LED Exit Signs catalog page
LED illumination with long life reduces maintenance intervals and energy costs, improving uptime for critical exits across continuous operation environments. The Ex-Lite ZR’s LED technology delivers consistent brightness with low power consumption, translating to lower operating expenses and extended replacement cycles in manufacturing and process facilities. Application: plant corridors, stairwells, and egress paths where reliable visibility is essential. IP66 protection and hazardous location compliance protect against dust, water, and corrosive atmospheres, reducing field failures and replacement costs. The unit carries NEC/CEC standards and hazardous location ratings such as Class I, Zone 1 and Class II, Division 2, making it suitable for oil and gas, chemical processing, and mining facilities. Wide voltage capability of 120-277 VAC and 110-250 VDC with 50/60 Hz support enables global deployments without separate drivers. This compatibility reduces spare part variety, shortens project lead times, and ensures consistent illumination across sites with different power sources. Wall mounting with a 3/4 entry and a durable aluminum alloy housing streamline installation and retrofit projects. The compact 422 mm x 230 mm footprint and running man with arrow 3 h designation support compliant egress visualization while withstanding real-world industrial conditions. Common objections about higher upfront cost are offset by lifecycle savings from lower energy use, longer LED life, and fewer maintenance calls, delivering a compelling ROI in hazard-prone environments.
Get a Quick Quote for a Eaton 12191001022
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 12191001022?
Enquire Now
FAQs
Wall mounting is straightforward with the Ex-Lite ZR, featuring a 3/4 entry and a durable aluminum housing. Route power to 120-277 VAC or 110-250 VDC as required, and secure the unit per NEC/CEC installation standards. Confirm the location is Class I, Zone 1 or Class II, Division 2 compatible, and use IP66-rated enclosures for moisture, dust, and corrosion protection.
Key specs contributing to safety include IP66 ingress protection and LED reliability, which reduce maintenance in dusty and wet settings. The unit carries NEC/CEC compliance and hazardous location ratings such as Class I, Zone 1 and Class II, Division 2, ensuring compliance with regional codes. Its voltage options 120-277 VAC and 110-250 VDC support stable, fail-safe operation across sites.
Yes. The Ex-Lite ZR is designed for hazardous locations, including oil and gas installations. It carries hazardous location classifications such as Class I, Zone 1 and Class II, Division 2, meeting NEC/CEC standards and IP66 protection for dust, water, and corrosive atmospheres. The LED technology offers long life with minimal maintenance, reducing downtime in remote or high-risk areas.
Industrial facilities with critical egress needs benefit most, including chemical plants, refineries, and mining sites. The wall-mount configuration saves ceiling space, while the 3/4 entry simplifies conduit routing. Its slim footprint and aluminum alloy housing resist corrosion and impacts, supporting reliable visibility in confined corridors or station areas. The universal voltage range enables global deployment without extensive rewiring.
LED-based exit signs like Ex-Lite ZR offer high reliability and long life, which reduces replacement costs and maintenance intervals. IP66 protection minimizes cleaning and service disruption in demanding environments, while NEC/CEC compliance mitigates audit risk. Although initial cost is higher than conventional signs, the reduced downtime, lower energy use, and extended service life deliver a favorable total cost of ownership over the life of the installation.
