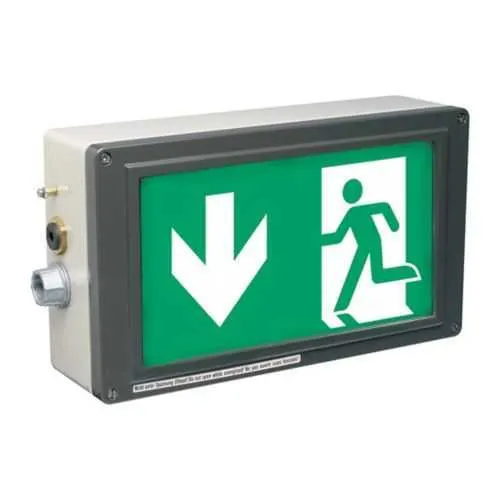

Eaton 12191001023 Ex-Lite ZR Exit Sign - IP66
Part Number: 12191001023
Quick Summary
Eaton Ex-Lite ZR exit sign provides reliable emergency egress indication for hazardous locations. Engineers often struggle to find an LED exit sign that withstands harsh environments, frequent washdowns, and vibration without compromising visibility. This model delivers IP66 protection, NEC/CEC compliance, and explicit hazardous-area approvals (Class I Zone 1, Class II Division 2) to meet stringent industry standards. With rugged aluminum housing and universal power options, it minimizes maintenance while maximizing uptime. For plants, refineries, and offshore facilities, it combines safety, compliance, and cost efficiency in a single, wall-mounted solution that supports scalable, long-term operation.
Product Information
Extended Description
12191001023 Eaton: Eaton Crouse-Hinds series Ex-Lite ZR exit sign, 3/4" entry, Arrowhead downwards, 50/60 Hz, LED, Aluminum alloy, Wall mount, Cover with running man and arrow 6h, 120-277 Vac, 110-250 Vdc
Product Name
Eaton's Crouse-Hinds series Ex-Lite ZR exit sign
Catalog Number
12191001023
EAN
4251510705077
Product Length/Depth
422 mm
Product Height
115 mm
Product Width
230 mm
Product Weight
6.7 kg
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Zone 1 Class II, Division 2 Class I, Division 2
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead downwards
Voltage rating
120-277 Vac, 110-250 Vdc
Frequency rating
50/60 Hz
Mounting
Wall
Entry size
3/4"
Material
Aluminum alloy
Type
Cover with running man and arrow 6h
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Ex-Lite Hazardous Area LED Exit Signs catalog page
Feature → Business Impact → Application: LED illumination provides long life and low maintenance, reducing scheduled outages and maintenance costs in adverse environments; ideal for hazardous location lighting and reliable egress in chemical plants and oil & gas facilities. Feature → Robust aluminum housing with IP66 protection yields a rugged, washable exterior that resists dust, water, and wash-down cycles, improving lifecycle costs in manufacturing and mining operations. Feature → 120-277 VAC or 110-250 VDC dual voltage input with 50/60 Hz compatibility enables universal installation across facilities, speeding up project timelines and reducing inventory complexity for electricians. Feature → 3/4" conduit entry and wall-mount design simplify installation and conduit routing in tight electrical rooms and equipment yards, delivering faster commissioning and safer, compliant mounting in harsh locations. Feature → Arrowhead-down running man cover (6h) ensures visible, compliant egress signage during power loss, supporting life-safety requirements in compliant Hazardous/Classified Locations. Feature → NEC/CEC and hazardous-location ratings (Class I Zone 1, Class II Division 2) provide regulatory assurance, reducing risk and potential non-compliance penalties while enabling seamless integration with existing safety systems.
Get a Quick Quote for a Eaton 12191001023
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 12191001023?
Enquire Now
FAQs
The Ex-Lite ZR is designed for wall mounting with a 3/4" conduit entry, aiding installation in confined or rugged spaces typical of hazardous locations. Use approved conduit fittings, confirm IP66 seals are intact, and verify Class I Zone 1 / Class II Division 2 compliance before powering. The device accepts both 120-277 VAC and 110-250 VDC, simplifying wiring choices for plant electricians while maintaining life-safety visibility.
Model 12191001023 supports dual voltage input: 120-277 VAC and 110-250 VDC, with a 50/60 Hz frequency rating. LED illumination offers high efficiency and long life, reducing maintenance. This versatility supports global deployments and simplifies retrofits in facilities with mixed power systems, while meeting NEC/CEC requirements for hazardous environments.
Yes. The Ex-Lite ZR features NEC hazardous-location ratings (Class I Zone 1, Class II Division 2, and Class I Division 2) and is certified for Hazardous/Classified Locations, along with IP66 protection. This makes it suitable for chemical, oil & gas, mining, and other industrial settings requiring stringent regulatory adherence and robust egress signage.
The 3/4" conduit entry standardizes wiring interfaces, reducing field customization. Wall mounting simplifies placement for optimal visibility and access control, especially in constrained or hazardous spaces. The aluminum housing provides durability in wash-down environments, while the overall dimensions (422 mm L × 230 mm W × 115 mm H) fit typical industrial enclosures without obstructing equipment.
LED technology delivers extended service life and lower energy use, translating to fewer lamp replacements and reduced maintenance costs. The IP66 rating and rugged housing minimize downtime from dust, water, or impact. Longer reliability in hazardous areas improves safety compliance, reduces lifecycle costs, and supports faster return on investment for facilities with stringent safety mandates.
