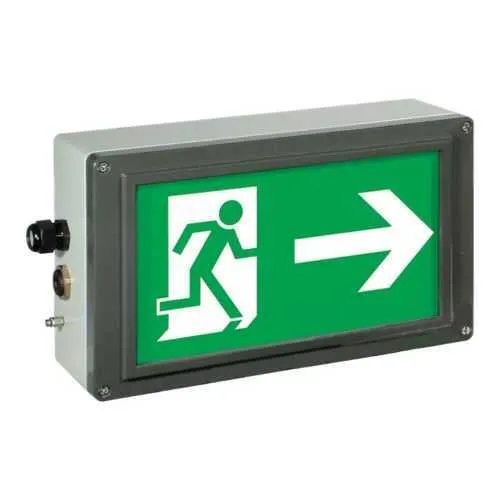

Eaton 12191011021 Ex-Lite exit sign - IECEx/ATEX IP66
Part Number: 12191011021
Quick Summary
Ex-Lite exit sign is an LED emergency sign for hazardous-area installations. It supports 110-277 Vac and 110-250 Vdc operation, making it compatible with diverse plant power systems and retrofit projects. Engineers struggle to find reliable, compliant signage that withstands dust, moisture, and rugged mounting in harsh environments. The unit features IECEx/ATEX certification for Zone 1, Zone 2, Zone 21, and Zone 22, IP66 protection, and ISO 7010 pictograms for universal clarity. Its wall-mount design, aluminum alloy housing, and gray finish meet rugged industrial aesthetics while simplifying installation with standard M25 cable glands. In short, it improves safety signaling, reduces maintenance, and accelerates project timelines for hazardous-location facilities.
Product Information
Extended Description
12191011021 Eaton: Eaton Crouse-Hinds series Ex-Lite exit sign, Arrowhead right, Gray, LED, White letter color, Aluminum alloy, Wall mount, Cover with pictogram (arrow 3h), 1 x M25 plastic cable glands, 1 x M25 screw plug, ISO 7010, 110-277 Vac, 110-250 Vdc
Product Name
Eaton's Crouse-Hinds series Ex-Lite exit sign
Catalog Number
12191011021
EAN
4250959900104
Product Length/Depth
422 mm
Product Height
115 mm
Product Width
230 mm
Product Weight
6.2 kg
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 22 Zone 1 Zone 2 Zone 21
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead right
Letter color
White
Trade size
1 x M25 plastic cable glands, 1 x M25 screw plug
Voltage rating
110-277 Vac, 110-250 Vdc
Frequency rating
50/60 Hz
Mounting
Wall
Material
Aluminum alloy
Housing finish color
Gray
Special features
Includes cover with pictogram (arrow 3h)
Type
ISO 7010
LED lamp technology extends service life and reduces replacement costs in demanding plants. The Ex-Lite exit sign delivers long-life illumination with consistent brightness, lowering maintenance calls on shift changes and improving reliability of egress visibility during outages. In hazardous locations, this translates to fewer service visits and predictable operation during critical alarms, especially where access is limited. The LED arrangement also supports excellent contrast against white letters, improving legibility in low-light conditions. Voltage range and power compatibility allow broad deployment across facilities. With a wide 110-277 Vac and 110-250 Vdc range and 50/60 Hz frequency, it's easy to retrofit existing wiring without changing transformers or controllers. This compatibility accelerates project timelines and reduces electrical surprises in upgrades or new builds. The design supports ISO 7010 pictograms and arrow orientation, ensuring consistent messaging across shifts and sites. IP66 enclosure and aluminum alloy housing provide ruggedness against dust, water jets, and harsh washdowns. The gray housing is durable and corrosion-resistant, compatible with industrial aesthetics and factory-floor color schemes. The result is a sign that stays legible and intact in harsh environments, reducing replacement cycles and downtime. The wall-mount configuration simplifies surface wiring and maintains a low-profile footprint. IECEx/ATEX certification for Zone 1/2 and Zone 21/22 ensures regulatory compliance in hazardous areas. ISO 7010 pictograms standardize exit messaging for international workforce, improving safety communication across sites. Together with the included pictogram cover, this reduces confusion during emergencies and helps meet safety audits. The certification suite also supports maintenance teams working across multiple facilities, ensuring uniform sign performance. Mounting and installation are straightforward with wall mounting and included M25 glands and plug, which simplifies cable management and enables clean wiring. The unit’s compact footprint and modular accessories support straightforward retrofits or new installations in constrained spaces. With dimensions of 422 mm by 230 mm by 115 mm and a weight of 6.2 kg, planning and installation are predictable. Field service options and spare parts availability further reduce project risk.
Get a Quick Quote for a Eaton 12191011021
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 12191011021?
Enquire Now
FAQs
The Ex-Lite model is rated for Hazardous/Classified Locations with IECEx/ATEX certification for Zone 1, Zone 2, Zone 21, and Zone 22, making it suitable for chemical plants, oil & gas facilities, and other hazardous environments. Its IP66 rating ensures dust and water protection, while the wall-mount configuration simplifies integration with existing enclosures and wiring layouts.
It supports a versatile power range of 110-277 Vac and 110-250 Vdc, with 50/60 Hz frequency. This enables easy retrofits and compatibility with both legacy AC systems and DC-powered control schemes commonly found in industrial plants.
The unit is designed for wall mounting and ships with standard mounting provisions, including one x M25 plastic cable gland and one x M25 screw plug. This enables clean, compliant wiring and straightforward retrofits into constrained spaces without reworking the building’s infrastructure.
The Ex-Lite exit sign carries IECEx/ATEX certification for Zones 1/2 and 21/22, IP66 ingress protection, and ISO 7010 pictograms for standardized signage. These certifications help meet global safety audits and ensure consistent messaging across multinational sites.
The enclosure measures 422 mm in length, 230 mm in width, and 115 mm in height, with a weight of 6.2 kg. These specs support accurate clearance calculations, cable management planning, and fit checks in retrofits or new-build projects.
