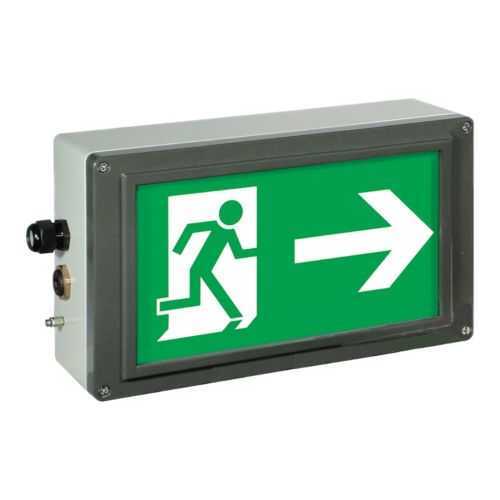

Eaton 12191011022 Ex-Lite LED Exit Sign - IECEx/IP66
Part Number: 12191011022
Quick Summary
Eaton's Ex-Lite LED exit sign clearly marks egress routes in hazardous industrial environments. This wall-mounted unit addresses signage reliability during challenging conditions, reducing evacuation time and confusion. It carries IECEx/ATEX certifications with Zone 1/2 and Zone 21/22 ratings and IP66 protection, ensuring safe operation in arduous atmospheres. ISO 7010 compliance and a pictogram cover enhance universal recognition and regulatory alignment. Designed for durability and low maintenance, the Ex-Lite combines energy-efficient LED technology with straightforward mounting, making it well-suited for retrofits or new installations in chemical plants, oil & gas facilities, and offshore locations. The result is improved safety, reduced maintenance costs, and dependable visibility across shifts.
Product Information
Extended Description
12191011022 Eaton: Eaton Crouse-Hinds series Ex-Lite exit sign, Arrowhead left, Gray, LED, White letter color, Aluminum alloy, Wall mount, Cover with pictogram (arrow 9h), 1 x M25 plastic cable glands, 1 x M25 screw plug, ISO 7010, 110-277 Vac, 110-250 Vdc
Product Name
Eaton's Crouse-Hinds series Ex-Lite exit sign
Catalog Number
12191011022
EAN
4251958106832
Product Length/Depth
422 mm
Product Height
115 mm
Product Width
230 mm
Product Weight
6.2 kg
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX IEC
IECEx/ATEX hazardous rating
Zone 22 Zone 2 Zone 21 Zone 1
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead left
Letter color
White
Trade size
1 x M25 plastic cable glands, 1 x M25 screw plug
Voltage rating
110-277 Vac, 110-250 Vdc
Frequency rating
50/60 Hz
Mounting
Wall
Material
Aluminum alloy
Housing finish color
Gray
Special features
Includes cover with pictogram (arrow 9h)
Type
ISO 7010
Feature: LED lamp technology delivers high efficiency and long service life. Business Impact: Lower energy consumption and fewer lamp replacements reduce operating costs in 24/7 signage. Application: Suited for continuous operation in hazardous locations such as chemical plants and oil-and-gas facilities where reliable exit signaling is critical. Feature: IP66-rated enclosure and aluminum alloy housing. Business Impact: Combines corrosion resistance with robust protection against dust and water ingress, extending service intervals. Application: Ideal for washdown, outdoor, and damp environments typical of refining, processing, and offshore installations. Feature: IECEx/ATEX certifications covering Zone 1, Zone 2, Zone 21, and Zone 22. Business Impact: Ensures regulatory compliance and mitigates risk of non-compliance penalties during audits. Application: Enables use in hazardous-area contexts where electrical safety is a regulatory prerequisite. Feature: ISO 7010-compliant designation with arrowhead left and pictogram cover. Business Impact: Improves universal wayfinding and reduces evacuation time across diverse work forces. Application: Supports global installations with consistent signage messaging. Feature: Wall-mount installation with included M25 glands and plug. Business Impact: Streamlines wiring and enables sealed, code-compliant terminations. Application: Fast, reliable field installation in hazardous environments.
Get a Quick Quote for a Eaton 12191011022
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 12191011022?
Enquire Now
FAQs
When installing the Ex-Lite exit sign in hazardous locations, plan for wall mounting with a sealed enclosure. The unit includes 1 x M25 plastic cable gland and 1 x M25 screw plug for cable terminations; ensure wiring complies with Zone 1/2 and 21/22 classifications and applies ISO 7010 pictograms for consistent signaling.
The Ex-Lite carries IECEx and ATEX certifications, with Zone 1, Zone 2, Zone 21, and Zone 22 ratings. It is IP66 protected and designed for Hazardous/Classified locations, ensuring compliance across global hazardous-area applications.
It operates on 110-277 Vac or 110-250 Vdc and supports 50/60 Hz. LED illumination, 422 mm length, 230 mm width, and 115 mm height, with a gray aluminum housing and arrowhead left designation.
Yes. With Zone 1/2 and Zone 21/22 approvals, IP66 ingress protection, and ISO 7010-compliant pictograms, it is designed for harsh environments like chemical plants, offshore platforms, and refineries where reliable egress signaling is essential.
LED technology minimizes lamp replacements and energy use, reducing operating costs. The durable aluminum housing and sealed IP66 enclosure lower maintenance overhead, while long service life translates to predictable ROI across year-round operations in hazardous locations.
