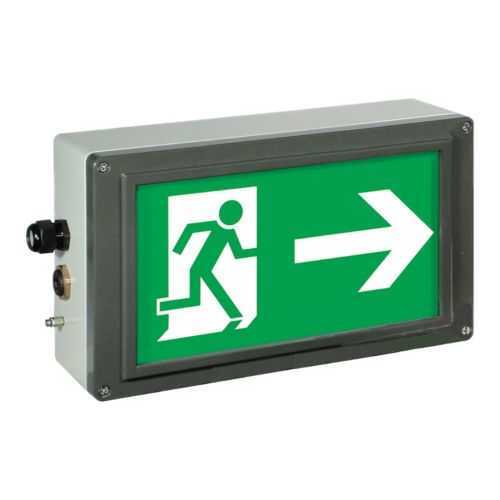

Eaton 12191011023 Exit Sign - IECEx/ATEX Hazardous Locations
Part Number: 12191011023
Quick Summary
Eaton's Crouse-Hinds Ex-Lite exit sign is engineered for hazardous locations and wall-mounted visibility. In challenging environments, unreliable signage can delay evacuation and complicate compliance. This unit carries IECEx/ATEX certification, IP66 ingress protection, and ISO 7010 pictograms, ensuring safe operation across Zone 1/2 and Zone 21/22 locations. Built with an aluminum housing and LED illumination, it combines durability with low maintenance, while a flexible voltage range supports global projects. For procurement teams, the compact footprint and wall-mount design streamline installation and reduce total cost of ownership.
Product Information
Extended Description
12191011023 Eaton: Eaton Crouse-Hinds series Ex-Lite exit sign, Arrowhead downwards, Gray, LED, White letter color, Aluminum alloy, Wall mount, Cover w/ pictogram (arrow 6h), 1 x M25 plastic cable gland, 1 x M25 screw plug, ISO 7010, 110-277 Vac, 110-250 Vdc
Product Name
Eaton's Crouse-Hinds series Ex-Lite exit sign
Catalog Number
12191011023
EAN
4250959900128
Product Length/Depth
422 mm
Product Height
115 mm
Product Width
230 mm
Product Weight
6.2 kg
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 2 Zone 21 Zone 1 Zone 22
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead downwards
Letter color
White
Trade size
1 x M25 plastic cable glands, 1 x M25 screw plug
Voltage rating
110-277 Vac, 110-250 Vdc
Frequency rating
50/60 Hz
Mounting
Wall
Material
Aluminum alloy
Housing finish color
Gray
Special features
Includes cover with pictogram (arrow 6h)
Type
ISO 7010
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Ex-Lite Hazardous Area LED Exit Signs European catalog page
Feature: Hazardous-location LED exit sign with IP66 enclosure → Business Impact: Delivers reliable visibility in wet, dusty, or explosive atmospheres, reducing evacuation time and minimizing downtime → Application: Chemical plants, offshore platforms, or refineries requiring robust egress signage. Feature: ISO 7010 arrowhead downwards designation and white lettering → Business Impact: Standardized pictograms improve universal recognition, lowering training time and misinterpretation costs → Application: Global facilities operating under international safety standards. Feature: Wall-mount, aluminum alloy housing with gray finish → Business Impact: Durable, corrosion-resistant enclosure that withstands harsh environments and reduces replacement cycles → Application: Exterior or interior hazardous-area installations with long service life. Feature: IECEx/ATEX certification with Zone 1/Zone 2 and Zone 21/Zone 22 ratings → Business Impact: Global regulatory compliance enables cross-border projects and module reuse → Application: Oil & gas, chemical processing, and mining sites. Feature: Voltage range 110-277 Vac and 110-250 Vdc at 50/60 Hz → Business Impact: One sign supports multiple supply schemes, lowering inventory and installation complexity → Application: Worldwide facilities with diverse electrical infrastructures. Feature: Included cover with pictogram (arrow 6h) and predefined M25 glands → Business Impact: Ready-to-install configuration reduces commissioning time and ensures IP66 integrity → Application: Quick retrofit in existing hazardous-area layouts.
Get a Quick Quote for a Eaton 12191011023
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 12191011023?
Enquire Now
FAQs
Installation should follow hazardous-location electrical practices: mount the unit on a stable wall surface using the supplied wall brackets, ensure the M25 cable glands and plug are correctly fitted to preserve IP66 integrity, connect to a 110-277 Vac or 110-250 Vdc supply at 50/60 Hz, and confirm the pictogram cover is correctly positioned for ISO 7010 compliance. Verify ambient conditions match the product ratings and test emergency operation after wiring is complete.
The Ex-Lite sign supports a voltage range of 110-277 Vac and 110-250 Vdc with 50/60 Hz frequency. It uses LED illumination for energy efficiency and long life. The unit is designed for wall mounting in hazardous locations and carries IP66 ingress protection. These specs enable global deployment with a single stock item, reducing wiring variations and maintenance concerns over time.
Yes. The 12191011023 is IECEx/ATEX certified for hazardous/classified locations and explicitly rated for Zone 1, Zone 2, Zone 21, and Zone 22. Its IP66 enclosure further protects against dust and water ingress, making it suitable for demanding environments such as chemical plants, oil and gas facilities, and mining operations.
The sign meets IECEx/ATEX standards for hazardous locations and ISO 7010 for standardized exit pictograms. It is also rated IP66 for protection against dust and water ingress. These certifications support global project deployments, simplify procurement, and help ensure regulatory compliance across multiple regions.
LED technology delivers long life with low energy consumption and minimal maintenance compared with traditional lamps. The Ex-Lite unit’s aluminum housing, gray finish, and pictogram cover reduce corrosion risk and field wear. With dependable operation in harsh environments and a fixed wall-mount installation, lifecycle costs are typically lower due to fewer replacements and simpler service routines.
