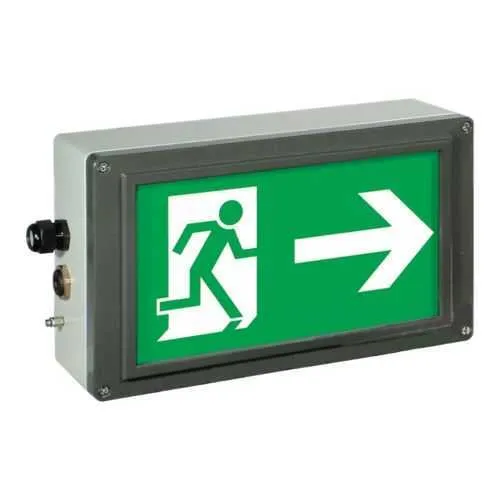

Eaton 12191011121 Ex-Lite Exit Sign - IECEx/ATEX
Part Number: 12191011121
Quick Summary
Ex-Lite Exit Sign from Eaton delivers reliable emergency illumination for hazardous locations in industrial facilities. This design helps prevent downtime and safety incidents caused by poor visibility during power outages. It meets IECEx/ATEX hazardous-area standards, supports Zone 1, 21, 22, and 2, and carries IP66 protection for rugged environments. With universal voltage options and a wall-mounted form factor, it offers a straightforward procurement path, reduced stocking needs, and dependable performance for safety-critical signage in harsh facilities.
Product Information
Extended Description
12191011121 Eaton: Eaton Crouse-Hinds series Ex-Lite exit sign, Arrowhead right, Gray, LED, White letter color, Aluminum alloy, Wall mount, Cover with pictogram (arrow 3h), 2 x M20 metal thread, ISO 7010, 110-277 Vac, 110-250 Vdc
Product Name
Eaton's Crouse-Hinds series Ex-Lite exit sign
Catalog Number
12191011121
EAN
4250959900135
Product Length/Depth
422 mm
Product Height
115 mm
Product Width
230 mm
Product Weight
6.2 kg
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX IEC
IECEx/ATEX hazardous rating
Zone 1 Zone 21 Zone 22 Zone 2
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead right
Letter color
White
Trade size
2 x M20 metal thread
Voltage rating
110-277 Vac, 110-250 Vdc
Frequency rating
50/60 Hz
Mounting
Wall
Material
Aluminum alloy
Housing finish color
Gray
Special features
Includes cover with pictogram (arrow 3h)
Type
ISO 7010
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Ex-Lite Hazardous Area LED Exit Signs European catalog page
LED technology delivers long life and low energy consumption, meaning fewer lamp replacements and lower operating costs for facilities with continuous safety lighting. In hazardous locations, a reliable LED exit sign minimizes downtime during power events and reduces maintenance cycles, translating to a lower total cost of ownership in chemical plants, refineries, and offshore sites. The aluminum alloy housing with a gray finish resists corrosion, extending service intervals while IP66 protection guards against dust and water ingress in demanding environments. IECEx/ATEX certification and Zone 1, Zone 21, Zone 22, and Zone 2 ratings ensure global compliance, enabling safe deployment across multinational projects. The wall-mount design, 2 x M20 entry points, and universal voltage (110-277 Vac / 110-250 Vdc) with 50/60 Hz support simplify installation and reduce wiring changes. ISO 7010 compliant pictograms with an arrow 3h cover deliver clear guidance, improving evacuation efficiency. Dimensions of 422 mm length, 230 mm width, and 115 mm height, with a 6.2 kg weight, fit standard signage footprints and enable easy retrofit on existing enclosures.
Get a Quick Quote for a Eaton 12191011121
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 12191011121?
Enquire Now
FAQs
The Ex-Lite is designed for wall mounting and provides two M20 metal entry points for wiring. It operates on 110-277 Vac or 110-250 Vdc at 50/60 Hz, and its robust housing supports flexible installation in hazardous environments, including Zone 1 and Zone 21/22 sites.
It carries IECEx/ATEX certifications for hazardous locations and is rated IP66. The product supports Zone 1, Zone 21, Zone 22, and Zone 2, aligning with global safety standards for explosive atmospheres.
Yes. Its hazardous-location approvals, IP66 ingress protection, and robust aluminum housing make it ideal for chemical plants, refineries, and offshore platforms where reliable, compliant emergency illumination is essential.
The unit measures 422 mm in length, 230 mm in width, and 115 mm in height and weighs 6.2 kg. It features 2 x M20 metal thread entries for flexible conduit or cable entry, simplifying installation in constrained spaces.
The LED light source provides long life and low maintenance, reducing replacement frequency and downtime. With universal voltage, solid housing, and IP66 protection, the sign offers predictable performance and lower total cost of ownership in demanding environments.
