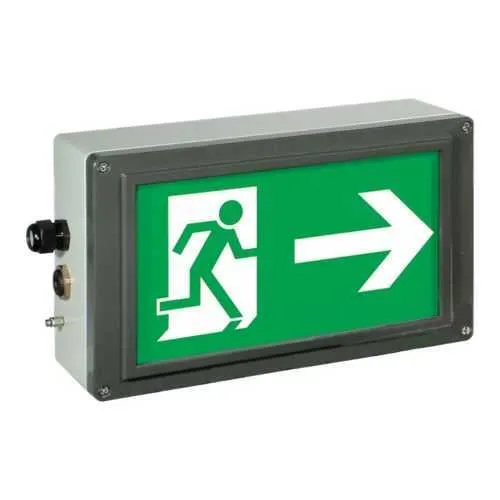

Eaton 12191021001 Exit Sign - IP66 Hazardous Location LED
Part Number: 12191021001
Quick Summary
Ex-Lite V-CG-S exit sign provides clear emergency egress for hazardous-area facilities. In demanding environments, slow or unclear signaling creates safety and regulatory risks. This unit carries IECEx/ATEX certification for Zone 1/2 and Zone 21/22, plus an IP66 rating, underscoring rugged reliability in challenging locations. LED technology reduces energy use and maintenance while a built-in monitoring module supports proactive fault signaling. Its gray aluminum housing, wall-mount design, and DIN 4844-compliant pictogram cover streamline deployment and help ensure consistent compliance across multi-site operations.
Product Information
Extended Description
12191021001 Eaton: Eaton Crouse-Hinds series Ex-Lite V-CG-S exit sign, Arrow right, Gray, LED, White letters, Alum alloy, Wall mt, Cover w/ pictogram (arrow 3h), monitoring, 1 x M25 plastic cable glands, 1 x M25 screw plug, DIN 4844, 220-254 Vac, 195-250 Vdc
Product Name
Eaton's Crouse-Hinds series Ex-Lite V-CG-S exit sign
Catalog Number
12191021001
EAN
4250217412929
Product Length/Depth
422 mm
Product Height
115 mm
Product Width
230 mm
Product Weight
6.4 kg
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX IEC
IECEx/ATEX hazardous rating
Zone 21 Zone 2 Zone 1 Zone 22
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead right
Letter color
White
Trade size
1 x M25 plastic cable glands, 1 x M25 screw plug
Voltage rating
220-254 Vac, 195-250 Vdc
Frequency rating
50/60 Hz
Mounting
Wall
Material
Aluminum alloy
Housing finish color
Gray
Special features
Includes cover with pictogram (arrow 3h), monitoring module
Type
DIN 4844
Feature: LED exit sign with built-in monitoring module. Business Impact: Lower energy consumption and reduced maintenance due to long-life LEDs and real-time fault signaling. Application: Large industrial spaces where uninterrupted egress visibility is critical. Feature: IP66 rated housing in aluminum alloy. Business Impact: Superior dust and water ingress protection, extending service life in harsh environments. Application: Chemical plants, offshore platforms, and other exposed installations. Feature: IECEx/ATEX hazardous area certification for Zones 1, 2, 21, and 22. Business Impact: Enables compliant deployment across global sites with hazardous locations. Application: Oil & gas processing, petrochemical facilities, and power distribution rooms. Feature: Pictogram cover (arrow 3h) and DIN 4844 compatibility. Business Impact: Streamlines regulatory documentation and pictogram standardization, reducing commissioning time. Application: Retrofit projects and cross-site rollouts. Feature: 1 x M25 plastic cable gland, 1 x M25 screw plug. Business Impact: Simplified field wiring and water‑tight enclosure integrity, lowering install time. Application: Wall-mount installations where cable management matters.
Get a Quick Quote for a Eaton 12191021001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 12191021001?
Enquire Now
FAQs
The unit is designed for wall mounting with provisions for 1 x M25 cable gland and a screw plug, simplifying retrofit installs. For compliant wiring in hazardous locations, follow IECEx/ATEX guidelines, use appropriate cable glands, and ensure wiring insulation and clearance meet local codes. The sign’s electrical range supports both 220-254 Vac and 195-250 Vdc at 50/60 Hz, aiding compatibility with existing power supplies.
Model 12191021001 uses LED illumination with a voltage rating of 220-254 Vac and 195-250 Vdc, operating at 50/60 Hz. The unit weighs 6.4 kg and has a length of 422 mm, height 115 mm, and width 230 mm. It includes a monitoring module and a pictogram cover, all housed in an aluminum alloy enclosure finished in gray.
Yes. The Ex-Lite V-CG-S is IECEx/ATEX certified for Zone 1/2 and Zone 21/22 and features IP66 ingress protection, making it appropriate for hazardous locations such as chemical plants, refineries, and offshore platforms. Its robust construction and compliant pictogram cover support safe, compliant egress signage in tough environments.
The sign carries IECEx/ATEX hazardous area certification and is rated IP66 for ingress protection. It supports hazardous/classified location classifications and includes DIN 4844-compatible pictograms. These certifications facilitate global deployment and simplify regulatory documentation during audits and inspections.
LED technology provides long life with lower maintenance costs and fewer lamp replacements. The built-in monitoring module enables proactive fault signaling, reducing unexpected downtime. A durable aluminum housing and standardized mounting simplify installation and retrofits, improving site-wide reliability and potential total cost of ownership in demanding industrial environments.
