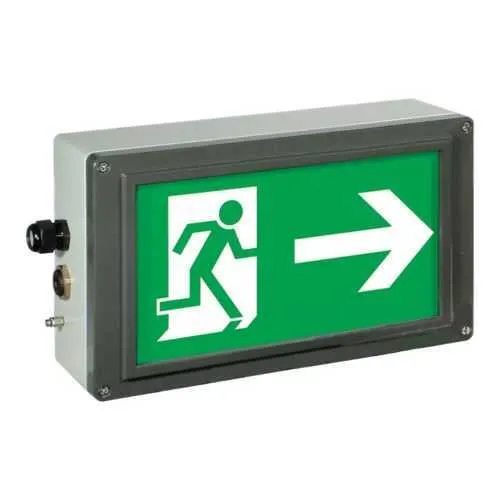

Eaton 12191021002 Ex-Lite V-CG-S Exit Sign - IP66/IECEx
Part Number: 12191021002
Quick Summary
Eaton's Ex-Lite V-CG-S LED exit sign provides reliable egress visibility for hazardous-area facilities. In demanding plants, conventional signs fail from dust ingress, moisture, or poor mounting, jeopardizing compliance during audits. This model carries IECEx/ATEX certification for Zone 1, Zone 2, Zone 21, and Zone 22, plus IP66 protection for rugged environments, ensuring continued operation in harsh conditions. With a wall-mount design and aluminum alloy housing finished in gray, it combines robust construction with clear, white-letter illumination for fast recognition. By leveraging a 220–254 Vac / 50–60 Hz supply and a monitored signaling path, this exit sign delivers consistent performance while reducing maintenance costs and downtime, supporting safer, compliant facilities and streamlined procurement.
Product Information
Extended Description
12191021002 Eaton: Eaton Crouse-Hinds series Ex-Lite V-CG-S exit sign, Arrow left, Gray, LED, White letters, Alum alloy, Wall mt, Cover w/ pictogram (arrow 9h), monitoring, 1 x M25 plastic cable glands, 1 x M25 screw plug, DIN 4844, 220-254 Vac, 195-250 Vdc
Product Name
Eaton's Crouse-Hinds series Ex-Lite V-CG-S exit sign
Catalog Number
12191021002
EAN
4250217412912
Product Length/Depth
422 mm
Product Height
115 mm
Product Width
230 mm
Product Weight
6.4 kg
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 22 Zone 1 Zone 2 Zone 21
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead left
Letter color
White
Trade size
1 x M25 plastic cable glands, 1 x M25 screw plug
Voltage rating
220-254 Vac, 195-250 Vdc
Frequency rating
50/60 Hz
Mounting
Wall
Material
Aluminum alloy
Housing finish color
Gray
Special features
Includes cover with pictogram (arrow 9h), monitoring module
Type
DIN 4844
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Ex-Lite Hazardous Area LED Exit Signs European catalog page
LED illumination delivers long life and low energy consumption, reducing operating costs and extending service intervals in industrial corridors and egress routes. The monitored signaling path provides early fault detection, increasing uptime and compliance during regulatory inspections. The IP66 rating and IECEx/ATEX certification enable safe deployment in Zone 1/2 and Zone 21/22 environments, offering peace of mind for hazardous-area operations. Aluminum alloy housing with a gray finish ensures durable protection against corrosion and impact, ideal for damp or dusty facilities and exterior walls where signs are exposed to harsh conditions. The included pictogram cover (arrow 9h) and integrated monitoring module support reliable path indication and proactive maintenance, lowering total cost of ownership over the asset life. Field wiring is simplified by 1 x M25 plastic cable glands and 1 x M25 screw plug, enabling quick retrofits and compliant installations. Universal voltage input of 220–254 Vac and 50/60 Hz supports integration with standard plant power and control panels, reducing inventory diversity and simplifying procurement across sites.
Get a Quick Quote for a Eaton 12191021002
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 12191021002?
Enquire Now
FAQs
The Ex-Lite V-CG-S is designed for wall mounting with a compatible DIN 4844 interface. It ships with 1 x M25 plastic cable glands and 1 x M25 screw plug for flexible field wiring. The unit operates from 220–254 Vac and 50/60 Hz, and it includes a monitoring module to ensure ongoing signaling integrity in hazardous environments.
This model uses LED illumination with white letters for high-contrast visibility. It measures 422 mm in length, 230 mm wide, and 115 mm high, weighing 6.4 kg. It supports 220–254 Vac / 50–60 Hz and 195–250 Vdc, providing reliable operation across standard industrial power systems.
Yes. The Ex-Lite V-CG-S carries IECEx/ATEX certification for Zone 1, Zone 2, Zone 21, and Zone 22, making it appropriate for both gas/vapor and dust/chemical classifications. It also meets IP66 ingress protection, ensuring durability against dust and jets of water in harsh environments.
The sign is certified IECEx/ATEX for hazardous locations and carries an IP66 rating. It complies with DIN 4844 for sign designation and standard wall-mount installation requirements, supporting safe operation and regulatory compliance in demanding industrial settings.
The LED technology delivers long life with reduced lamp replacements, while the integrated monitoring module detects signaling faults early, decreasing downtime and service costs. A robust aluminum housing and sealed IP66 enclosure minimize corrosion and ingress, extending service intervals and improving total cost of ownership in hazardous-area facilities.
