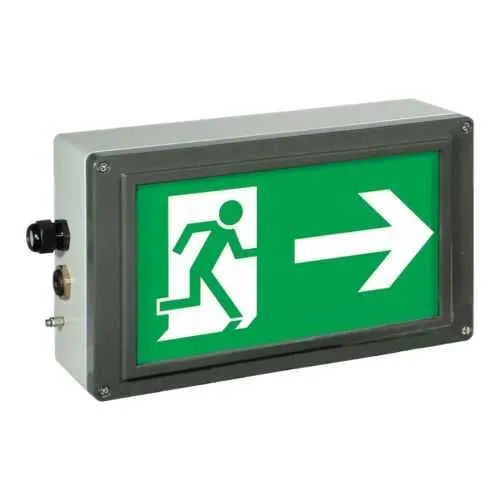

Eaton 12191021003 Ex-Lite V-CG-S Exit Sign - IECEx/IP66
Part Number: 12191021003
Quick Summary
The Eaton 12191021003 Ex-Lite V-CG-S exit sign is a reliable lighting and wayfinding device designed for hazardous locations. In demanding environments, traditional signs can fail due to moisture ingress, dust, or power interruptions, risking unsafe egress. This unit is IECEx/ATEX certified for Zone 1 and Zone 2, and carries IP66 protection, plus zone 21 and 22 coverage, ensuring durable operation where explosive atmospheres may exist. The LED illumination delivers low maintenance and long service life, while the wall-mount design supports quick installation and flexible placement. By combining stringent compliance with energy-efficient performance, it supports your safety program and reduces total cost of ownership for industrial facilities, chemical plants, and offshore operations.
Product Information
Extended Description
12191021003 Eaton: Eaton Crouse-Hinds series Ex-Lite V-CG-S exit sign, Arrow down, Gray, LED, White letters, Alum alloy, Wall mt, Cover with pictogram (arrow 6h), monitoring, 1 x M25 plastic cable glands, 1 x M25 screw plug, DIN 4844, 220-254 Vac, 195-250 Vdc
Product Name
Eaton's Crouse-Hinds series Ex-Lite V-CG-S exit sign
Catalog Number
12191021003
EAN
4250217412905
Product Length/Depth
422 mm
Product Height
115 mm
Product Width
230 mm
Product Weight
6.4 kg
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX IEC
IECEx/ATEX hazardous rating
Zone 1 Zone 2 Zone 22 Zone 21
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead downwards
Letter color
White
Trade size
1 x M25 plastic cable glands, 1 x M25 screw plug
Voltage rating
220-254 Vac, 195-250 Vdc
Frequency rating
50/60 Hz
Mounting
Wall
Material
Aluminum alloy
Housing finish color
Gray
Special features
Includes cover with pictogram (arrow 6h), monitoring module
Type
DIN 4844
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Ex-Lite Hazardous Area LED Exit Signs European catalog page
LED technology delivers long life and low energy consumption, reducing maintenance intervals and total cost of ownership for continuous operation in hazardous areas. Feature → Business Impact → Application: LED lamp type provides high reliability and low power draw, improving facility uptime and lowering energy costs in petrochemical plants and mining sites. IP66 ingress protection ensures robust dust and water sealing, minimizing downtime from environmental exposure and simplifying washdown procedures in manufacturing and offshore facilities. IECEx/ATEX certification for Zone 1, Zone 2, Zone 21, and Zone 22 guarantees regulatory compliance, supporting safety case approvals and reducing risk during audits in oil & gas terminals and chemical plants. Wall mounting and aluminum alloy housing deliver durable installation in harsh environments, enabling quick retrofits and cleanroom-adjacent areas to maintain standardized egress signage. The included pictogram cover with monitoring module provides visual status and automatic fault signaling, enhancing maintenance planning and compliance reporting for industrial operators. The design accommodates 1 x M25 plastic cable gland and 1 x M25 screw plug, offering flexible cabling options for 220-254 Vac and 195-250 Vdc supplies at 50/60 Hz, aiding integration with existing power infrastructure and emergency power systems. Overall, the Ex-Lite V-CG-S supports standardized exit signage with reliable performance, helping facilities meet NFPA/IEC requirements while simplifying procurement with a single, compliant solution for hazardous locations.
Get a Quick Quote for a Eaton 12191021003
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 12191021003?
Enquire Now
FAQs
Installation should be performed by qualified personnel following local codes. Mount the unit on a suitable wall, connect to 220-254 Vac or 195-250 Vdc supply, and use the 1 x M25 gland and 1 x M25 plug as provided. Ensure the monitoring module is properly engaged and test the pictogram cover for visibility. Verify IP66 sealing after mounting and confirm IECEx/ATEX compliance for Zone 1/2 and Zone 21/22.
The Ex-Lite V-CG-S carries IECEx/ATEX certifications and is rated for hazardous locations in Zone 1, Zone 2, Zone 21, and Zone 22. It also features IP66 ingress protection, ensuring robust dust and water resistance in demanding industrial settings, such as chemical plants, oil & gas facilities, and offshore platforms.
Yes. It uses LED technology for reliable emergency illumination with long service life, specifically designed for hazardous-area applications. Its IP66 enclosure and IECEx/ATEX certification support compliance with strict safety standards, making it suitable for Zone 1/2 and Zone 21/22 settings while reducing maintenance needs.
The unit is wall-mounted with an overall footprint of 422 mm (length) by 230 mm (width) by 115 mm (height) and weighs 6.4 kg. Its durable aluminum alloy housing in gray is designed for harsh environments, and the design accommodates 1 x M25 cable gland and 1 x M25 screw plug to simplify installation.
The Ex-Lite V-CG-S supports 220-254 Vac and 195-250 Vdc input with 50/60 Hz compatibility. It includes a monitoring module, a pictogram cover (arrow 6h), and a wall-mount configuration. The unit is designed for flexible cabling via one M25 gland and a plug, enabling straightforward integration into existing power architecture.
