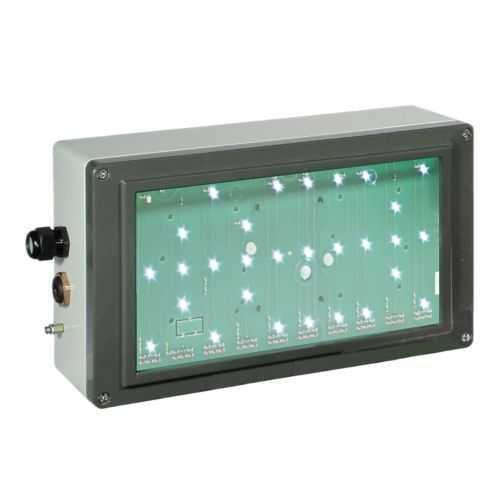

Eaton 12191021004 Exit Sign - IECEx/ATEX IP66 Certified
Part Number: 12191021004
Quick Summary
Eaton Ex-Lite V-CG-S exit sign provides reliable egress indication for hazardous locations. In demanding environments, installers face challenges with visibility, durability, and compliance; this unit is designed to endure harsh conditions while remaining easy to install. It carries IECEx/ATEX certifications for Zone 1, Zone 21, Zone 2, and Zone 22, plus IP66 protection, supporting safe operation in dusty, wet, and explosive atmospheres. The LED efficiency and ISO 7010 alignment deliver long-term cost savings, predictable maintenance, and consistent signaling. With a wall-mount design and integrated monitoring module, contractors gain a robust solution that reduces downtime and ensures compliant egress signage across facilities.
Product Information
Extended Description
12191021004 Eaton: Eaton Crouse-Hinds series Ex-Lite V-CG-S exit sign, LED, Aluminum alloy, Wall mount, Includes cover, clear, without pictogram, monitoring module, 1 x M25 plastic cable glands, 1 x M25 screw plug, ISO 7010, 220-254 Vac, 195-250 Vdc
Product Name
Eaton's Crouse-Hinds series Ex-Lite V-CG-S exit sign
Catalog Number
12191021004
EAN
4250217412899
Product Length/Depth
422 mm
Product Height
115 mm
Product Width
230 mm
Product Weight
6.4 kg
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 1 Zone 21 Zone 2 Zone 22
Ingress protection (IP) ratings
IP66
Lamp type
LED
Trade size
1 x M25 plastic cable glands, 1 x M25 screw plug
Voltage rating
220-254 Vac, 195-250 Vdc
Frequency rating
50/60 Hz
Mounting
Wall
Material
Aluminum alloy
Special features
Includes cover, clear, without pictogram, monitoring module
Type
ISO 7010
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Ex-Lite Hazardous Area LED Exit Signs European catalog page
Feature → Business Impact → Application: LED lamp type delivers high efficiency and long life, reducing energy use and maintenance cycles in hazardous locations such as chemical plants and refineries; this translates to lower total cost of ownership for hazard-zone signage. Feature → IP66 ingress protection provides dust-tight enclosure and water resistance, improving reliability in wet, dusty, or washdown-heavy areas, ideal for Zone 1/21 environments. Feature → IECEx/ATEX certification for Zones 1, 21, 2, and 22 ensures regulatory compliance and safety, enabling deployment in explosion-hazard zones without compromise. Feature → Wall mounting simplifies retrofits and new installations along corridor exits, accelerating project timelines and reducing installation costs. Feature → Monitoring module offers fault detection and status visibility, supporting proactive maintenance and uptime; Feature → clear cover and included fittings (1 x M25 glands, 1 x M25 plug) streamline cable entry, enhancing installation quality and reliability. Feature → ISO 7010 compliance ensures standard pictograms and clear messaging, aligning with global safety communication practices while the unit ships without a pictogram by default.
Get a Quick Quote for a Eaton 12191021004
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 12191021004?
Enquire Now
FAQs
The Ex-Lite V-CG-S is designed for wall mounting in Zone 1/21 environments with IECEx/ATEX certification and IP66 protection. It ships with a clear cover, one M25 cable gland, and a plug, plus a monitoring module for fault detection. Use proper enclosure and wiring methods per IECEx/ATEX guidelines to ensure ongoing compliance and reliable signaling.
Model 12191021004 uses LED illumination and supports 220-254 Vac or 195-250 Vdc input, with a 50/60 Hz frequency rating. The unit weighs 6.4 kg and has wall-mounting geometry, 422 mm length, 230 mm width, and 115 mm height, making it suitable for retrofit or new installations in hazardous areas.
Yes. The Ex-Lite V-CG-S is rated for Zone 1 and Zone 21, as well as Zone 2 and Zone 22 per IECEx/ATEX standards, enabling safe egress signaling in explosive atmospheres. Its IP66 rating adds protection against dust and water ingress in challenging environments.
Certifications include IECEx/ATEX for hazardous locations, ISO 7010 for standardized pictograms, and IP66 for ingress protection. These credentials mean the sign is engineered and tested for explosive atmospheres, supports compliant safety communication, and tolerates tough industrial conditions without compromising visibility.
LED illumination delivers long life with lower energy use, reducing replacement and operating costs over time. The built-in monitoring module enables proactive maintenance, decreasing fault-related downtime. In hazardous facilities, this translates to improved system availability and a lower total cost of ownership for emergency signage.
