Eaton 12191021021 Ex-Lite V-CG-S Exit Sign - IP66/IECEx/ATEX
Part Number: 12191021021
Quick Summary

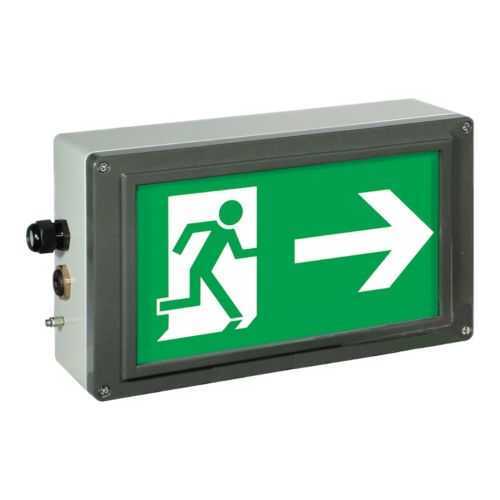

Eaton's Ex-Lite V-CG-S exit sign delivers reliable visibility in hazardous locations. Facility teams often struggle with signs that degrade in harsh conditions or fail to meet evolving electrical and safety codes. With IECEx/ATEX certifications for Zones 1/2 and 21/22 and an IP66 rating, this unit meets global standards. Its LED efficiency and durable wall-mount design help reduce energy costs and maintenance while delivering compliant, clearly visible egress in challenging industrial environments. The built-in pictogram cover and monitoring module further support uptime by detecting faults before they impact safety. For procurement teams, the 422 mm length and sturdy aluminum housing balance performance with serviceability across diverse facilities, from chemical plants to offshore platforms.
Product Information
Extended Description
12191021021 Eaton: Eaton Crouse-Hinds series Ex-Lite V-CG-S exit sign, Arrow right, Gray, LED, White letters, Alum alloy, Wall mt, Cover with pictogram (arrow 3h), monitoring, 1 x M25 plastic cable gland, 1 x M25 screw plug, ISO 7010, 220-254 Vac, 195-250 Vdc
Product Name
Eaton's Crouse-Hinds series Ex-Lite V-CG-S exit sign
Catalog Number
12191021021
EAN
4251958106849
Product Length/Depth
422 mm
Product Height
115 mm
Product Width
230 mm
Product Weight
6.4 kg
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX IEC
IECEx/ATEX hazardous rating
Zone 22 Zone 21 Zone 2 Zone 1
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead right
Letter color
White
Trade size
1 x M25 plastic cable glands, 1 x M25 screw plug
Voltage rating
220-254 Vac, 195-250 Vdc
Frequency rating
50/60 Hz
Mounting
Wall
Material
Aluminum alloy
Housing finish color
Gray
Special features
Includes cover with pictogram (arrow 3h), monitoring module
Type
ISO 7010
LED illumination delivers high efficiency and long life, reducing energy consumption and maintenance cycles in busy facilities. This translates to lower operating costs and fewer service interruptions on critical escape routes in hazardous areas. The Ex-Lite V-CG-S is well suited for long corridors and plant exits where consistent brightness is essential for safe egress and regulatory compliance. IECEx/ATEX certifications for Zones 1/2 and 21/22, plus IP66 protection, provide robust protection against dust, water, and hazardous environments, giving maintenance teams confidence during inspections and audits. The aluminum alloy wall-mount housing with a gray finish offers durable performance without adding excessive weight, enabling straightforward installation on structural walls in harsh facilities. Included cover with ISO 7010 pictograms and a monitoring module support proactive fault detection, reducing unscheduled downtime and strengthening safety programs. Pre-fitted M25 glands and a plug streamline field connections, speeding up commissioning and minimizing runtime costs for industrial projects.
Get a Quick Quote for a Eaton 12191021021
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 12191021021?
Enquire Now
FAQs
Installation begins with wall mounting on a suitable support in Zone 1/2 or Zone 21/22 areas. Use the provided M25 glands and plug for field connections, connect to a 220-254 Vac supply at 50/60 Hz, and ensure the unit is wired per IECEx/ATEX guidelines. Verify IP66 ingress protection and verify the pictogram cover aligns with ISO 7010 standards. After mounting, run a functional test to confirm monitoring module operation and visibility along the designated egress path.
The 12191021021 Ex-Lite V-CG-S carries IECEx/ATEX certifications suitable for Zone 1 and Zone 2 hazardous locations, as well as Zone 21 and Zone 22 classifications for dust-exposed areas. It also meets ISO 7010 for pictograms and an IP66 rating for robust protection against dust and water ingress, ensuring reliable operation in harsh industrial settings.
The sign supports a wide input voltage range of 220-254 Vac and 195-250 Vdc, with a frequency rating of 50/60 Hz. This versatility makes it compatible with most industrial power systems, reducing the need for multiple variants and simplifying procurement for projects with mixed electrical environments.
Yes. The Ex-Lite V-CG-S is designed for wall mounting with an IP66 rating, which provides strong protection against dust and water ingress. Its aluminum housing and gray finish are intended for demanding environments, making it suitable for outdoor or exposed indoor applications where hazardous-location compliance and durable visibility are required.
LED technology delivers longer life and lower energy consumption compared with traditional lamps, reducing ongoing maintenance and replacement costs. The integrated monitoring module helps detect faults early, minimizing downtime. Its rugged construction and certified safety credentials support lower overall risk and a faster return on investment through improved reliability and regulatory compliance in hazardous locations.
