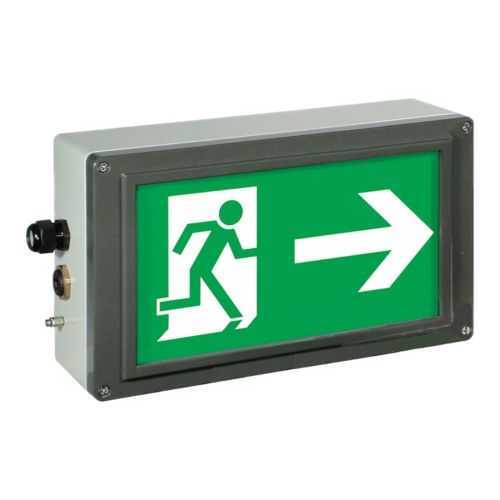

Eaton 12191021022 Exit Sign - IECEx/ATEX Hazardous Locations
Part Number: 12191021022
Quick Summary
Eaton's Ex-Lite V-CG-S exit sign provides reliable emergency guidance for hazardous locations. In harsh industrial environments, delayed signaling or dim illumination can lead to safety gaps and downtime. This unit carries IECEx/ATEX certifications for Zone 1/21/22 approvals, IP66 ingress protection, and ISO 7010 pictograms, ensuring regulatory compliance and clear visibility in challenging conditions. With LED efficiency, universal voltage options, and a rugged aluminum housing, it lowers maintenance costs while delivering dependable egress signaling. Ideal for OEMs and end users needing robust hazardous-area signage with easy installation and long service life.
Product Information
Extended Description
12191021022 Eaton: Eaton Crouse-Hinds series Ex-Lite V-CG-S exit sign, Arrow left, Gray, LED, White letters, Alum alloy, Wall mt, Cover with pictogram (arrow 9h), monitoring, 1 x M25 plastic cable glands, 1 x M25 screw plug, ISO 7010, 220-254 Vac, 195-250 Vdc
Product Name
Eaton's Crouse-Hinds series Ex-Lite V-CG-S exit sign
Catalog Number
12191021022
EAN
4251958106856
Product Length/Depth
422 mm
Product Height
115 mm
Product Width
230 mm
Product Weight
6.4 kg
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 1 Zone 22 Zone 2 Zone 21
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead left
Letter color
White
Trade size
1 x M25 plastic cable glands, 1 x M25 screw plug
Voltage rating
220-254 Vac, 195-250 Vdc
Frequency rating
50/60 Hz
Mounting
Wall
Material
Aluminum alloy
Housing finish color
Gray
Special features
Includes cover with pictogram (arrow 9h), monitoring module
Type
ISO 7010
Feature LED lamping delivers bright, energy-efficient exit signaling with extended life, reducing maintenance cycles and operating costs for industrial facilities. Business Impact The result is lower total cost of ownership and fewer lamp replacements in hard-to-reach or hazardous zones. Application Suitable for wall-mounted applications in hazardous locations where reliable visibility is critical, such as chemical plants and offshore facilities. Feature ISO 7010 compliant pictogram with arrow left ensures standardized wayfinding across sites, improving safety training outcomes. Business Impact Consistent pictogram clarity supports quick evacuation decisions and regulatory alignment during audits. Application Use in environments requiring IECEx/ATEX approval to meet Zone 1, Zone 21, Zone 22 classifications, minimizing risk of non-compliance penalties. Feature IP66 enclosure protects against dust and water ingress, preserving performance in tough environments. Business Impact Enhanced reliability and reduced maintenance downtime in outdoor or harsh indoor locations. Application Includes monitoring module for status visibility and fault alerts, enabling proactive maintenance. Feature Wall-mount design with aluminum alloy housing and gray finish provides durable, corrosion-resistant installation. Business Impact Long service life in corrosive environments and simplified retrofits or replacements. Application Package includes 1 x M25 plastic cable glands and 1 x M25 screw plug, improving installation flexibility and sealing integrity. Feature 50/60 Hz compatibility and 220-254 Vac or 195-250 Vdc input support universal electrical integration. Business Impact Streamlined integration with existing power systems and reduced control wiring complexity. Application Overall, the Ex-Lite V-CG-S combines rugged robustness with certification-driven compliance for hazardous-area signage that stays legible and dependable over time.
Get a Quick Quote for a Eaton 12191021022
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 12191021022?
Enquire Now
FAQs
The Ex-Lite V-CG-S is designed for wall mounting in Zone 1/21/22 environments and accepts universal input in the 220-254 Vac range or 195-250 Vdc. It includes M25 glands and a monitoring module, allowing straightforward integration with field wiring and status signaling. Its rugged aluminum housing and IP66 rating ensure durability, while IECEx/ATEX certification confirms regulatory compatibility in hazardous locations.
This unit carries IECEx/ATEX certifications and Zone classifications, plus IP66 protection, which standard signs lack. The LED lamping provides long life with low maintenance, and the pictogram conforms to ISO 7010, ensuring clear guidance even in dusty or damp conditions. The monitoring module adds proactive fault alerts, enhancing uptime and safety audits in challenging environments.
Installation is simplified by a wall-mount configuration and included hardware such as 1 x M25 plastic cable glands and 1 x M25 screw plug. The housing is aluminum alloy with a gray finish, offering corrosion resistance and durability in industrial settings. Ensure the supply is within 220-254 Vac or 195-250 Vdc and follow IECEx/ATEX guidelines for Zone 1/21/22 environments.
Yes, the unit supports 50/60 Hz operation with 220-254 Vac or 195-250 Vdc, accommodating common international electrical systems. It includes a monitoring module for status feedback, enabling remote or local monitoring of the sign’s health and signaling integrity, which helps reduce unplanned maintenance and improves safety reliability.
The sign combines durable construction, IECEx/ATEX compliance, IP66 protection, and long-life LED lighting to minimize replacements and maintenance across the asset life. Its monitoring capability reduces downtime by enabling proactive servicing, while ISO 7010 pictograms improve evacuation efficiency. Together, these factors deliver lower lifecycle costs and improved regulatory compliance for industrial facilities.
